Rear Door: WATERSHIELD: Removal

Remove door trim panel. (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
NOTE: Care must be taken when routing electrical wiring & cables thorough access holes to prevent tearing of liner material.
Route wiring, window switch, and remote handle cables through watershield.
Pull courtesy light wiring through watershield.
Peel watershield away from adhesive around perimeter of inner door panel. See Fig 1.
Remove watershield.

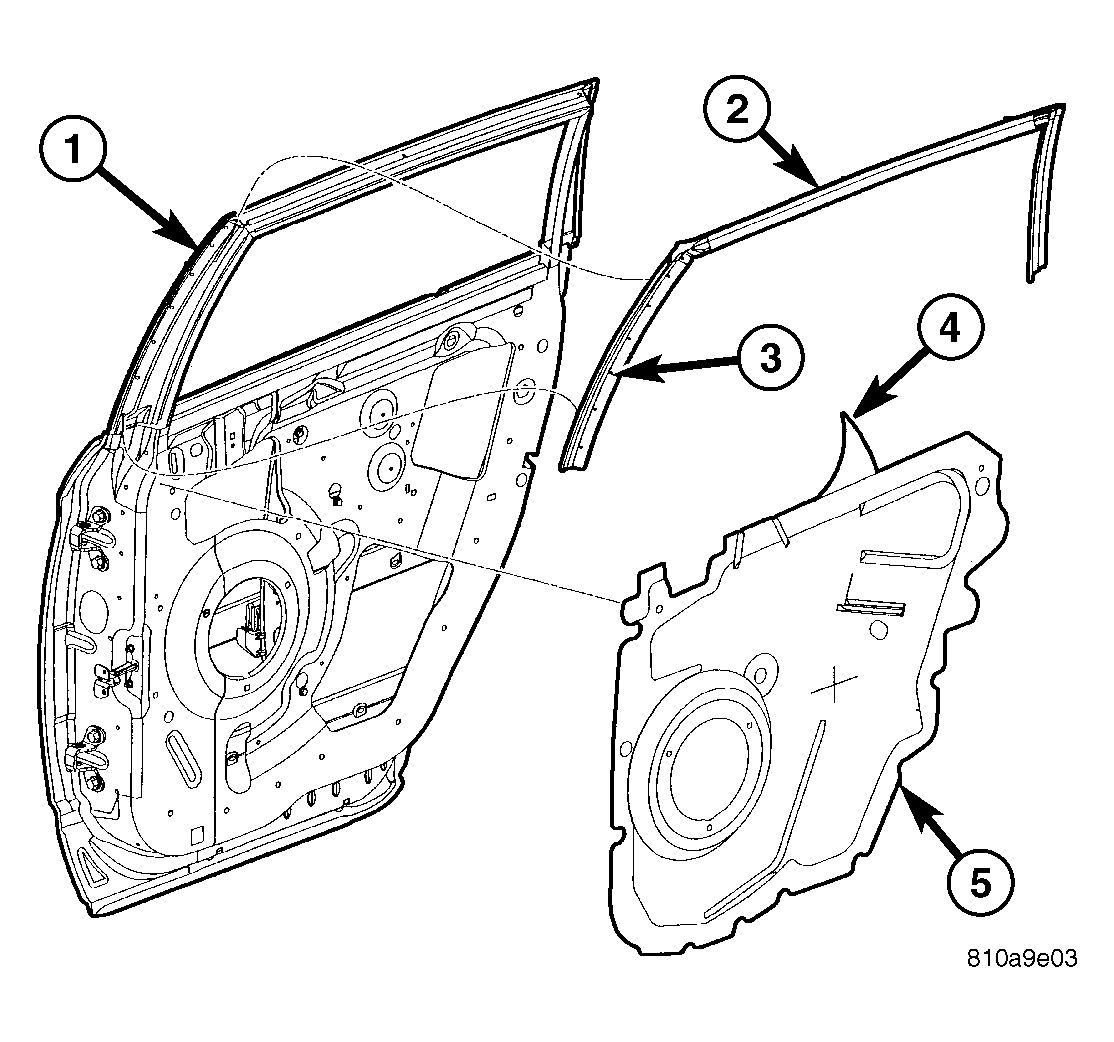

Fig 1: DOOR WATERSHIELD

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR ASSEMBLY

2 - DOOR HEADER WEATHERSTRIP

3 - PUSH PINS ATTACHING WEATHERSTRIP

4 - PAPER BACKING

5 - DOOR WATERSHIELD
