Body - Interior & Exterior: Exterior: Silencer: Removal

1. Hoist and support vehicle on safety stands, as necessary.
2. Remove front wheel.
3. Remove front wheelhouse splash shield. (Refer to BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - REMOVAL) .
4. Reach into wheelhouse area between the cowl side and fender, pull silencer out. See Fig 1.
5. Remove silencer from vehicle.

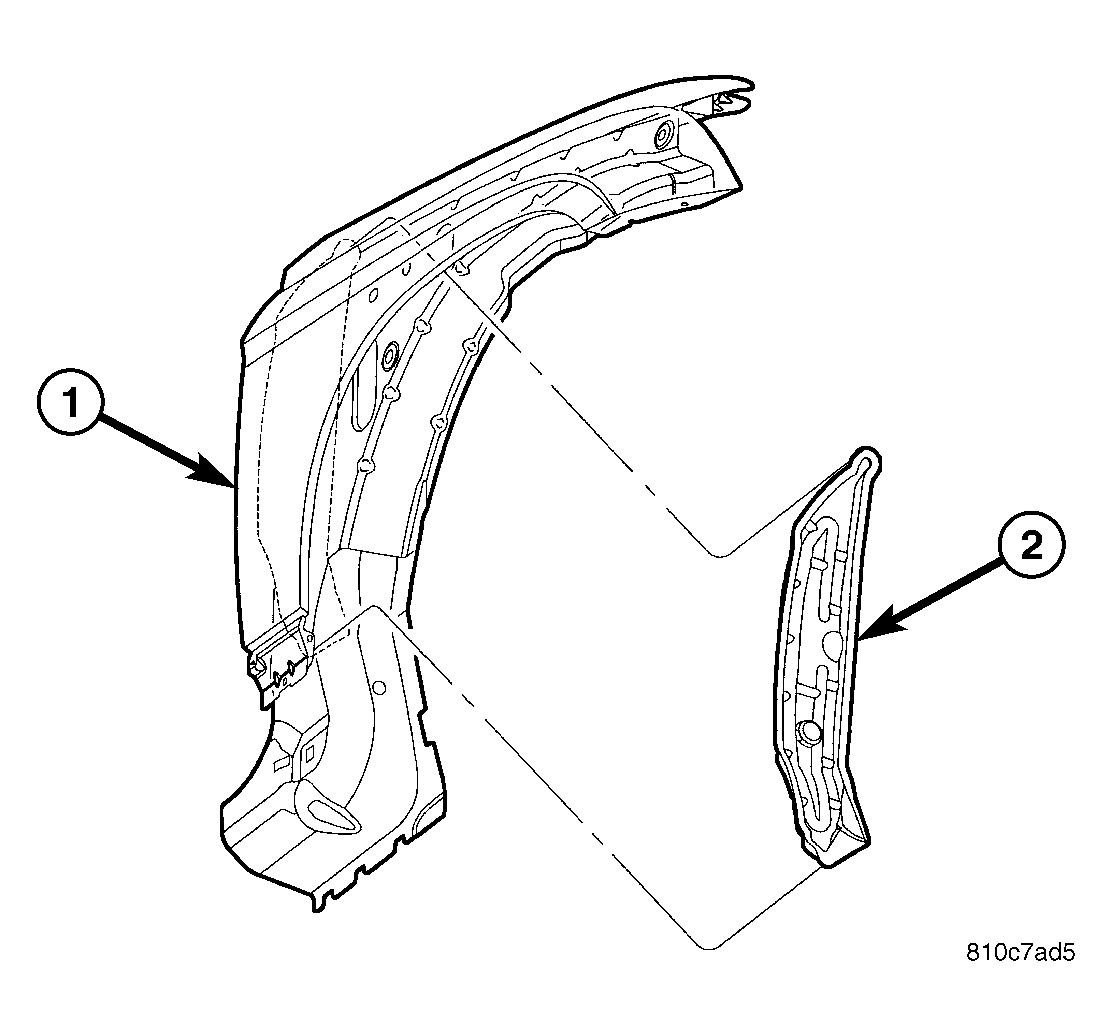

Fig 1: COWL SIDE TO FENDER SILENCER

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT FENDER

2 - COWL SIDE TO FENDER SILENCER
