Rear Wheelhouse Splash Shield: Removal

Hoist and support vehicle on safety stands, as necessary.
Remove rear wheel.
Remove screw attaching rear wheelhouse splash shield to cladding. See Fig 1.
Remove four push pin fasteners attaching splash shield to inner wheelhouse.
Remove two push pin fasteners attaching rear splash shield to rear fascia aperture bracket. (Refer to FRAME & BUMPERS/REAR FASCIA APERTURE BRACKET - REMOVAL) .
Remove splash shield from vehicle.

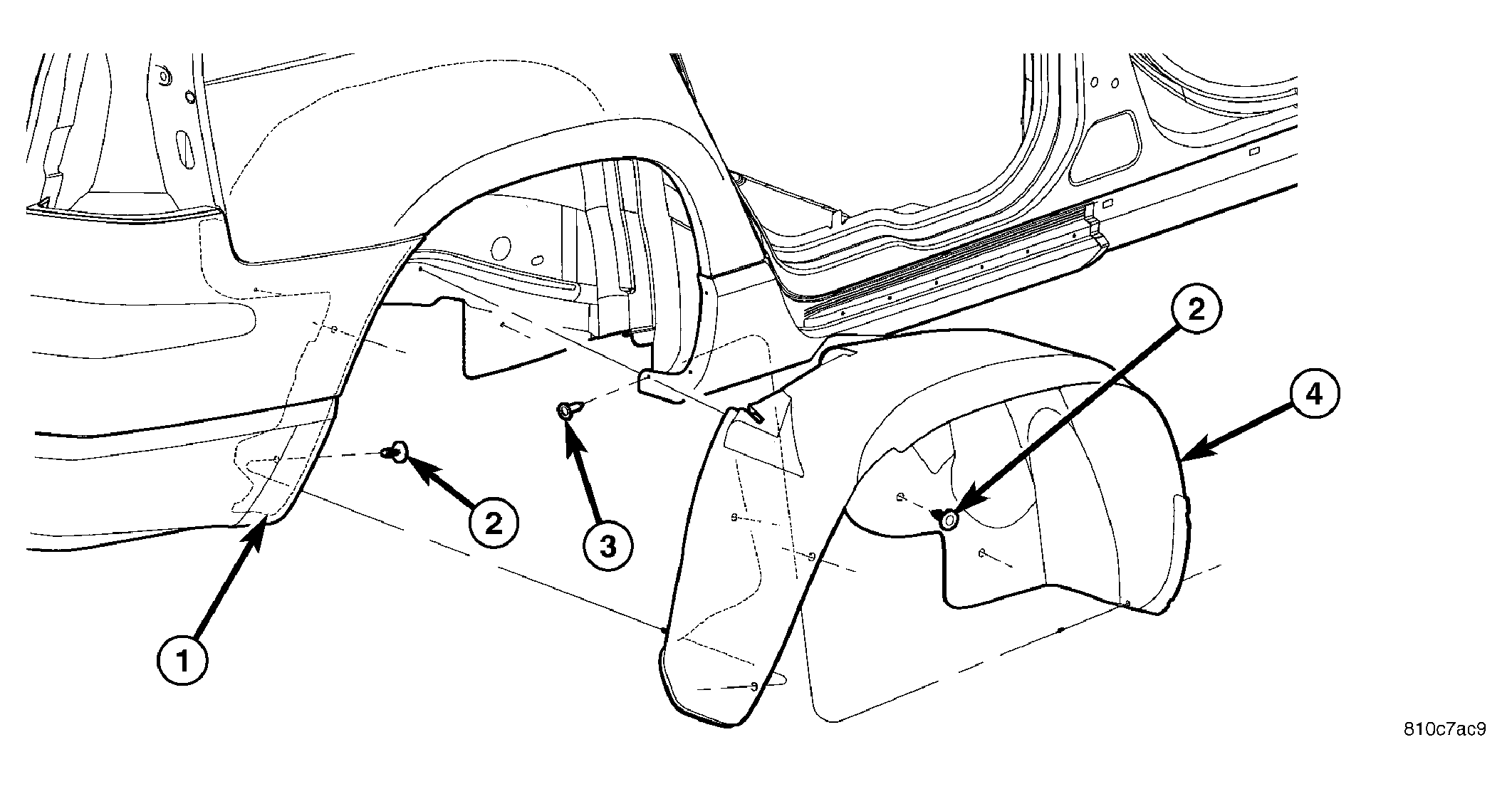

Fig 1: REAR WHEELHOUSE SPLASH SHIELD

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR FASCIA ATTACHING BRACKET

2 - PUSH PIN(S)

3 - CLADDING TO REAR SPLASH SHIELD SCREW(S)

4 - REAR WHEELHOUSE SPLASH SHIELD
