Rear Fascia To Aperture Bracket: Removal

1. Remove rear fascia. (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL) .
2. Remove two push pins on each side attaching splash shield to rear fascia aperture bracket.
3. Remove rear fascia bracket to aperture panel (left or right side).

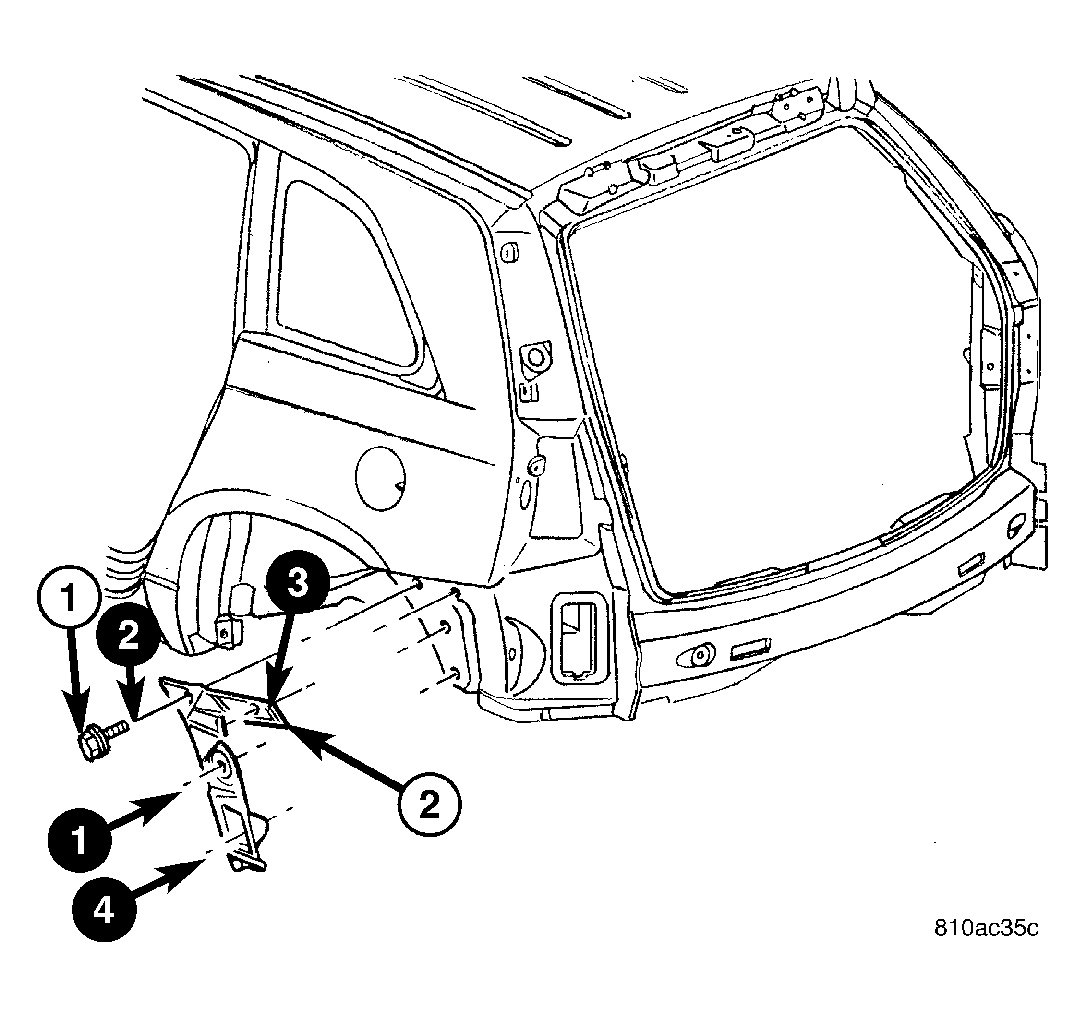

Fig 1: Rear Fascia To Aperture Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREWS

2 - REAR FASCIA BRACKET
