Cowl Grille Screen: Removal

  1. Remove wiper arms (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
  2. Open hood.
  3. Remove screws attaching right cowl grille screen. See Fig 1.
  4. Remove right cowl grille screen from vehicle.
  5. Remove screws attaching left cowl grille screen.
  6. Remove left cowl grille screen from vehicle.

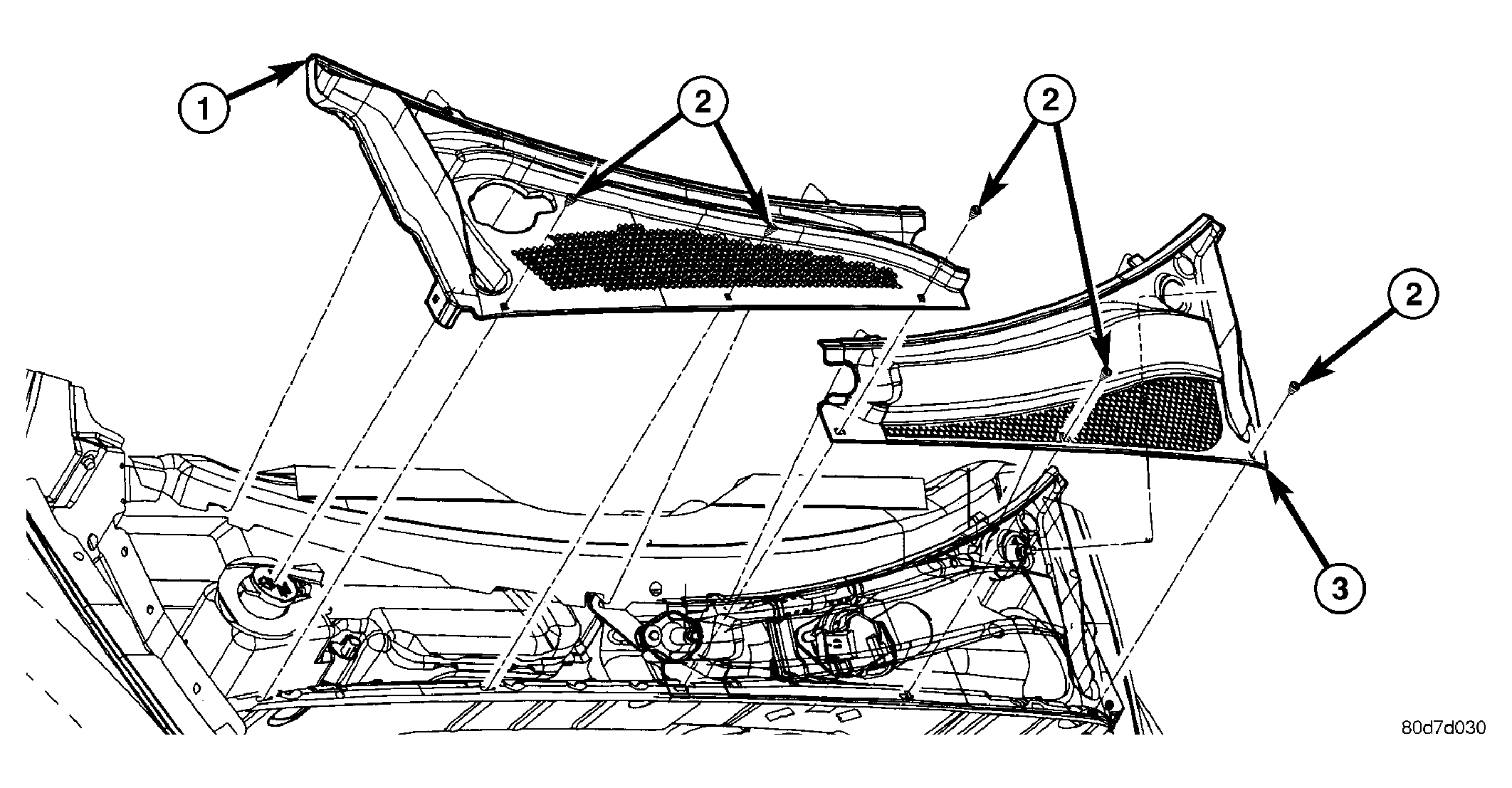

Fig 1: COWL GRILLE SCREEN
GC0022343Courtesy of DAIMLERCHRYSLER CORP.
1 - RIGHT COWL GRILLE SCREEN
2 - ATTACHING SCREWS
3 - LEFT COWL GRILLE SCREEN
