Automatic Day / Night Mirror: Removal

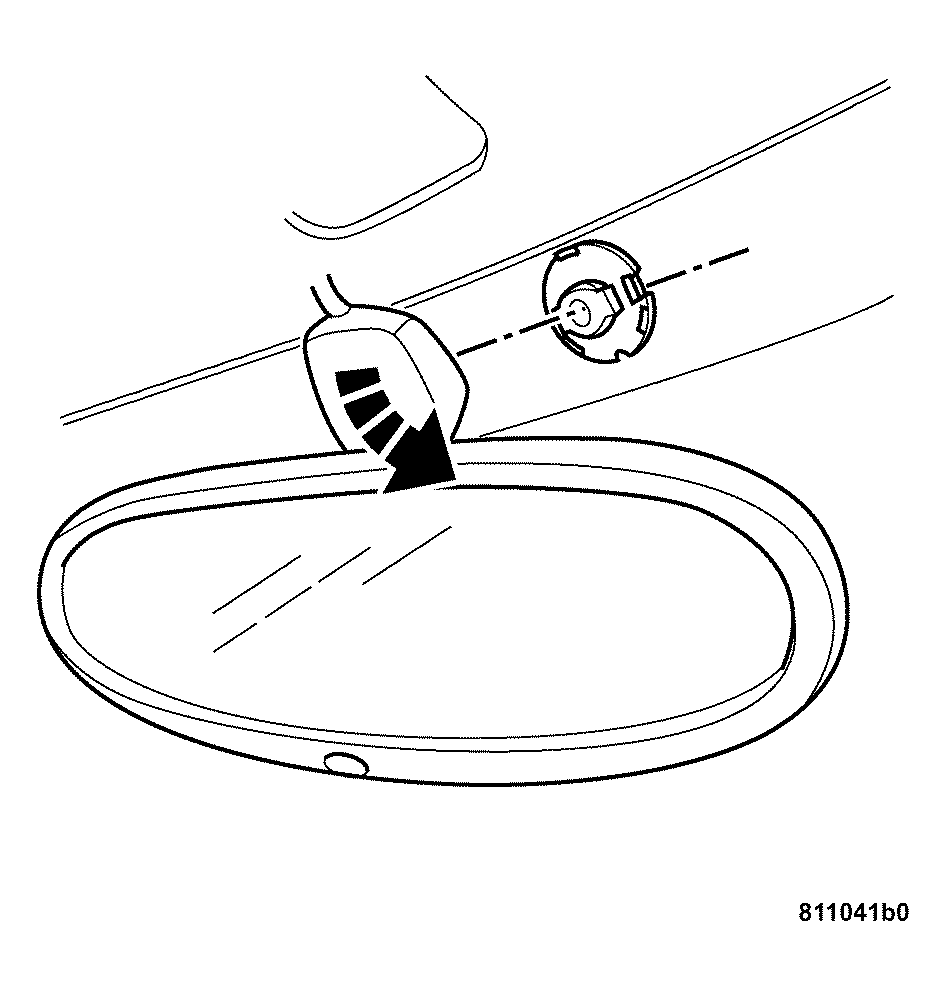

Fig 1: Rotating Mirror Base

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the negative battery cable.
2. Insert a 5 mm metal dowel into the hole on the windshield side of the mirror base.
3. Rotate the mirror base approximately 90 degrees to the left or right.
4. Remove the courtesy lamp. (Refer to ELECTRICAL/LAMPS/LIGHTING - INTERIOR/COURTESY LAMP SWITCH - REMOVAL) .
5. Disconnect the mirror harness connector.
6. Feed the harness connector and harness past the opening in the headliner and remove the mirror assembly.
