Courtesy Lamp Switch/Unit: Removal

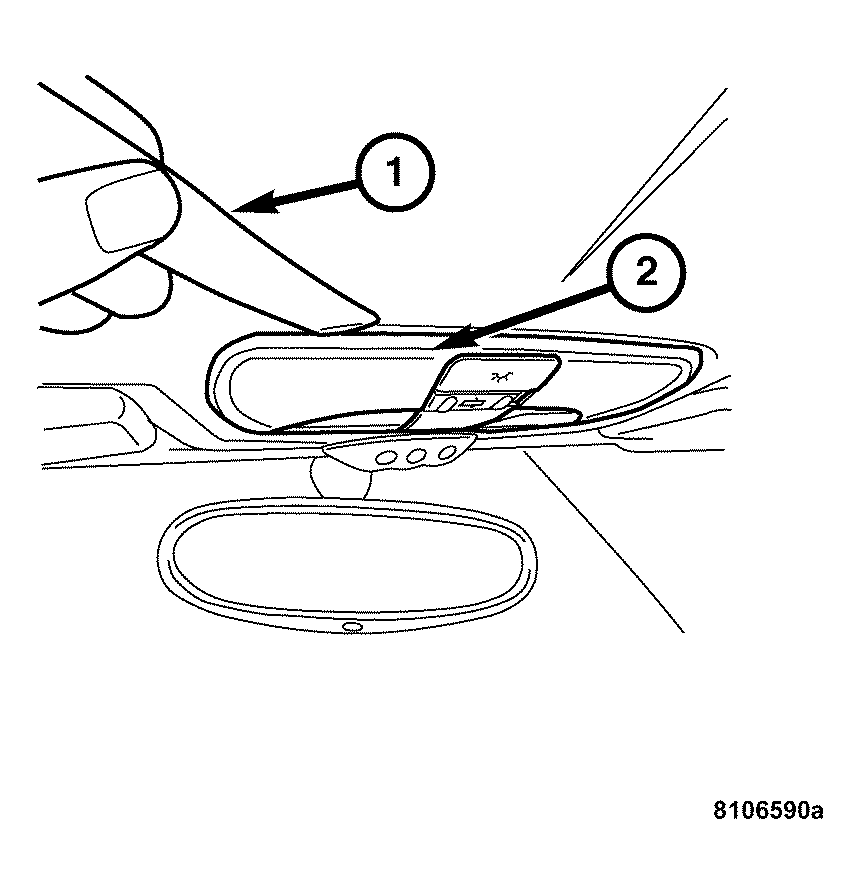

Fig 1: Releasing Lens Cover

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Using a trim stick (1), gently pry down and away from the courtesy lamp switch/unit body (2) to release the lens cover.

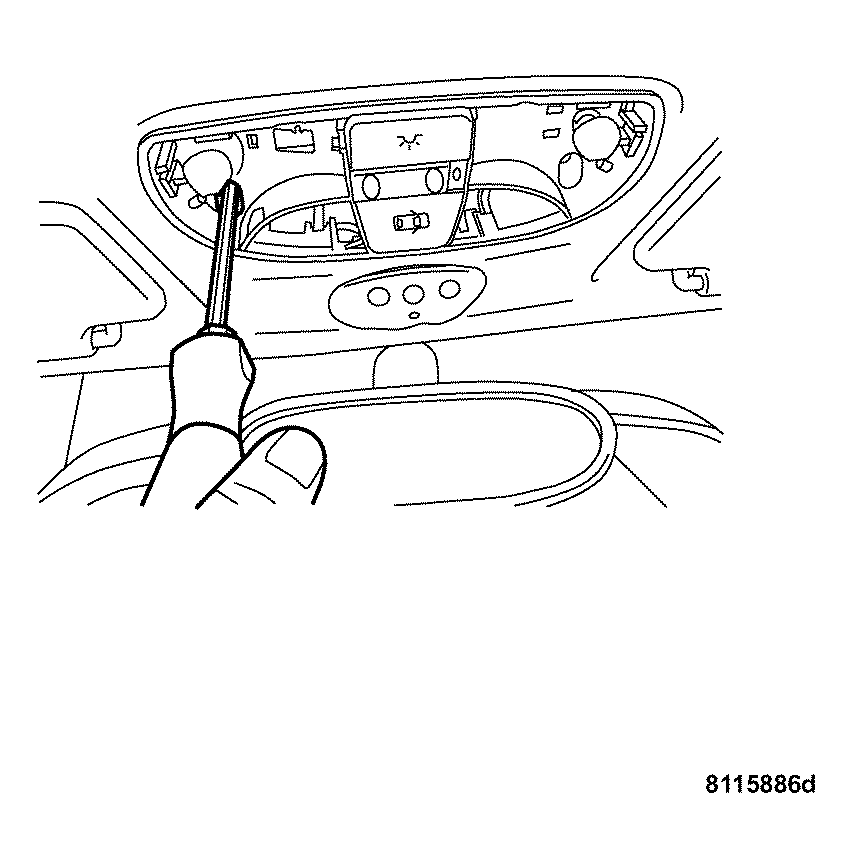

Fig 2: Removing Retaining Screws
Courtesy of DAIMLERCHRYSLER CORP.
Remove the retaining screws.
Using a trim stick, gently pry and lower the courtesy lamp switch/unit from the headliner opening.
Disconnect the courtesy lamp switch/unit harness connector and remove from the vehicle.
