Washer Fluid Level Switch: Removal

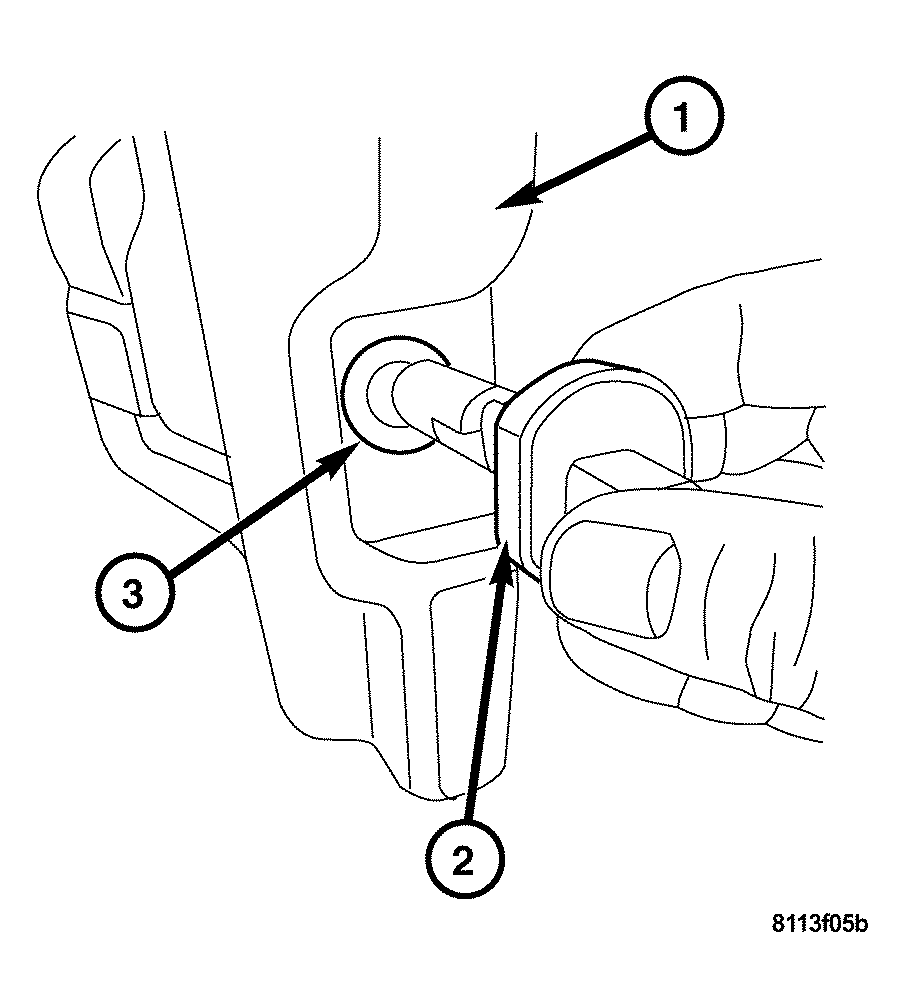

Fig 1: Removing/Installing Washer Fluid Level Switch
GC0035800Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the washer reservoir. (Refer to ELECTRICAL/WIPERS/WASHERS/WASHER RESERVOIR - REMOVAL)
  2. Gently pry outward on the body of the washer fluid level switch (2) and pull it away from the rubber grommet (3).
  3. Remove the washer fluid level switch (2) from the washer reservoir (1).
