Washer Reservoir: Removal

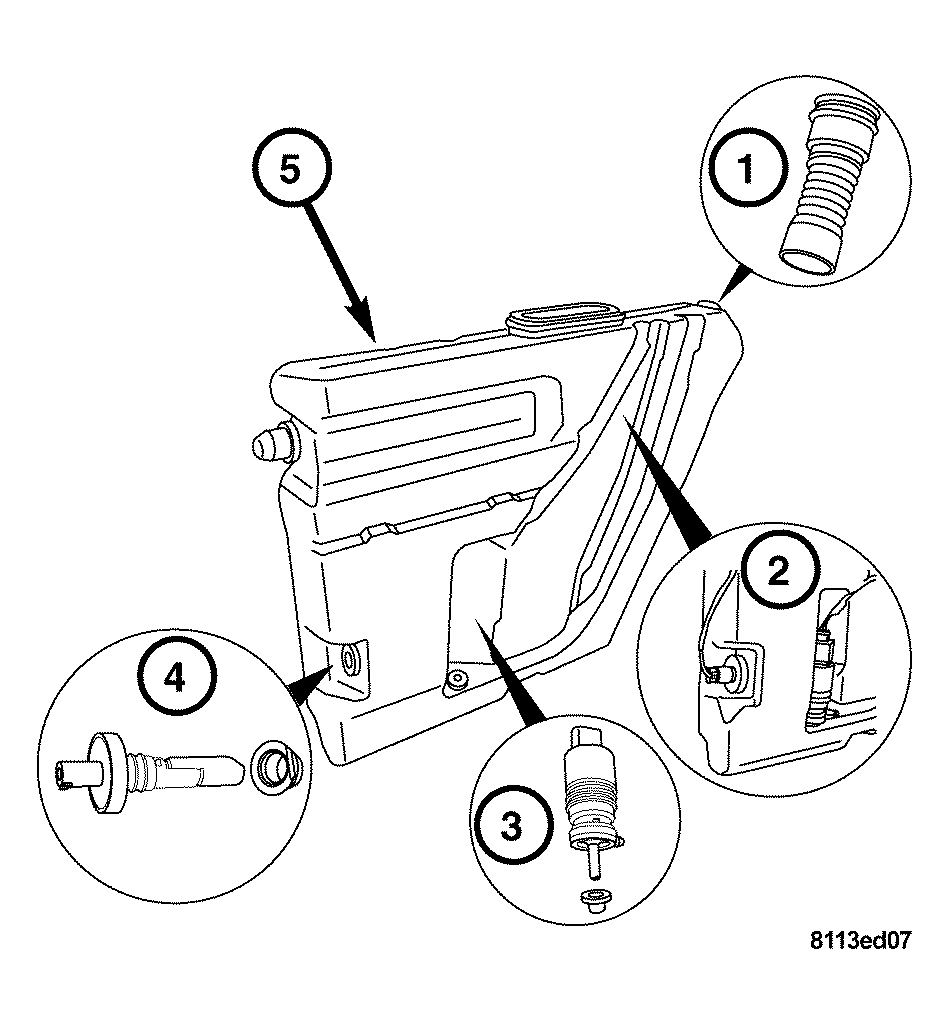

Fig 1: Disconnecting/Connecting Washer Fluid Level Switch & Washer Pump Motor
GC0035813Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the rear half of the right front inner fender liner.
  3. Disconnect the washer fluid level switch (4) harness connector.
  4. Disconnect the washer pump motor harness connector (3).
  5. Remove the washer pump motor supply hose from the washer pump motor (3).

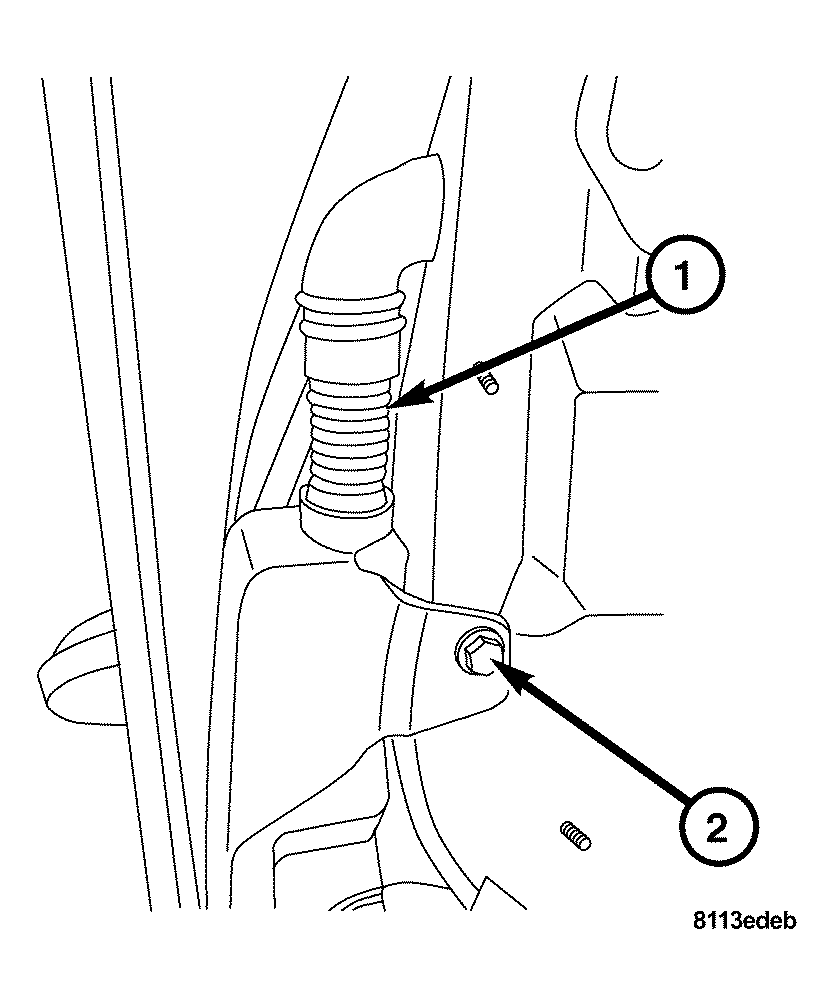

    Fig 2: Identifying Washer Fluid Filler Tube & Washer Reservoir Attachment Bolt
    GC0035814Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the washer fluid filler tube (1) from the washer reservoir.
  7. Remove the washer reservoir attachment bolt (2).
  8. Carefully pull the washer reservoir forward to release the rubber mounting grommets.
  9. Remove the washer reservoir from behind the right front wheel.
