Sunroof Module Assembly: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move glass panel to the fully closed position.
  2. Disconnect battery negative cable.
  3. Recline both front seats.
  4. Remove sunroof opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
  5. Remove control switch. (Refer to BODY/SUNROOF/CONTROL SWITCH) .
  6. Disconnect wire harness.
  7. Remove headliner
  8. Disconnect the drain tubes from sunroof housing.
  9. Loosen fasteners attaching sunroof module assembly. See Fig 1.
  10. With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel.

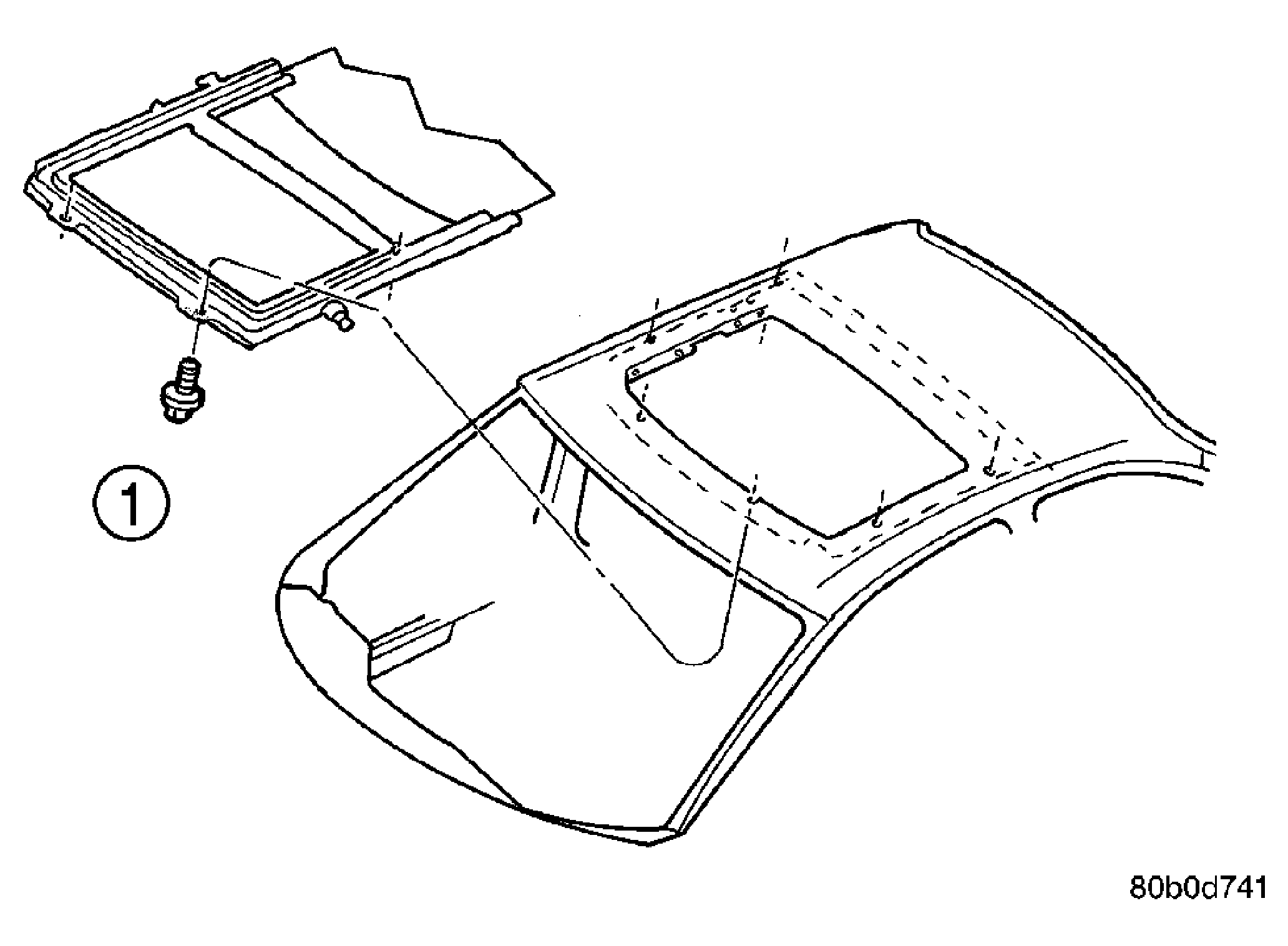

Fig 1: Sunroof Module Assembly
GC0031540Courtesy of DAIMLERCHRYSLER CORP.
1 - (6) SCREWS
