Opening Trim Lace: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove lace by starting at the joint and pull one end of the lace away from the headliner until the entire lace is removed. See Fig 1.

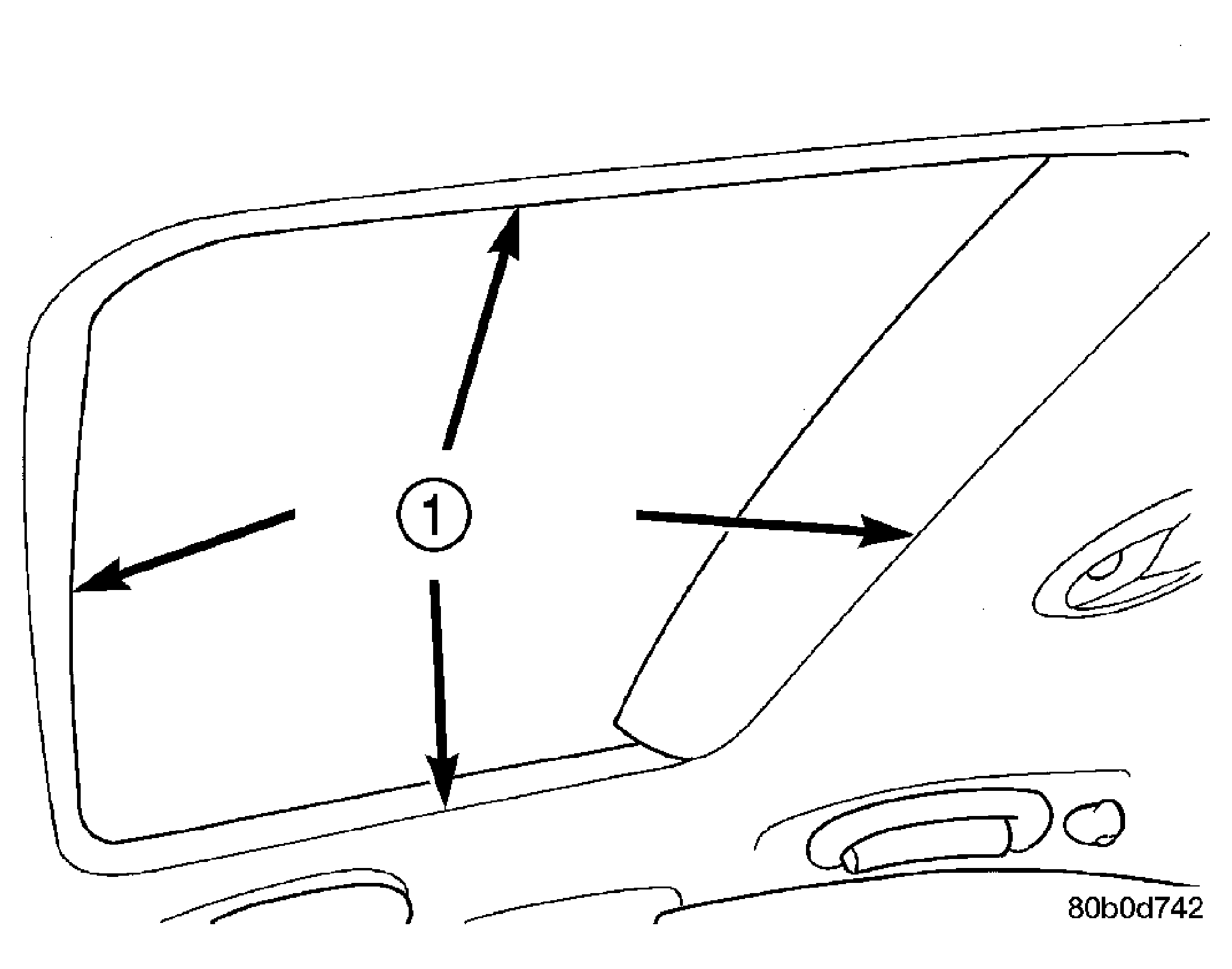

Fig 1: Sunroof Opening Trim Lace
GC0031541Courtesy of DAIMLERCHRYSLER CORP.
1 - OPENING TRIM LACE
