Front Hoses

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Move glass panel to the fully closed position.
Remove sunroof opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
Disconnect the control switch and wire connector.
Remove headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
Disconnect the drain hose from the sunroof housing. See Fig 1.
Drain any liquid from hose connection, if necessary.
Attach new drain hose to old hose with tape that is to be replaced.
Work the old hose back and forth to loosen the sealer.
Pull the old hose out through the bottom and the new hose through.

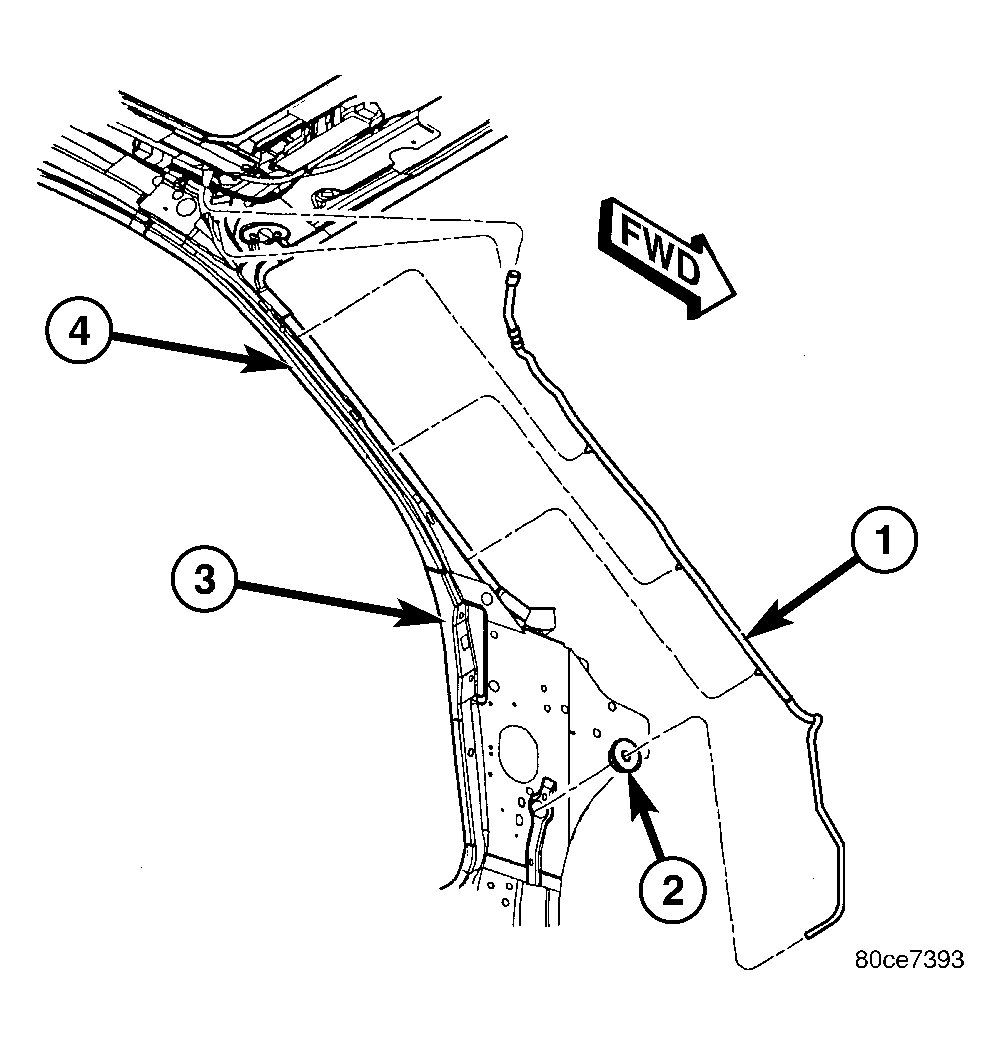

Fig 1: Front Drain Hose

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DRAIN TUBE

2 - DRAIN TUBE GROMMET

3 - COWL SIDE PANEL

4 - WINDSHIELD OPENING SIDE OUTER FRAME
