A-Pillar Trim: Removal: Notes
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door opening weatherstrip along the A-pillar. (Refer to BODY/WEATHERSTRIP/SEALS/DOOR OPENING WEATHERSTRIP - REMOVAL)

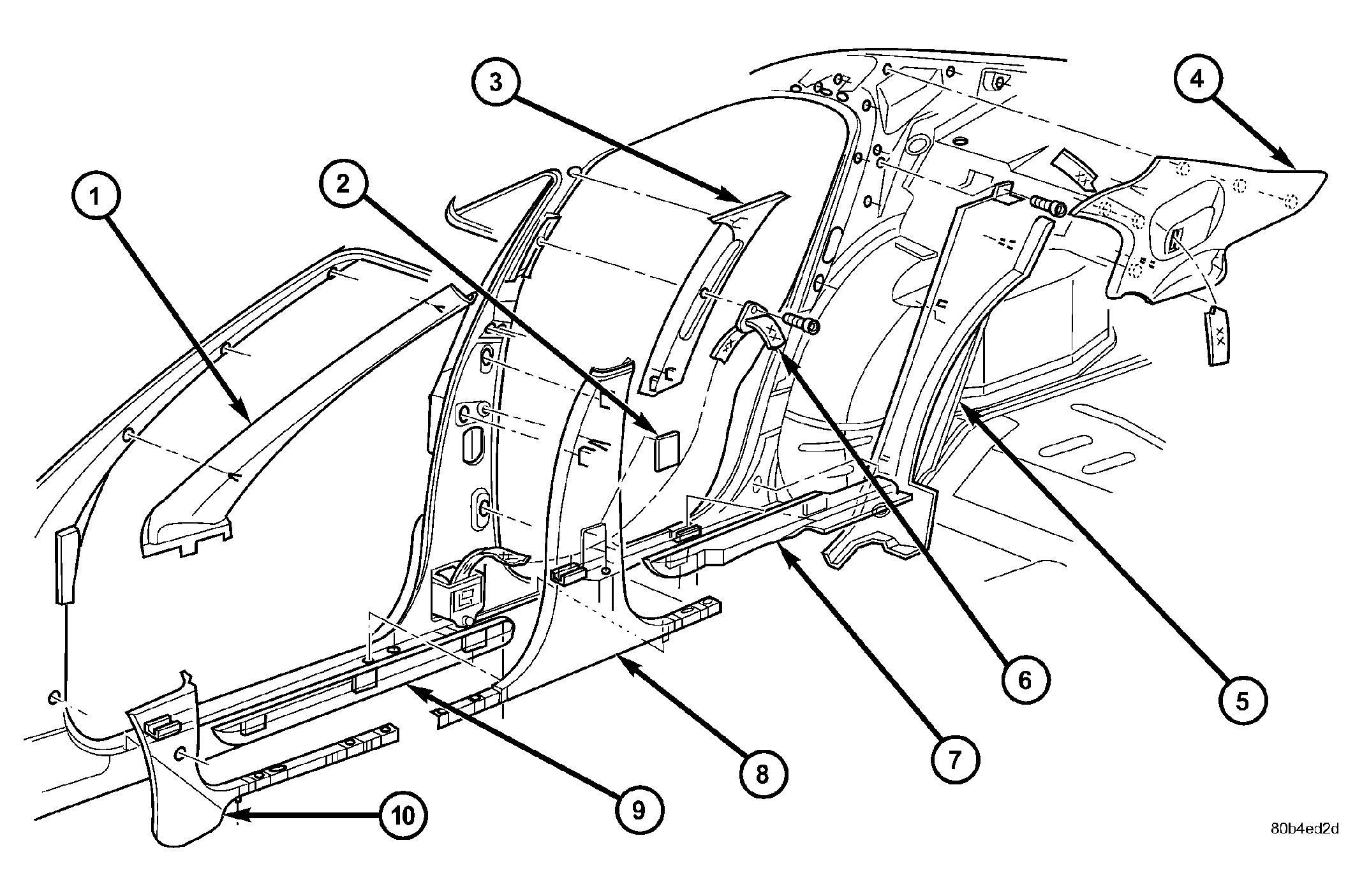

- Disengage clips attaching A-pillar trim to A-pillar. See Fig 1.
- Remove A-pillar trim from vehicle.
| 1 - A-PILLAR TRIM |
| 2 - BEZEL - B-PILLAR LOWER |
| 3 - UPPER B-PILLAR TRIM |
| 4 - UPPER QUARTER TRIM |
| 5 - LOWER QUARTER TRIM |
| 6 - SEAT BELT |
| 7 - SCUFF PLATE |
| 8 - LOWER B-PILLAR TRIM |
| 9 - SCUFF PLATE |
| 10 - COWL TRIM |
