Door Opening Trim Welt: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Using trim stick, special tool C-4755, remove one end of door opening trim welt from door opening flange.

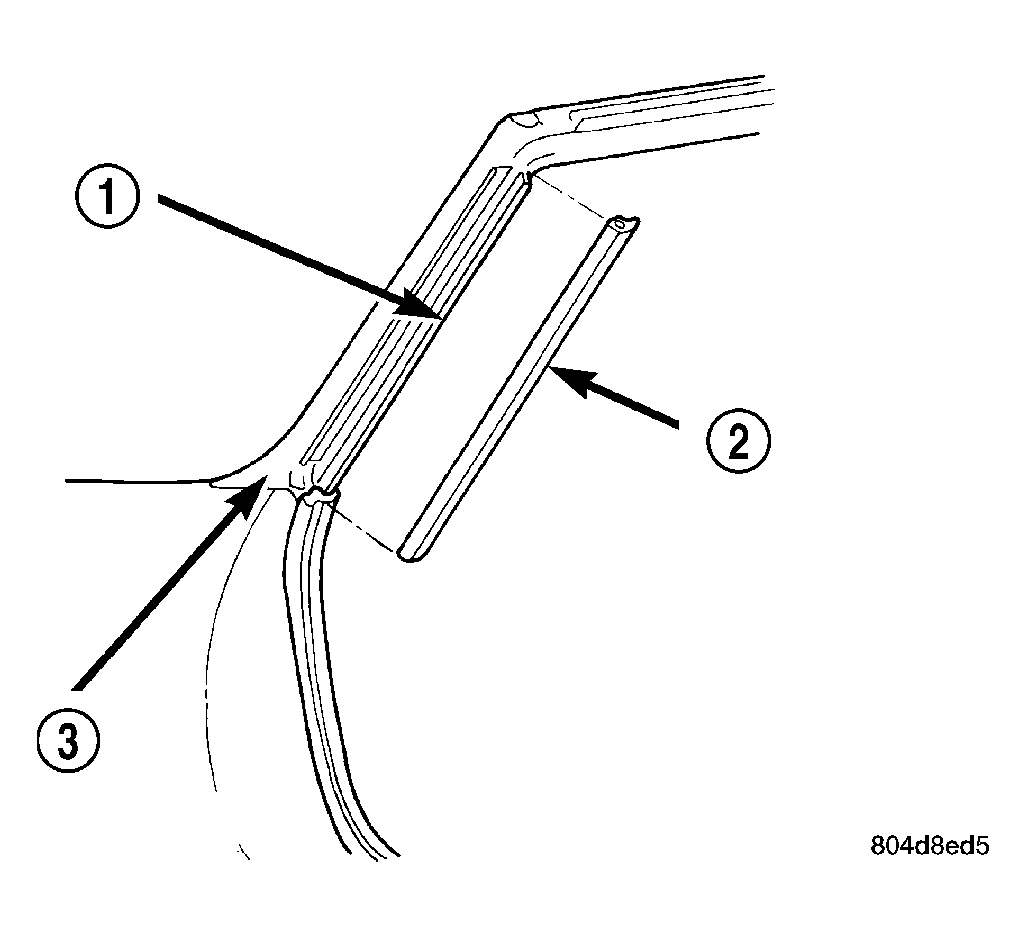

- Remove welt from vehicle. See Fig 1.
| 1 - DOOR OPENING FLANGE |
| 2 - DOOR OPENING TRIM WELT |
| 3 - HEADER A-PILLAR WEATHERSTRIP |
