Right Instrument Panel Trim Bezel: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

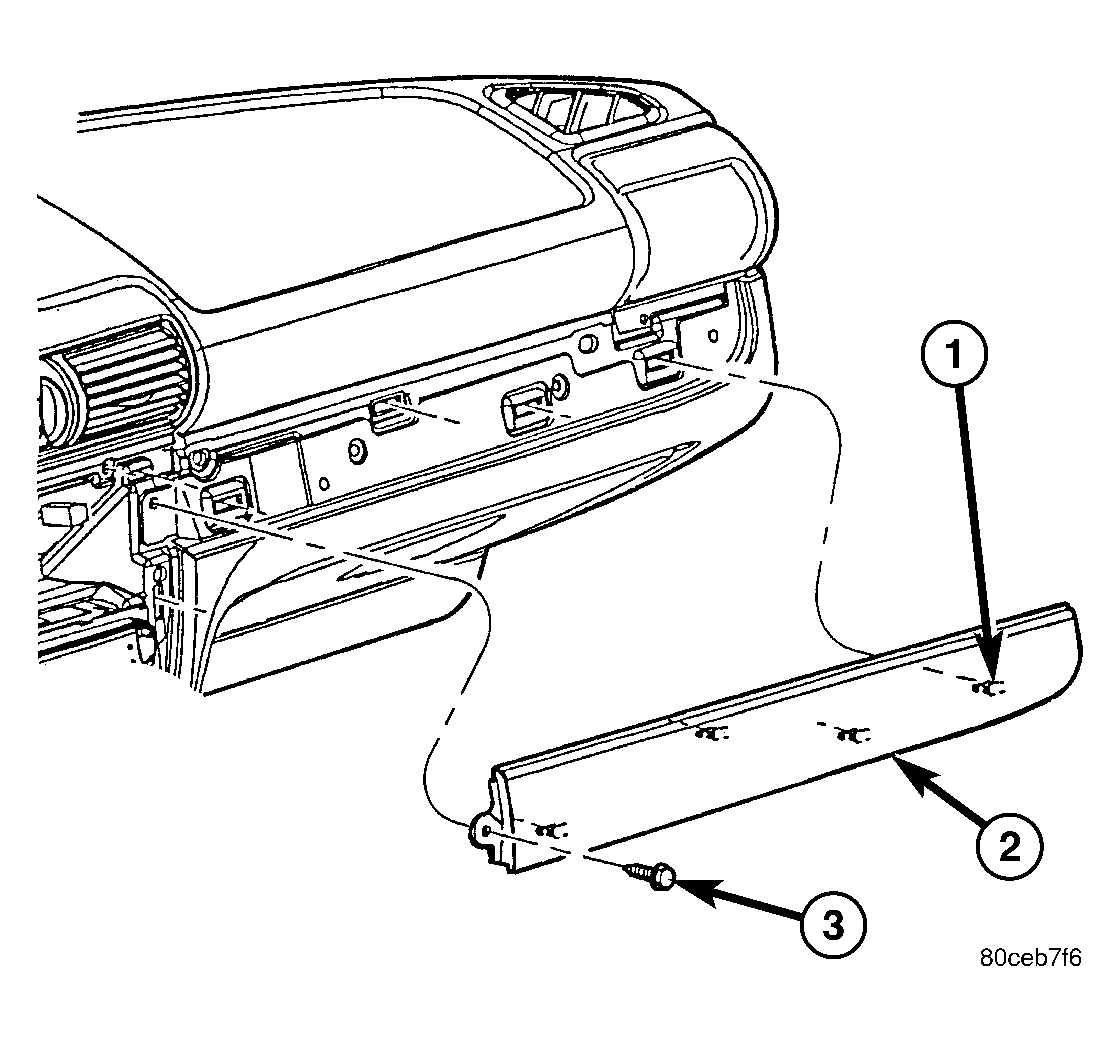

  1. Position the right instrument panel trim bezel over retaining slots and firmly snap into place. See Figure.
  2. Install the one retaining screw located on the right side of the center stack, behind the center bezel.
  3. Install the instrument panel center bezel. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
