Instrument Panel Center Bezel: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The HVAC control is mounted to the instrument panel center bezel. If replacing the center bezel or the HVAC control, it must be removed from the center bezel. Remove the six retaining screws to the HVAC control.

  1. Connect the wire connectors to the HVAC control.

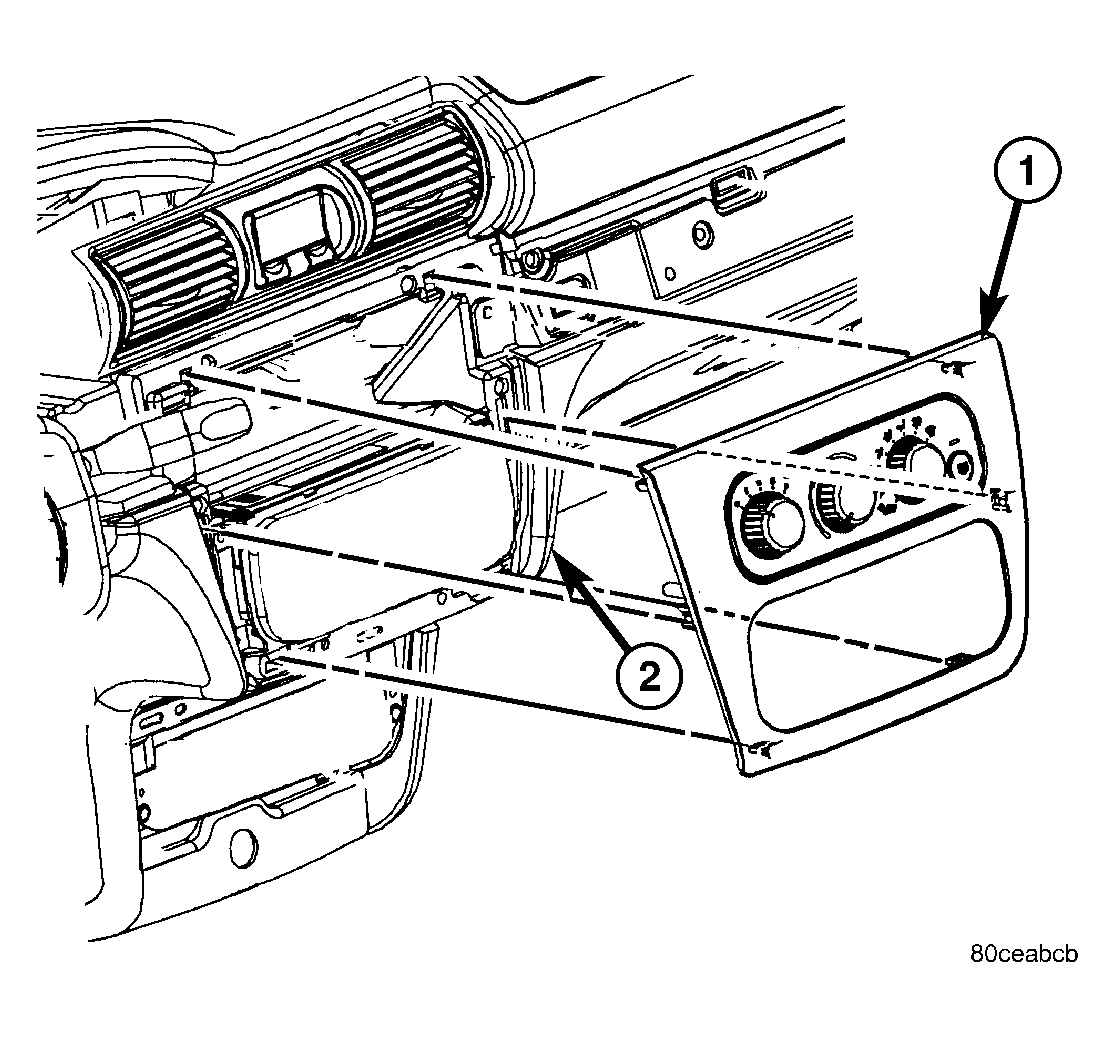

  2. Position the center bezel over the retaining slots and firmly snap the instrument panel center bezel into place. See Figure.
  3. Connect the battery negative remote cable.
