Instrument Panel Inboard Bezel: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

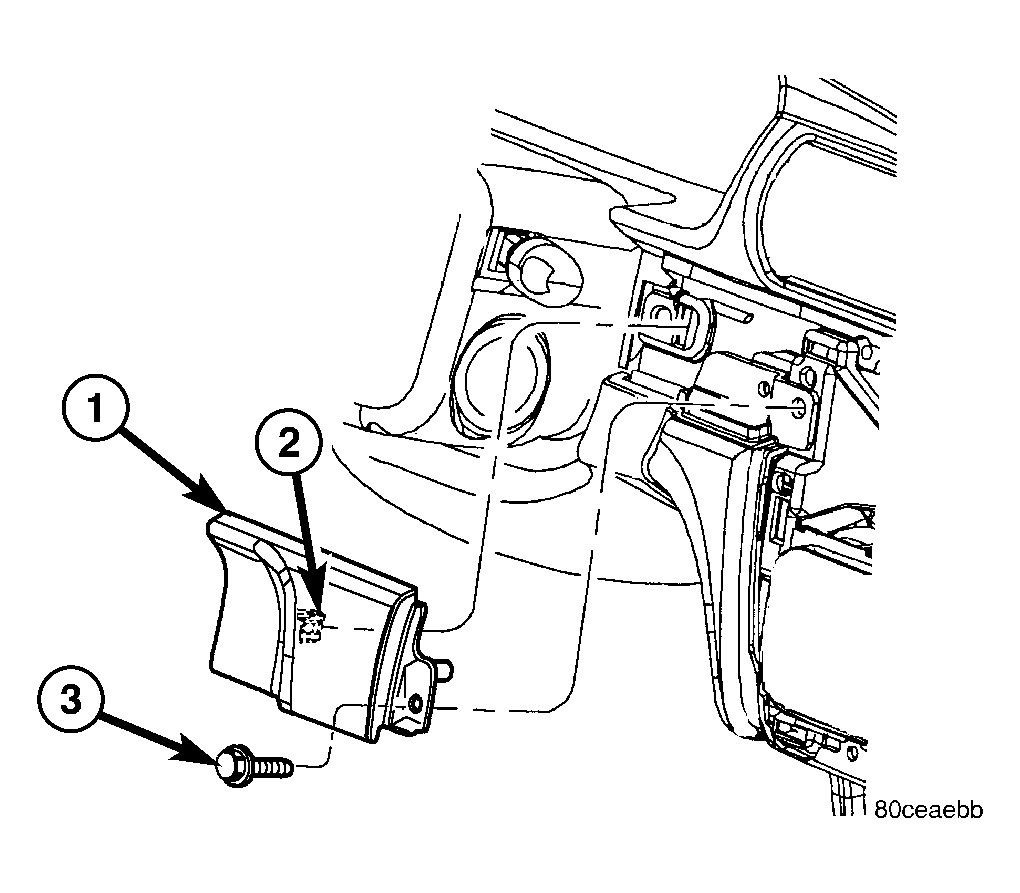

  1. Position the instrument panel inboard bezel over the retaining slots and firmly snap into place. See Figure.
  2. Install the one retaining screw located on the left side of the center stack, behind the center bezel.
  3. Install the instrument panel center bezel. Refer to INSTALLATION  .
