Latch Release Cable: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove hood latch (Refer to BODY/HOOD/LATCH - REMOVAL) .
- Remove left front cowl trim panel.
- Remove screws attaching hood release handle to inner cowl panel. See Fig 1.
- Release clips attaching hood release cable to left inner frame rail. See Fig 2.
- Disengage rubber grommet at lower dash panel.
- Disengage push-in fastener attaching hood release cable to dash panel.
- Remove hood release cable from vehicle.

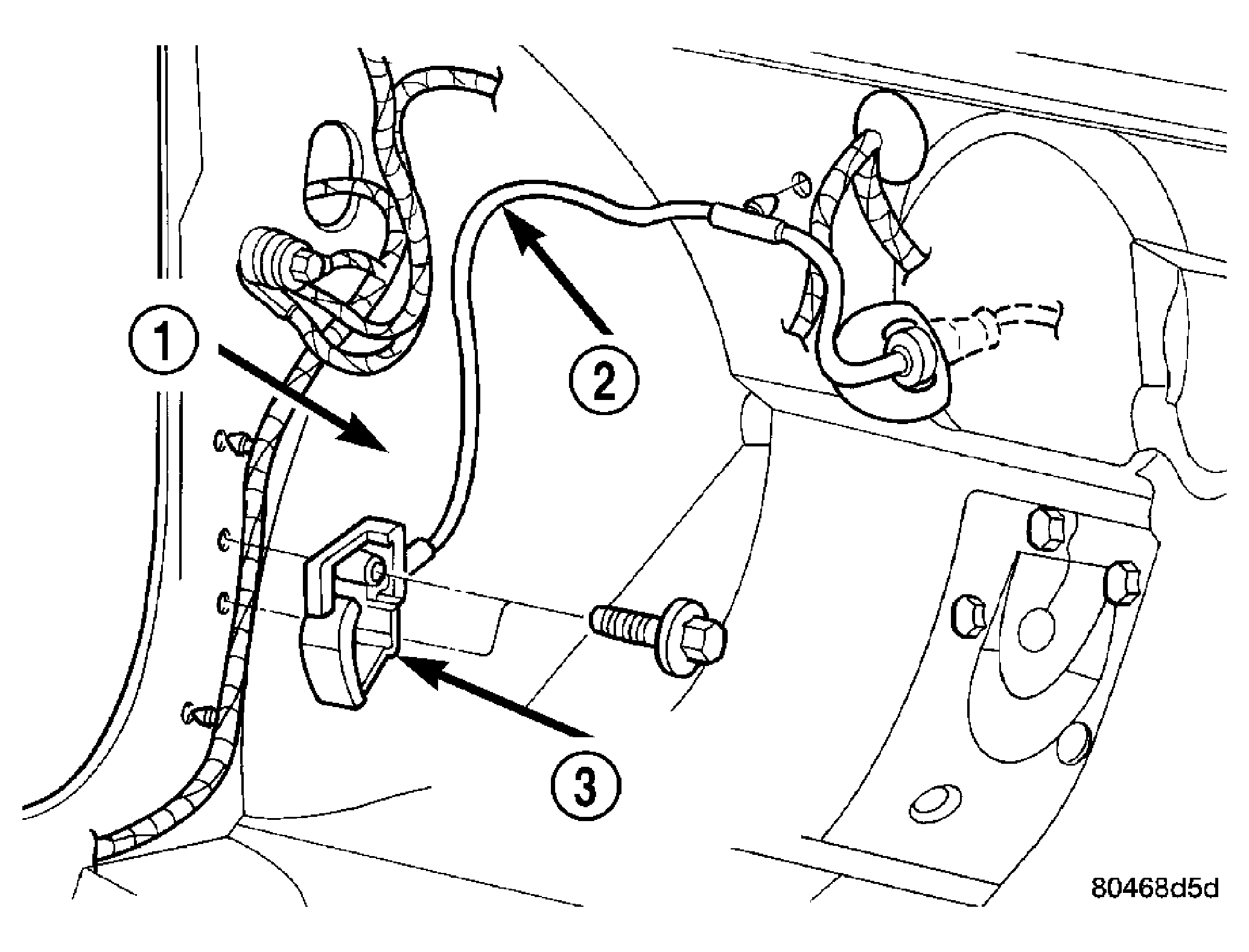

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - COWL PANEL |
| 2 - HOOD RELEASE CABLE |
| 3 - HOOD RELEASE HANDLE |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - FRAME RAIL |
| 2 - UPPER RADIATOR SUPPORT CROSSMEMBER |
| 3 - HOOD RELEASE CABLE |
