Section 82 (Interior & Exterior - Except Coupe): Hood: Latch: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Release hood latch and open hood.
- Support hood on prop rod.
- Mark outline of hood latch on radiator support crossmember with a grease pencil or other suitable device to aid installation.
- Remove nuts attaching hood latch to upper radiator support crossmember. See Fig 1.
- Remove hood latch from vehicle.
- Disengage remote release cable from hood latch. See Fig 2.

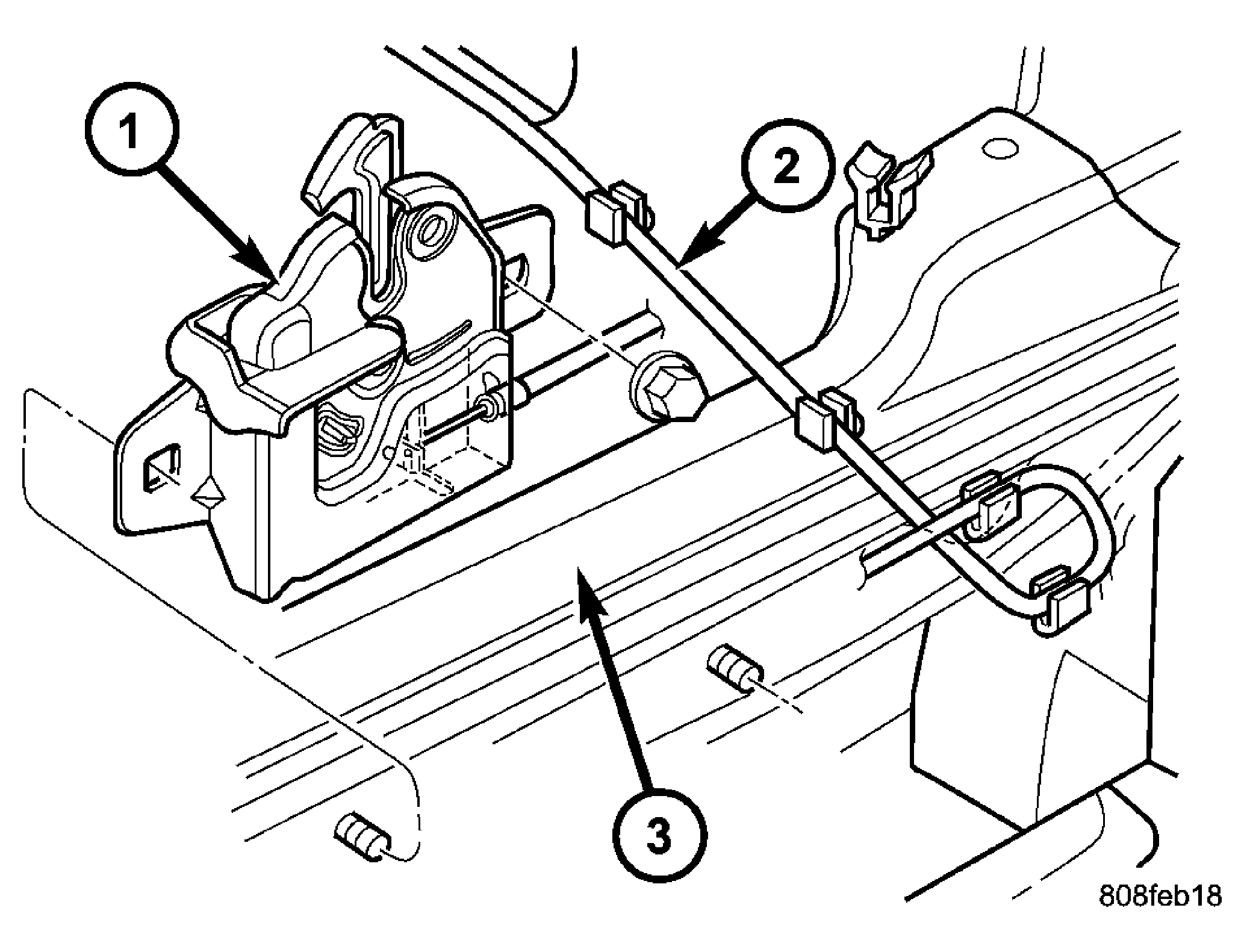

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - HOOD LATCH |
| 2 - HOOD RELEASE CABLE |
| 3 - RADIATOR SUPPORT CROSSMEMBER |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - HOOD LATCH |
| 2 - HOOD RELEASE CABLE |
