Right Front Wheelhouse Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and remove the fender trim. See Figure.
  2. Remove right front wheel. (Refer to TIRES/WHEELS - REMOVAL) .
  3. Remove the eight push pin fasteners, two screws and remove the splash shield. See Fig 1.

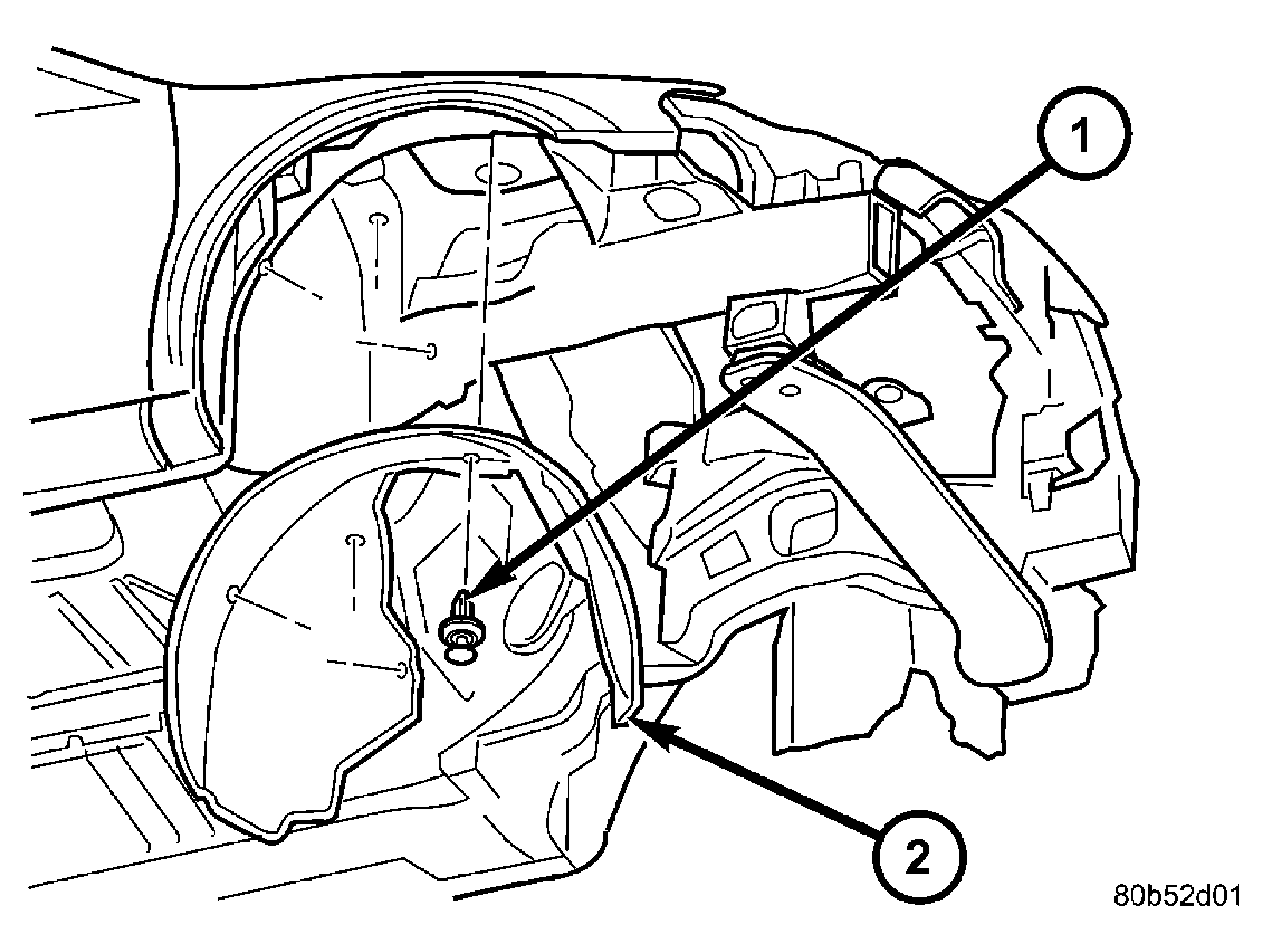

Fig 1: Splash Shield
GC0031424Courtesy of DAIMLERCHRYSLER CORP.
1 - PUSH PIN FASTENERS
2 - SPLASH SHIELD
