Rear Wheelhouse Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel. (Refer to TIRES/WHEELS - REMOVAL) .
Remove the six push pin fasteners, two screws and remove the wheelhouse splash shield. See Fig 1.

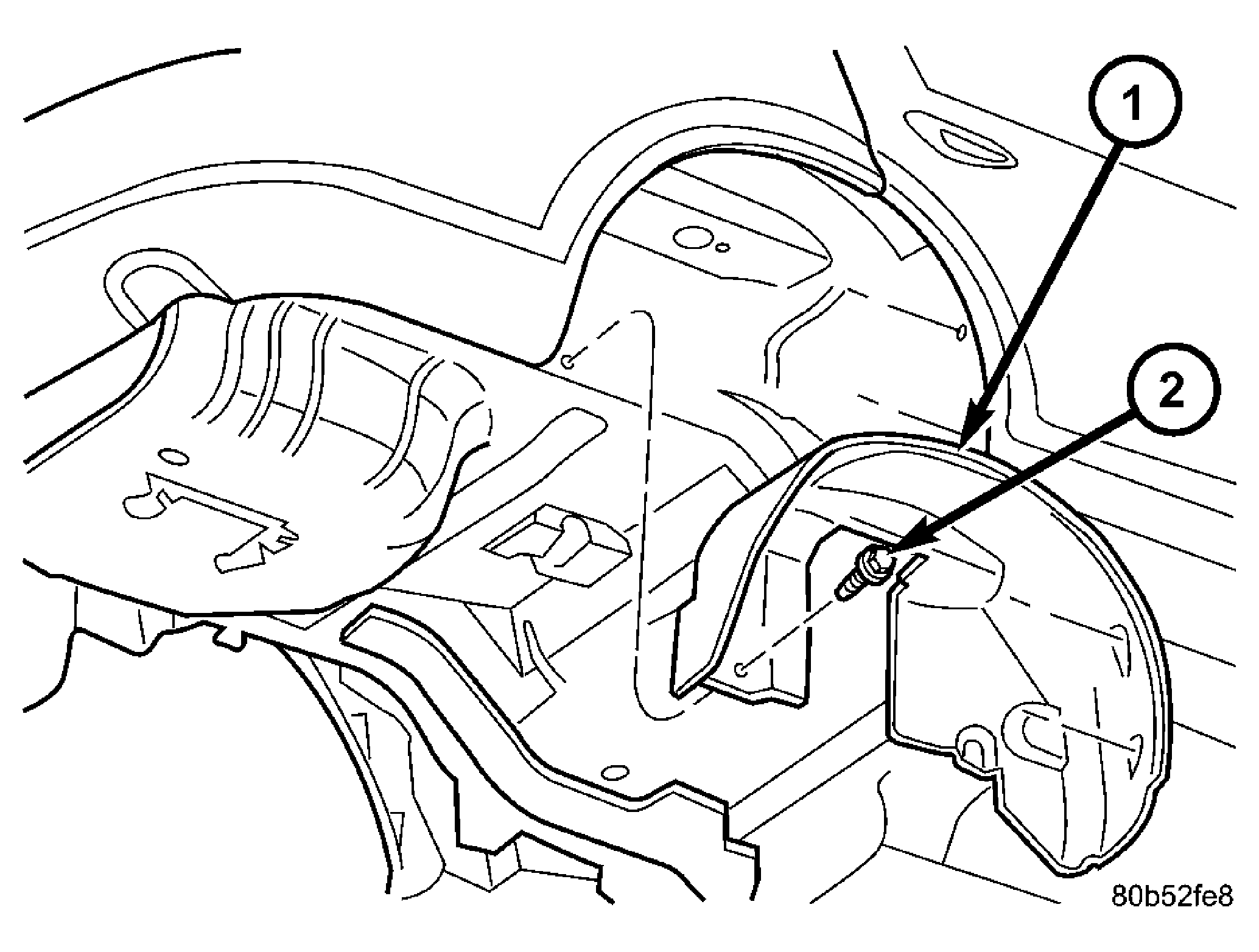

Fig 1: Wheelhouse Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPLASH SHIELD

2 - PUSH PIN FASTENERS
