Left Front Wheelhouse Splash Shield: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove left front wheel. (Refer to TIRES/WHEELS - REMOVAL) .
Remove the seven push pin fasteners, the three screws, and remove the transmission splash shield. See Fig 2.
Remove the fender trim. See Fig 1.
Remove the four push pin fasteners and remove the wheelhouse splash shield. See Fig 3.

Fig 1: Fender Trim - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREWS

2 - FENDER TRIM

Fig 2: Transmission Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPLASH SHIELD

2 - PUSH PIN FASTENERS

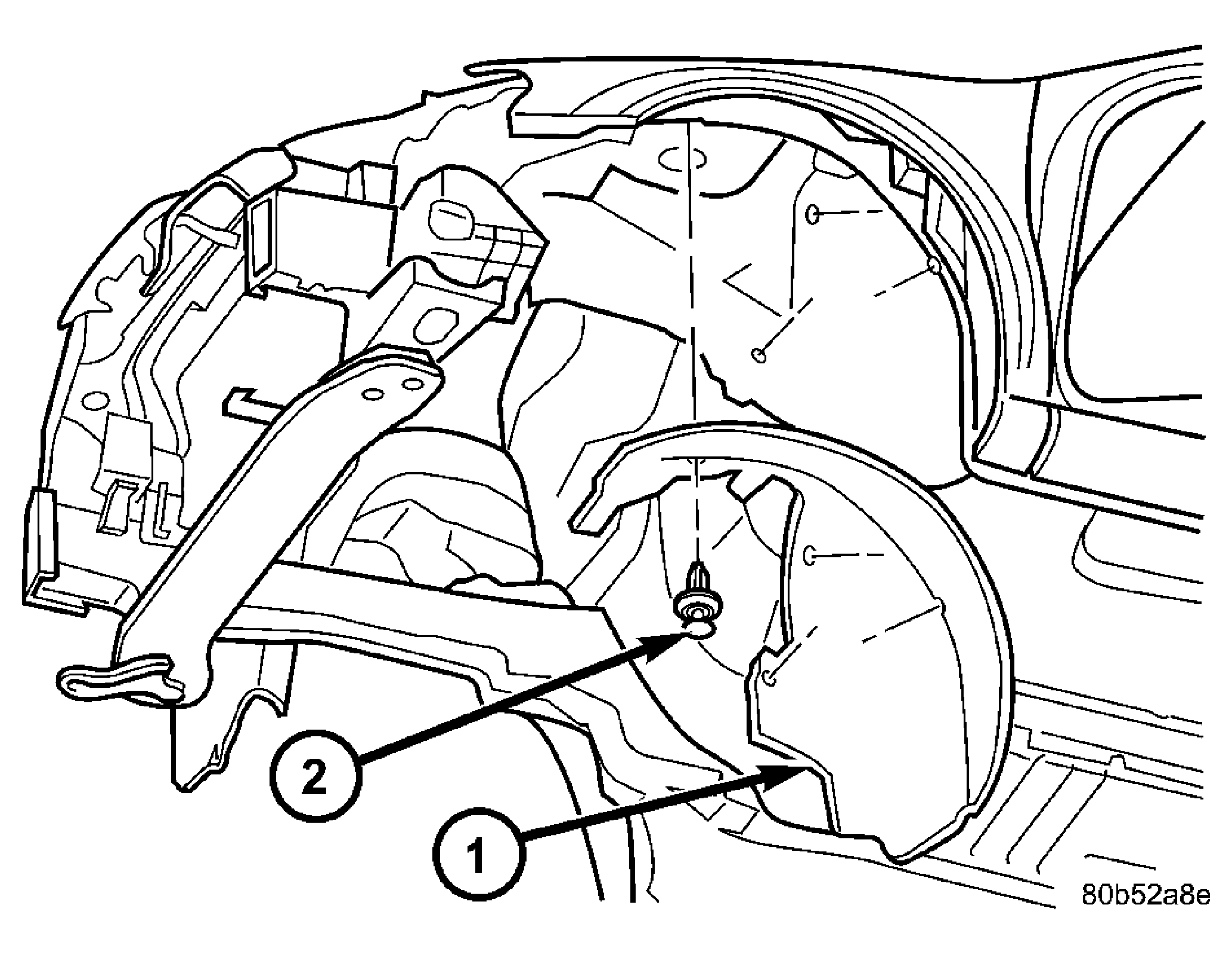

Fig 3: Wheelhouse Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEELHOUSE SPLASH SHIELD

2 - PUSH PIN FASTENERS
