Cowl Cover: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release hood latch and open hood.
  2. Remove windshield wiper arms (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
  3. Remove screws attaching cowl cover to cowl. See Fig 1.
  4. Remove the seal, cowl screen to hood inner panel.
  5. Remove clips attaching cowl cover to cowl plenum under hood to cowl bulb seal.
  6. Remove cowl cover from vehicle.

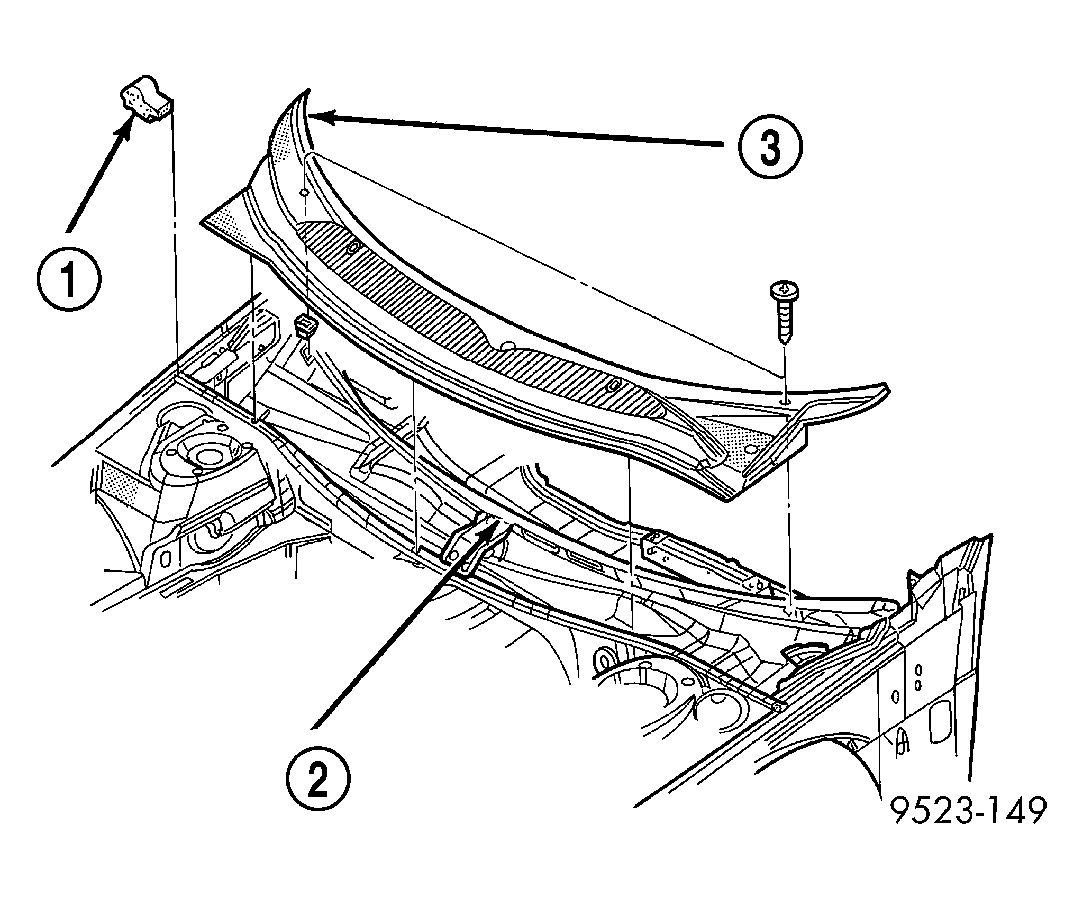

Fig 1: Cowl Cover
GC0031409Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAL
2 - COWL
3 - COWL COVER
