Door Rear: Hinge: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the door. (Refer to BODY/DOORS - REAR/DOOR - REMOVAL) .
- Mark hinge attachment locations with a grease pencil or other suitable device to aid installation.

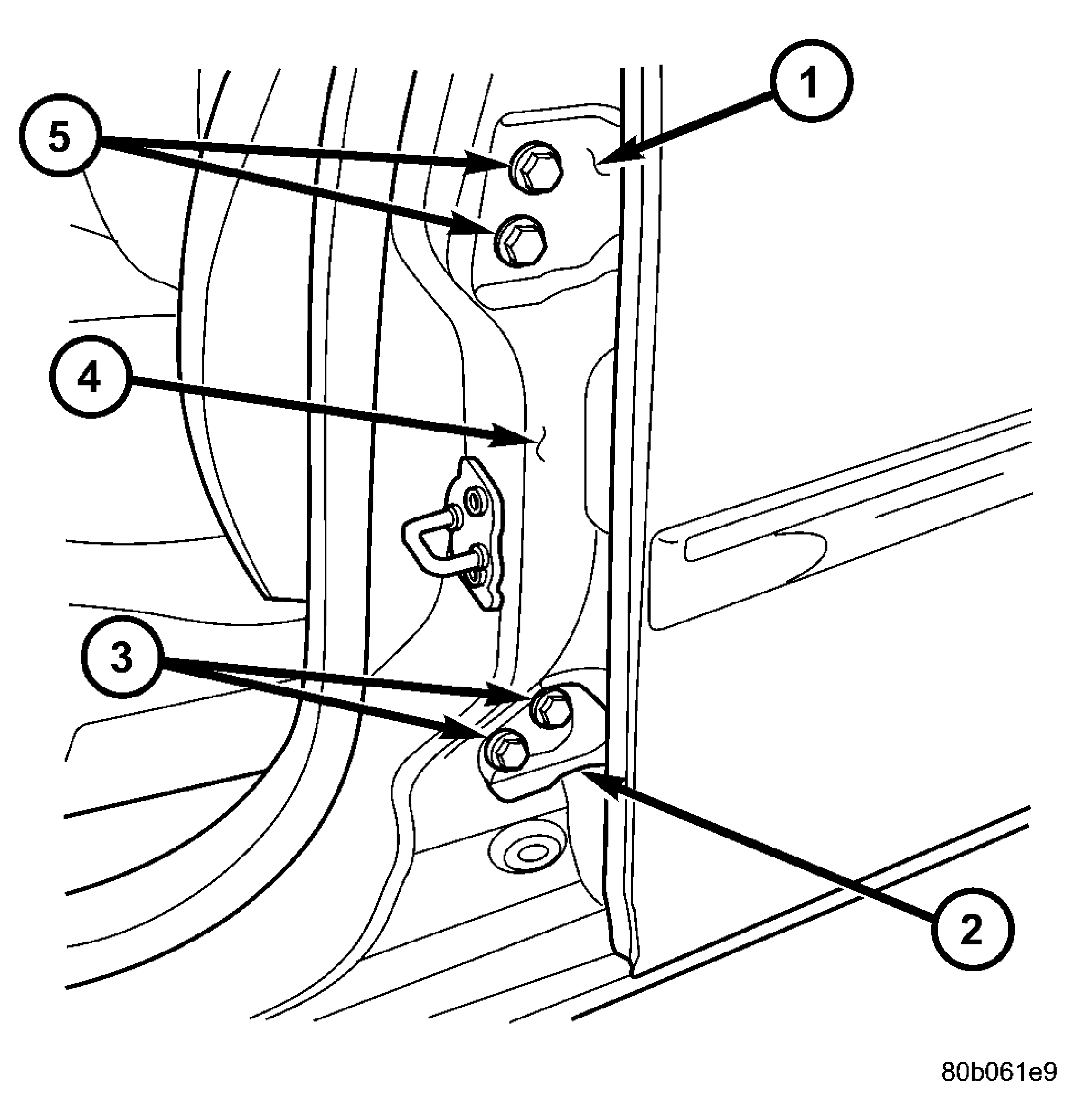

- Remove the bolts and nuts and remove the hinges. See Fig 1.
| 1 - UPPER HINGE |
| 2 - LOWER HINGE |
| 3 - LOWER HINGE BOLTS |
| 4 - B-PILLAR |
| 5 - UPPER HINGE BOLTS |
