Door Rear: Door: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Open and support door on a suitable lifting device.
- Mark hinges attachment locations with a grease pencil or other suitable device to aid installation.

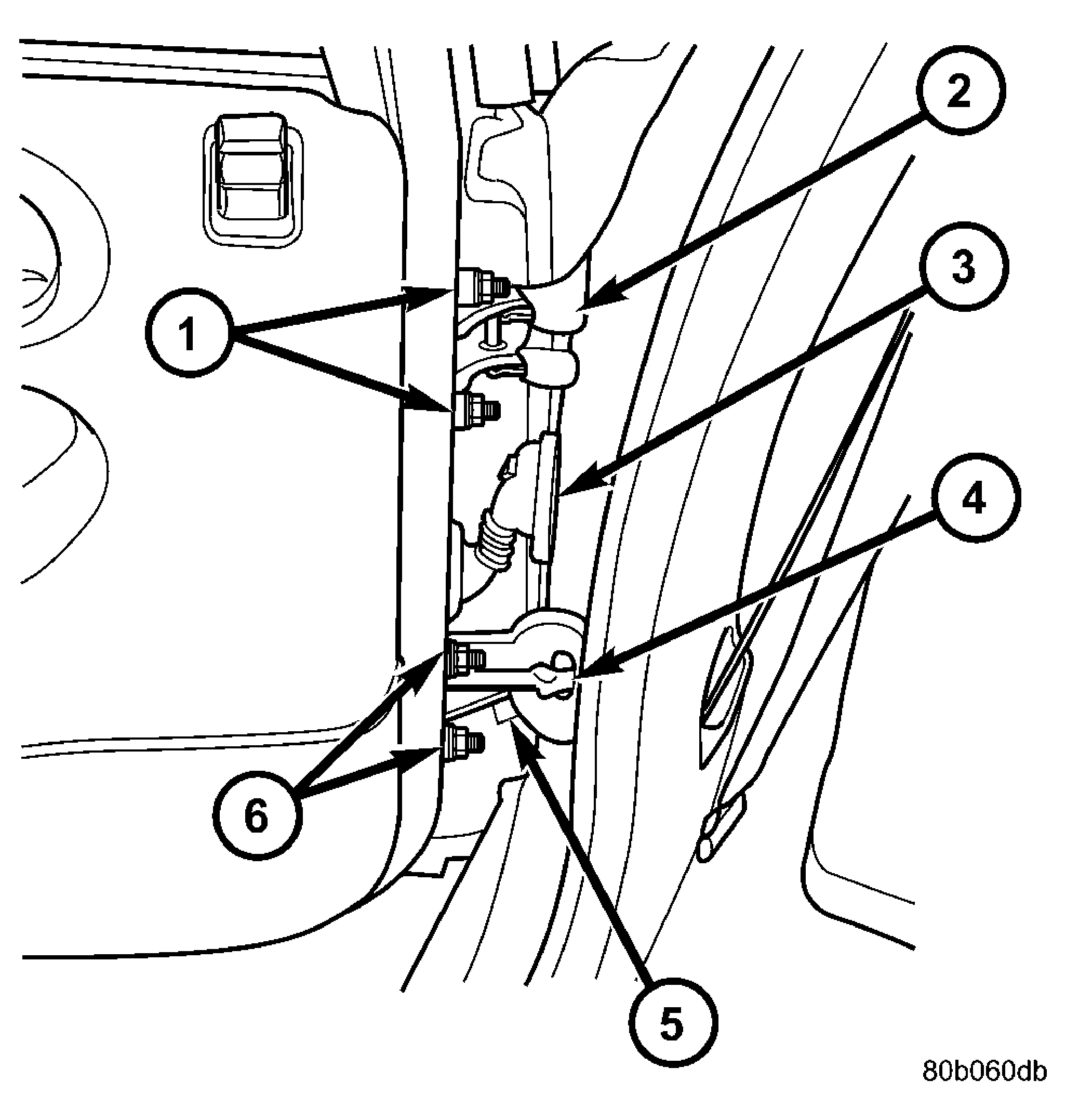

- Disengage wire connector at hinge B-pillar. See Fig 1.
- Remove bolts attaching door check strap to B-pillar.
- Remove the nuts and remove the door from vehicle.
| 1 - UPPER HINGE NUTS |
| 2 - UPPER HINGE |
| 3 - ELECTRICAL CONNECTOR |
| 4 - CHECK STRAP |
| 5 - LOWER HINGE |
| 6 - LOWER HINGE NUTS |
