Door Front: Applique: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the glass run weatherstrip away from the window opening to access the applique screws. (Refer to BODY/WEATHERSTRIP/SEALS/FDR GLASS RUN WEATHERSTRIP - REMOVAL) .
  2. Remove the screws and remove the applique. See Fig 1.

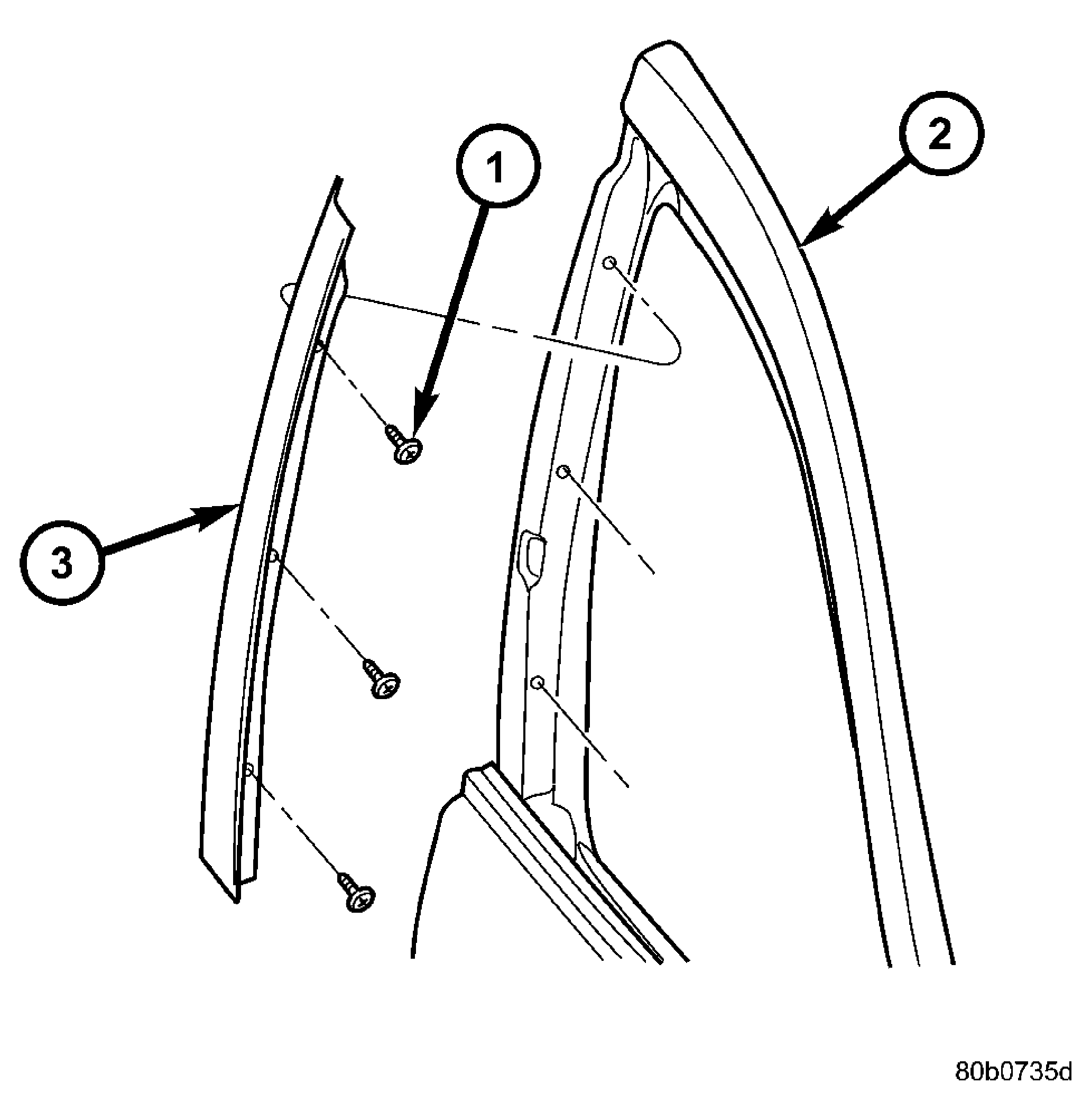

Fig 1: 01 Front Door Applique
GC0031389Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS
2 - FRONT DOOR
3 - APPLIQUE
