Front Door Glass Run Weatherstrip: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Remove door glass. (Refer to BODY/DOOR - FRONT/DOOR GLASS - REMOVAL)
Remove bolt attaching bottom of front lower run channel to inner door panel.
Pull glass run weatherstrip from door glass opening frame.
Remove lower run channel through opening at top of door. See Fig 1.

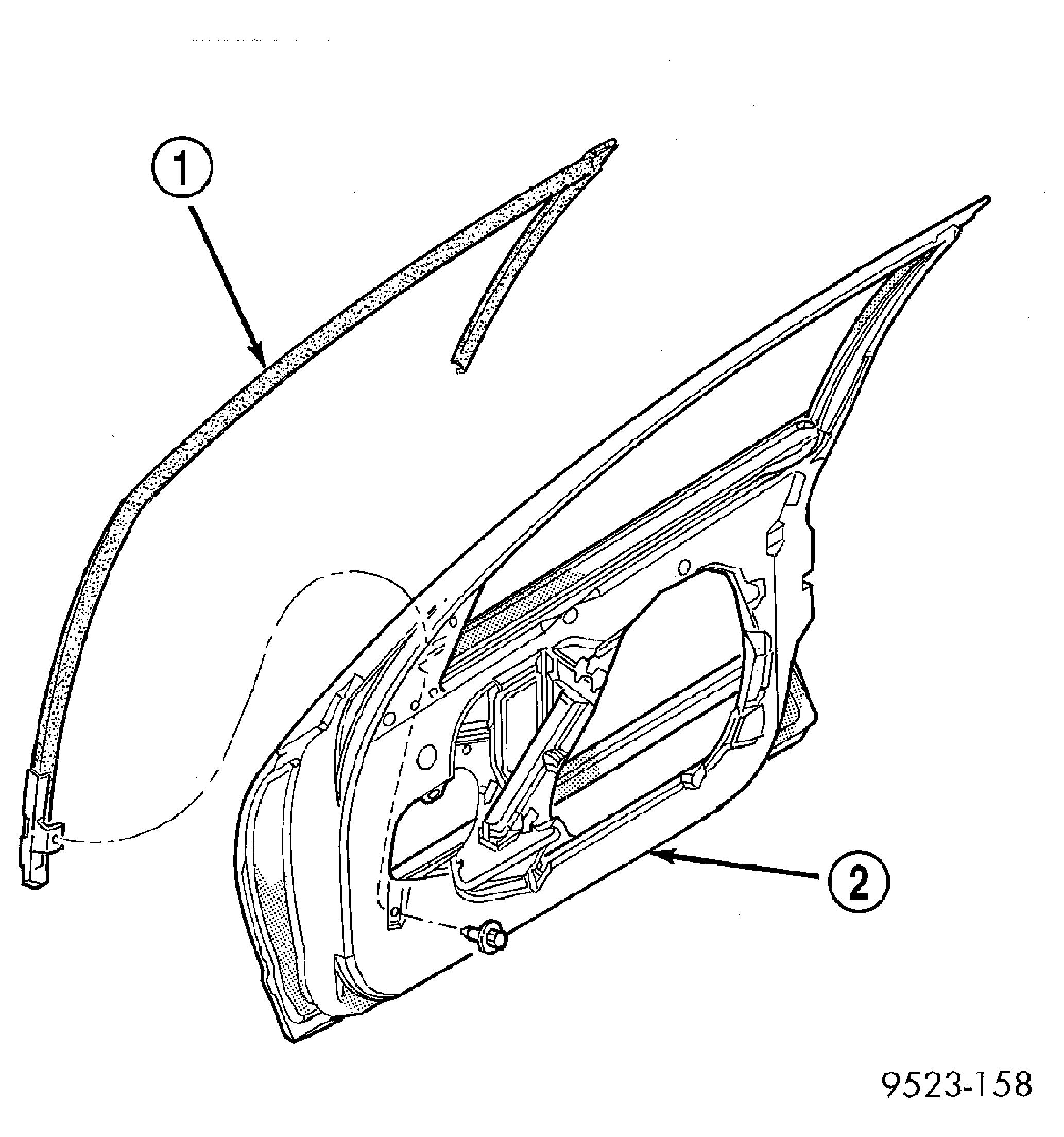

Fig 1: Door Glass Run Weatherstrip

Courtesy of DAIMLERCHRYSLER CORP.

1 - GLASS RUN WEATHERSTRIP

2 - FRONT DOOR
