Side Center Rail: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place center side rail in position.
  2. Install front pivot bolts. See Fig 1.

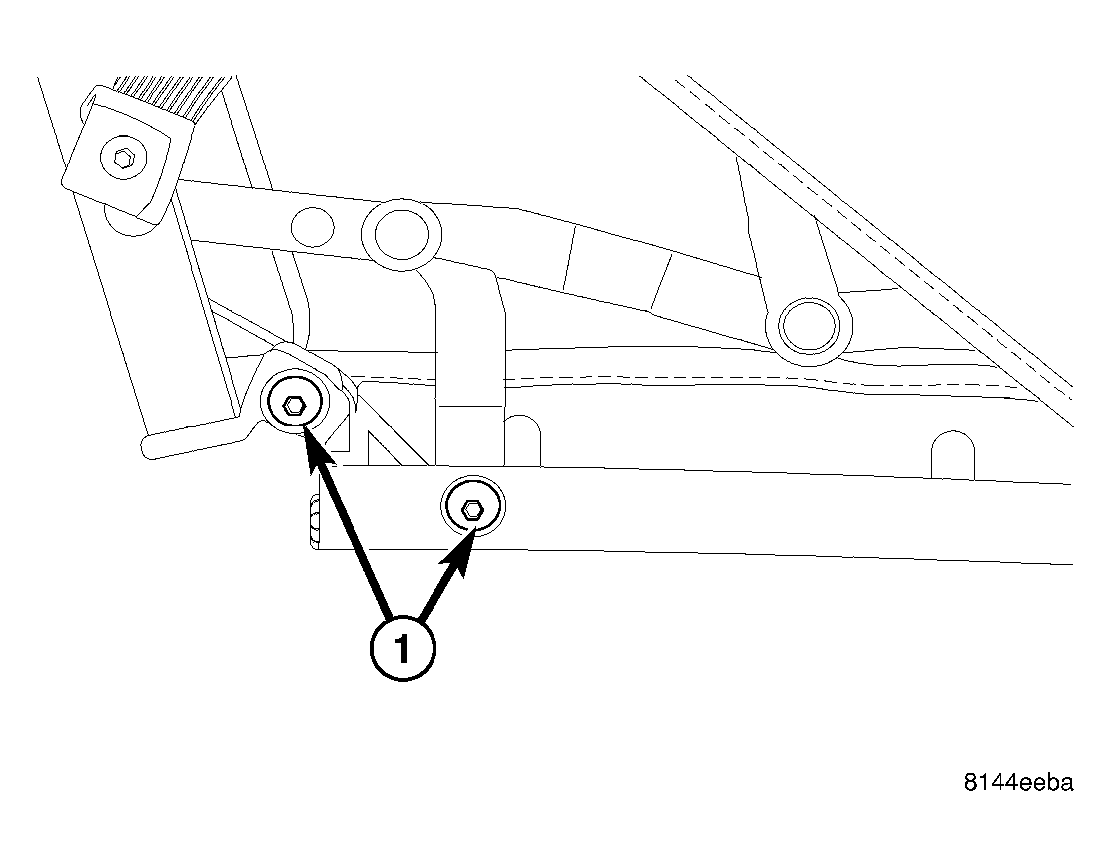

    Fig 1: Side Center Rail Front Attaching Screws
    GC0031338Courtesy of DAIMLERCHRYSLER CORP.
    1 - ATTACHING BOLTS
  3. Install pivot arm bolt at side rail. See Fig 2.

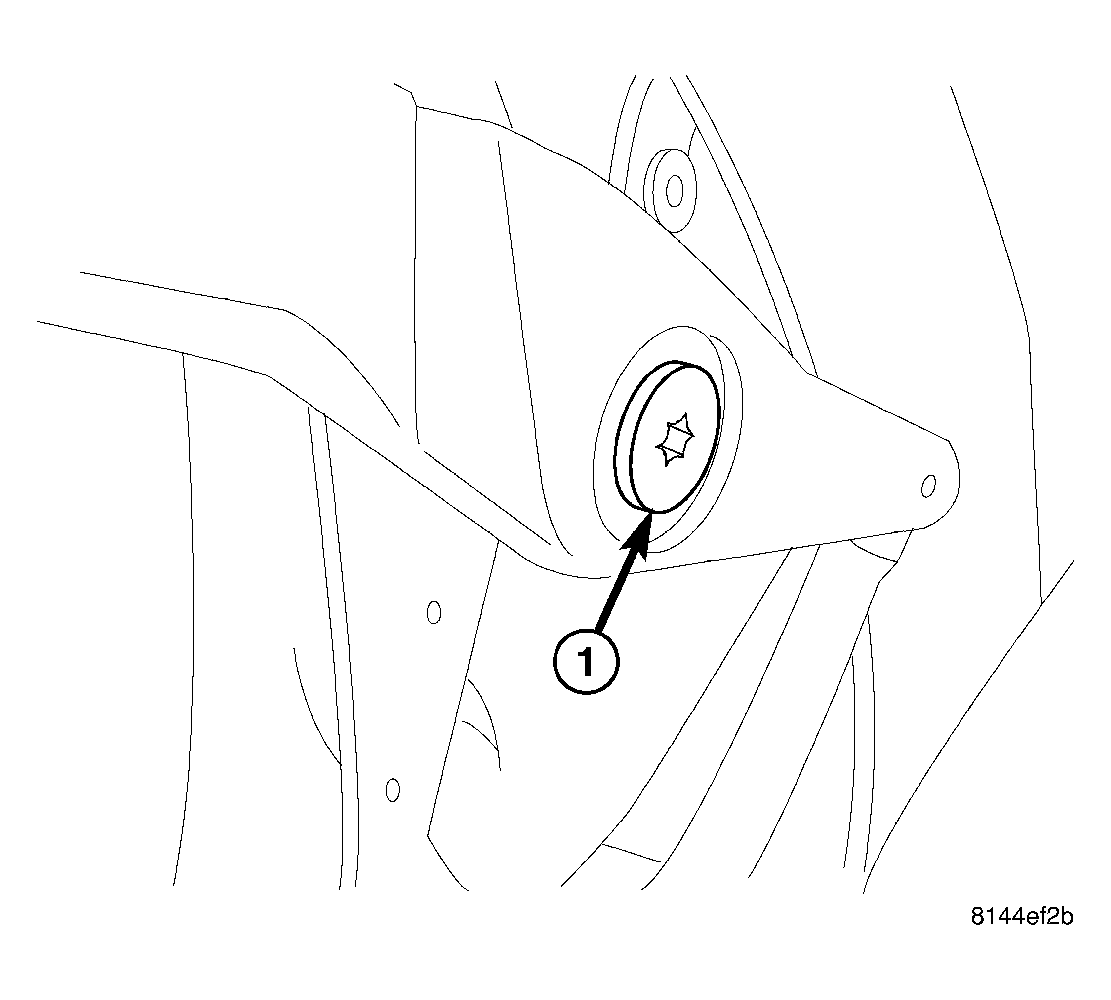

    Fig 2: Side Center Rail Rear Attach Screw
    GC0031339Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR BOLT
  4. Install lower rear pivot bolt.
  5. Install weatherstrip retainer, and weatherstrip for side glass on the center side rail. See Fig 3 and Fig 4.

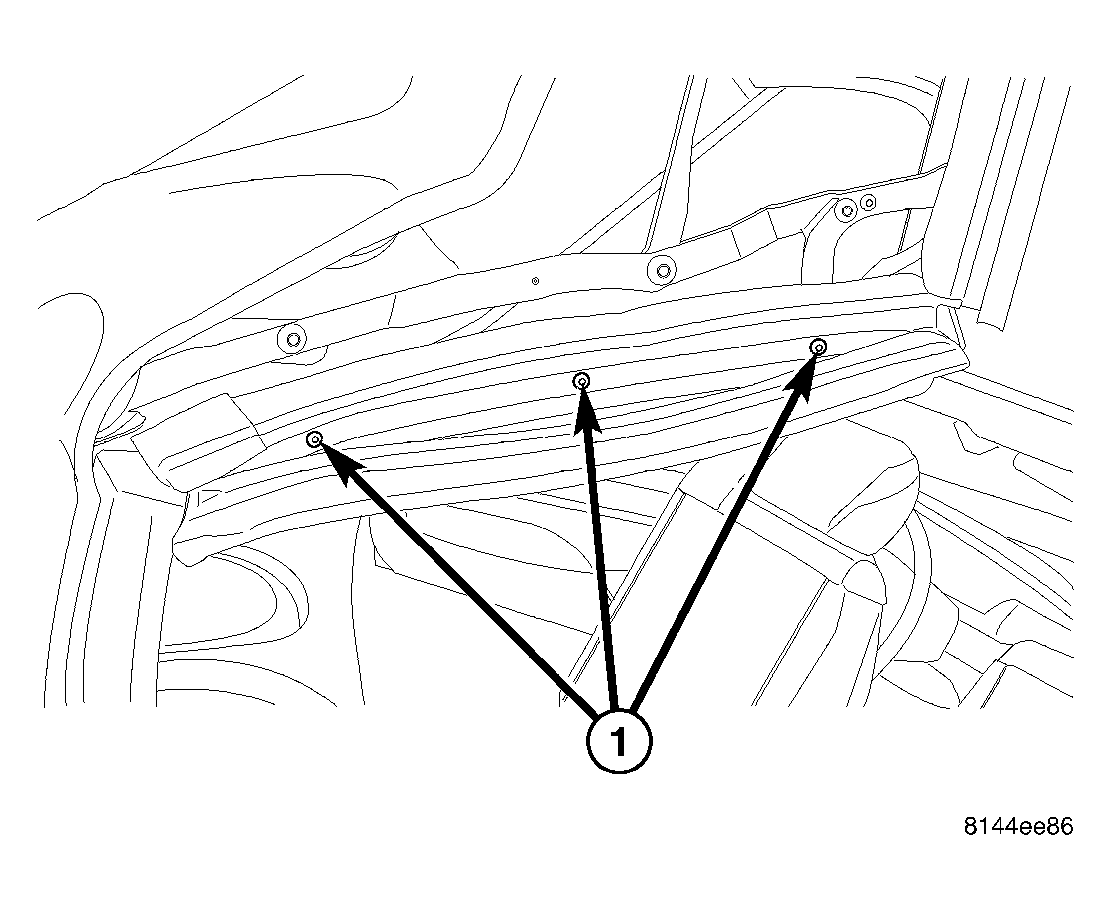

    Fig 3: Weatherstrip Attaching Screws
    GC0031337Courtesy of DAIMLERCHRYSLER CORP.
    1 - ATTACHING SCREWS

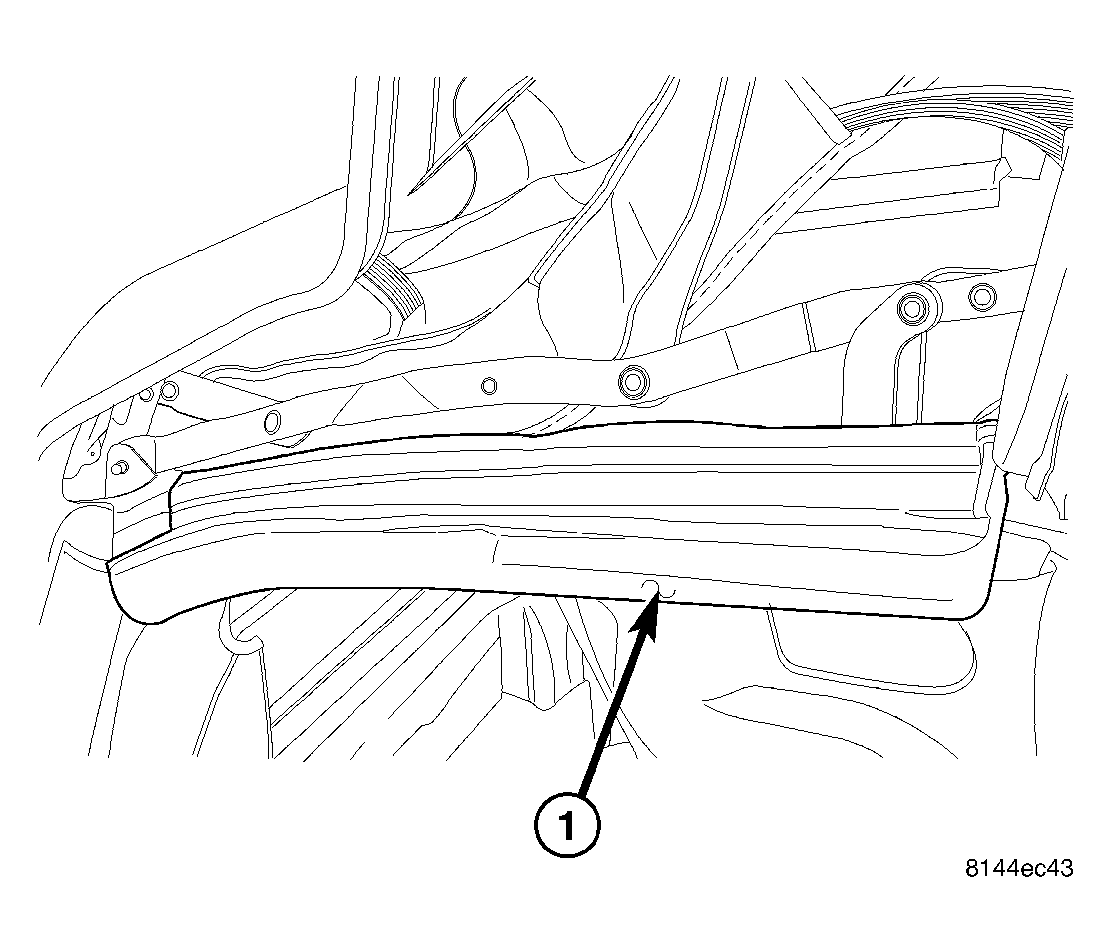

    Fig 4: Side Center Rail Weatherstrip
    GC0031336Courtesy of DAIMLERCHRYSLER CORP.
    1 - WEATHERSTRIP
  6. Remove the device propping up the top.
  7. Connect headliner push pin fasteners at quarter panel.
  8. Connect fasteners attaching headliner and top cover straps.
  9. Install quarter trim panel. (Refer to BODY/INTERIOR/QUARTER PANEL TRIM - INSTALLATION) .
  10. Install speaker grille. (Refer to BODY/INTERIOR/QUARTER PANEL TRIM - INSTALLATION) .
  11. Install sill plate. (Refer to BODY/INTERIOR/DOOR SILL TRIM - INSTALLATION) .
  12. Install rear seat back. (Refer to BODY/SEATS/REAR SEAT BACK - INSTALLATION) .
  13. Install rear seat cushion. (Refer to BODY/SEATS/SEAT CUSHION - INSTALLATION) .
  14. Lower top and latch top.
  15. Raise all windows.
