Cables - Parking Brake: Installation

For servicing either the left or right parking brake cable, follow the procedure as listed below.

1. Install parking brake cable into floor pan of vehicle making sure sealing grommet is installed in floor pan as far as possible to insure a proper seal. See Figure.
2. Install parking brake cable into rear disc brake adapter or drum support plate. Once installed in place, be sure locking tabs on cable housing retainer are expanded.
   NOTE: Parking brake cable routing and routing clips are different on right and left sides of vehicle. Be sure correct routing clips are installed on correct side of vehicle.
3. Attach two parking brake cable routing clips on rear frame rail. Install and securely tighten routing clip attaching screws.

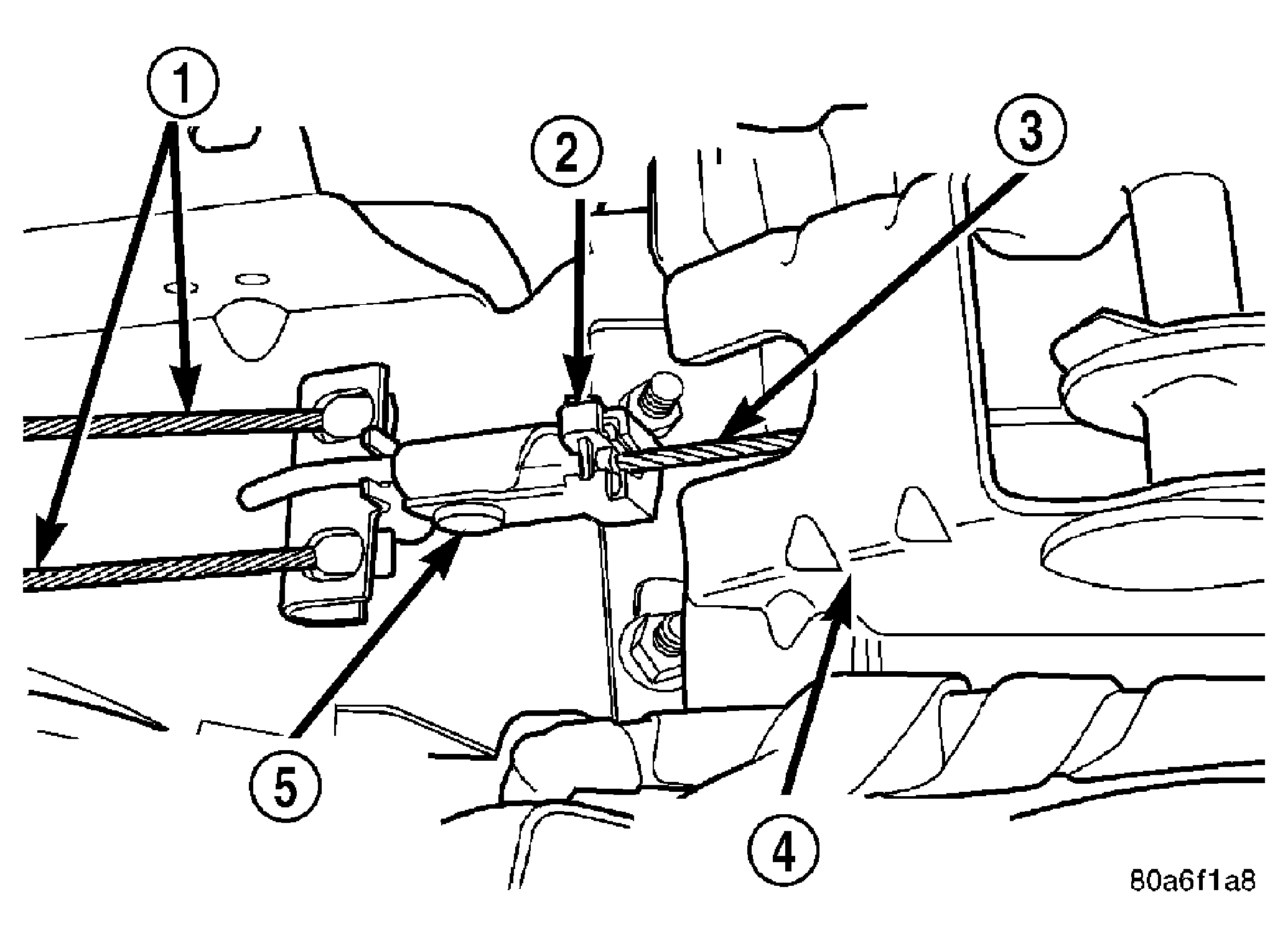

4. Install end of cable on parking brake actuating lever. See Fig 1. Guide spring beneath retaining tab on lever.
   Fig 1: Cable Installation To Lever

   Courtesy of DAIMLERCHRYSLER CORP.
5. On vehicles with rear disc brakes, install and adjust parking brake shoes, install hub and bearing, rotor and caliper. (Refer to BRAKES/PARKING BRAKE/SHOES - INSTALLATION)
6. On vehicles with rear drum brakes:
   • Insert cable into cable guide attached to anchor retaining plate.
   • Slide hub and bearing onto spindle. Install retaining nut and tighten to 250 N.m (185 ft. lbs.) torque.
   • Install hub and bearing dust cap.
7. Install rear wheel and tire assembly on vehicle. Tighten all wheel lug nuts in crisscross pattern to one-half specified torque. Then repeat pattern, fully tightening nuts to 135 N.m (100 ft. lbs.).
8. Lower vehicle.
9. Grasp parking brake cable to floor pan seal grommet by hand, and pull it into floor pan to ensure seal grommet is fully seated into floor pan.
10. Route parking brake cable under carpeting and up to cable hole in console bracket on floor pan.

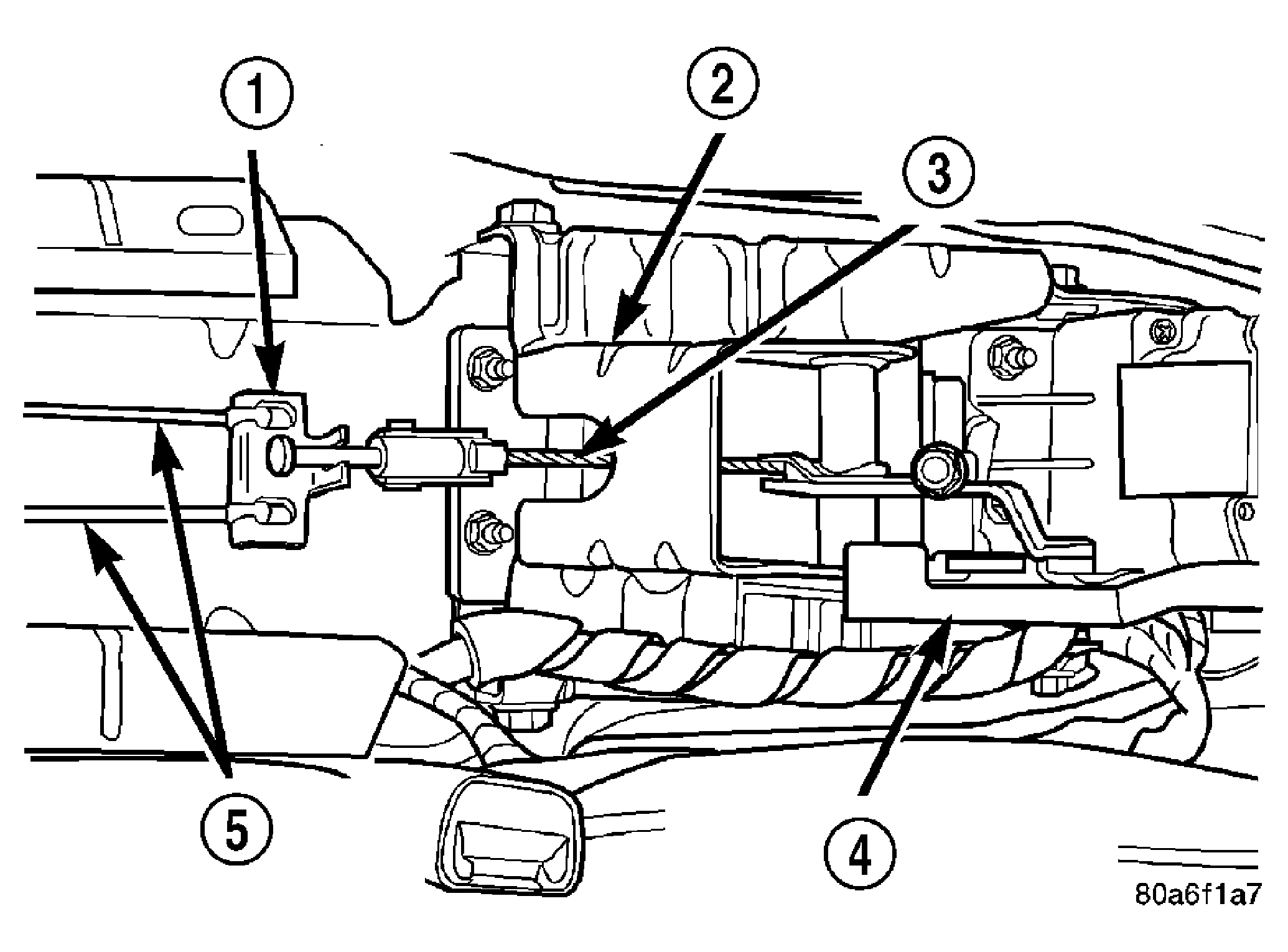

11. Install parking brake cable into console bracket. See Fig 2. Once installed, be sure locking tabs on cable retainer have expanded out to hold cable in console bracket.
    Fig 2: Park Brake Cable Installed In Console Bracket

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - PARK BRAKE CABLE RETAINER

    2 - RETAINING TABS

    3 - PARK BRAKE CABLE RETAINING BRACKET

    CAUTION: Discard output cable retaining clip and tension equalizer after removing it from the park brake output cable. A new tension equalizer and retaining clip is to be used when installing a new rear park brake cable.
12. Using a screwdriver, unlatch the parking brake output cable retainer. Then remove cable retainer and park brake cable tension equalizer from park brake lever output cable See Fig 3.and discard components.
    Fig 3: Output Cable To Equalizer Retaining Clip

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - SCREWDRIVER

    2 - PARK BRAKE LEVER OUTPUT CABLE

    3 - CABLE RETAINER

    4 - REAR PARK BRAKE CABLES

    5 - PARK BRAKE CABLE TENSION EQUALIZER

    CAUTION: A new cable tension equalizer must be installed when replacing a rear park brake cable. The new cable tension equalizer is required to correctly adjust park brake cable tension after installing a new rear park brake cable.

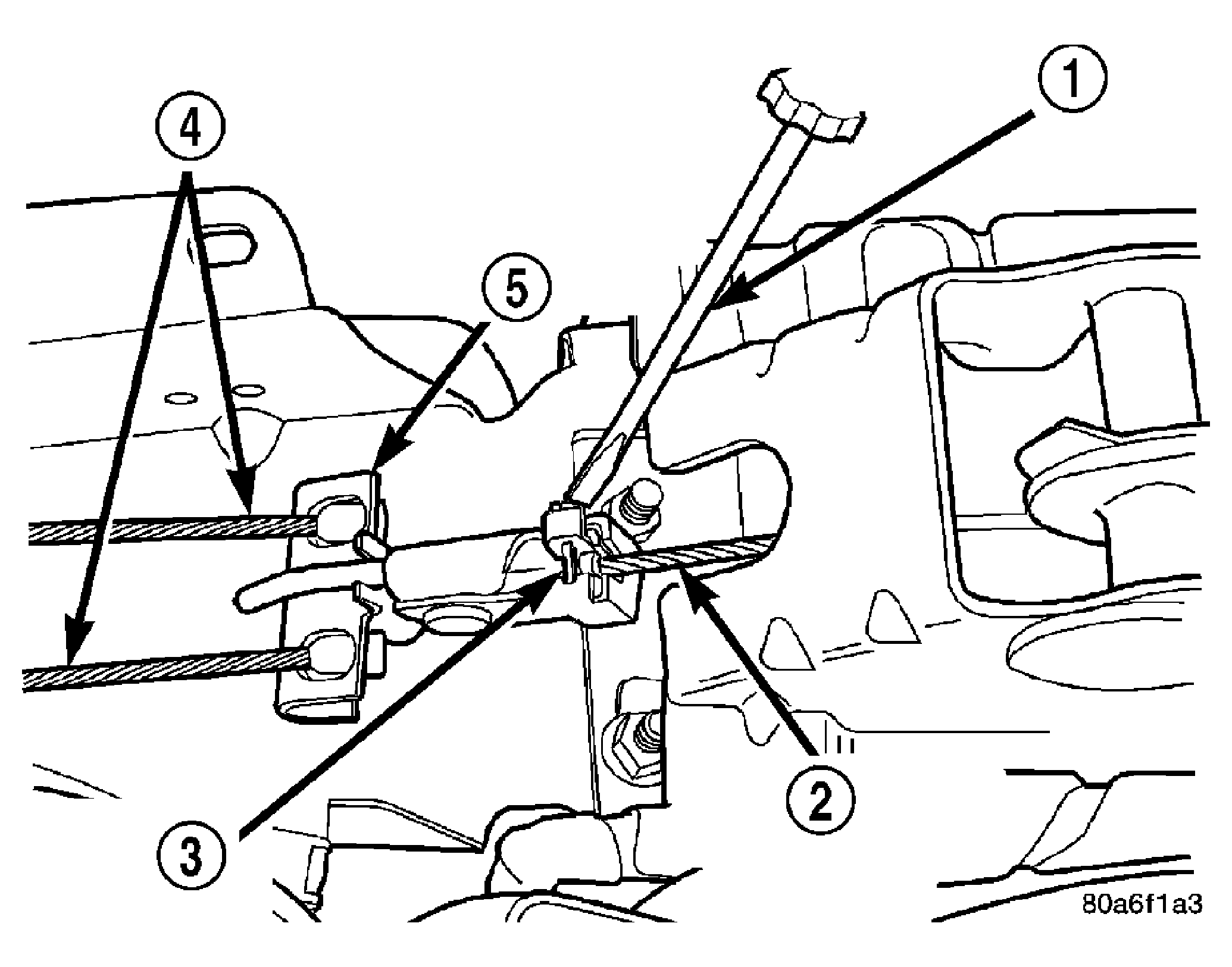

13. Install a NEW park brake cable tension equalizer on park brake lever output cable and rear park brake cables. See Fig 4.
    Fig 4: Park Brake Cable Tension Equalizer

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - PARK BRAKE CABLE TENSION EQUALIZER

    2 - PARK BRAKE MECHANISM

    3 - PARK BRAKE LEVER OUTPUT CABLE

    4 - PARK BRAKE LEVER

    5 - REAR PARK BRAKE CABLES

    CAUTION: A new retainer must be used when installing the park brake mechanism output cable on the cable tension equalizer. Cable retainer usage is required to ensure output cable can not separate from tension equalizer. See Fig 5.
14. Install a NEW park brake lever output cable to tension equalizer retaining clip on tension equalizer. Cable retainer must be closed and securely latched. See Fig 5.
    Fig 5: Cable Retainer Installed On Tension Equalizer

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - REAR PARK BRAKE CABLES

    2 - CABLE RETAINING CLIP

    3 - PARKING BRAKE MECHANISM OUTPUT CABLE

    4 - PARK BRAKE MECHANISM

    5 - PARK BRAKE CABLE TENSION EQUALIZER

15. Adjust cable tension for parking brake system using following steps:
    1. Position parking brake lever so it is in the fully released position.

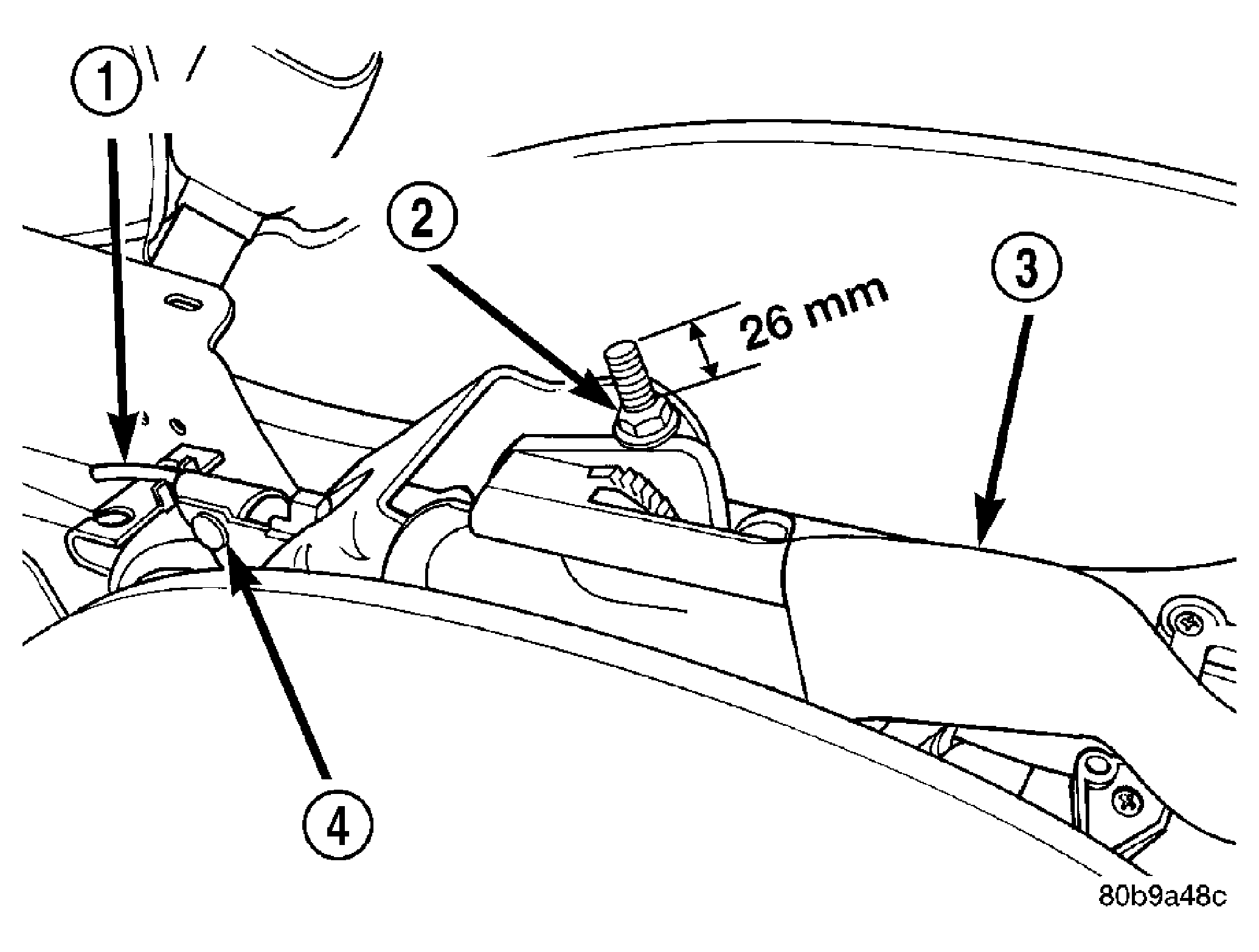

    2. Tighten adjusting nut on parking brake lever output cable until 26 millimeters of thread is out past top edge of adjustment nut. See Fig 6.
    3. Actuate parking brake lever to its fully applied position (15 clicks) 1 time and then reposition lever to its fully released position.
    NOTE: Actuating the parking brake lever to its fully applied position one time after tightening the adjustment nut will yield (stretch) the bent nail portion of the tension equalizer approximately 1/4 inch. This process will correctly set the parking brake cable tension.
    Fig 6: Parking Brake Adjustment

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - BENT NAIL

    2 - ADJUSTING NUT

    3 - PARKING BRAKE LEVER

    4 - PARKING BRAKE CABLE TENSION EQUALIZER

16. Check rear wheels of vehicle with parking brake lever fully released; they should rotate freely without dragging.
17. After parking brake cable tension has been properly adjusted, check for free play in parking brake lever. Parking brake hand lever should feel firm at all clicks, with a maximum of 15 clicks of lever travel possible.
18. Install center floor console. (Refer to BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION)
19. Install rear carpeting.
20. Install both rear door sill plate moldings by snapping them onto rear door sills.
21. Install lower rear seat cushion.
