Upper Control Arm: Removal
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The rear control arm, control arm bushings, and pivot bar are serviced as a complete assembly on this vehicle. Do not attempt to disassemble the control arm from the pivot bar to service the rear control arm bushings.
- Raise vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
- Remove both rear wheel and tire assemblies from the vehicle.
- Remove the shock absorber clevis bracket to rear knuckle attaching bolt and nut on both sides of the vehicle. See Fig 1.
1 - ATTACHING BOLT 2 - REAR KNUCKLE 3 - SHOCK ABSORBER CLEVIS BRACKET 4 - LATERAL LINK - Remove muffler support bracket from rear frame rail. See Fig 2.

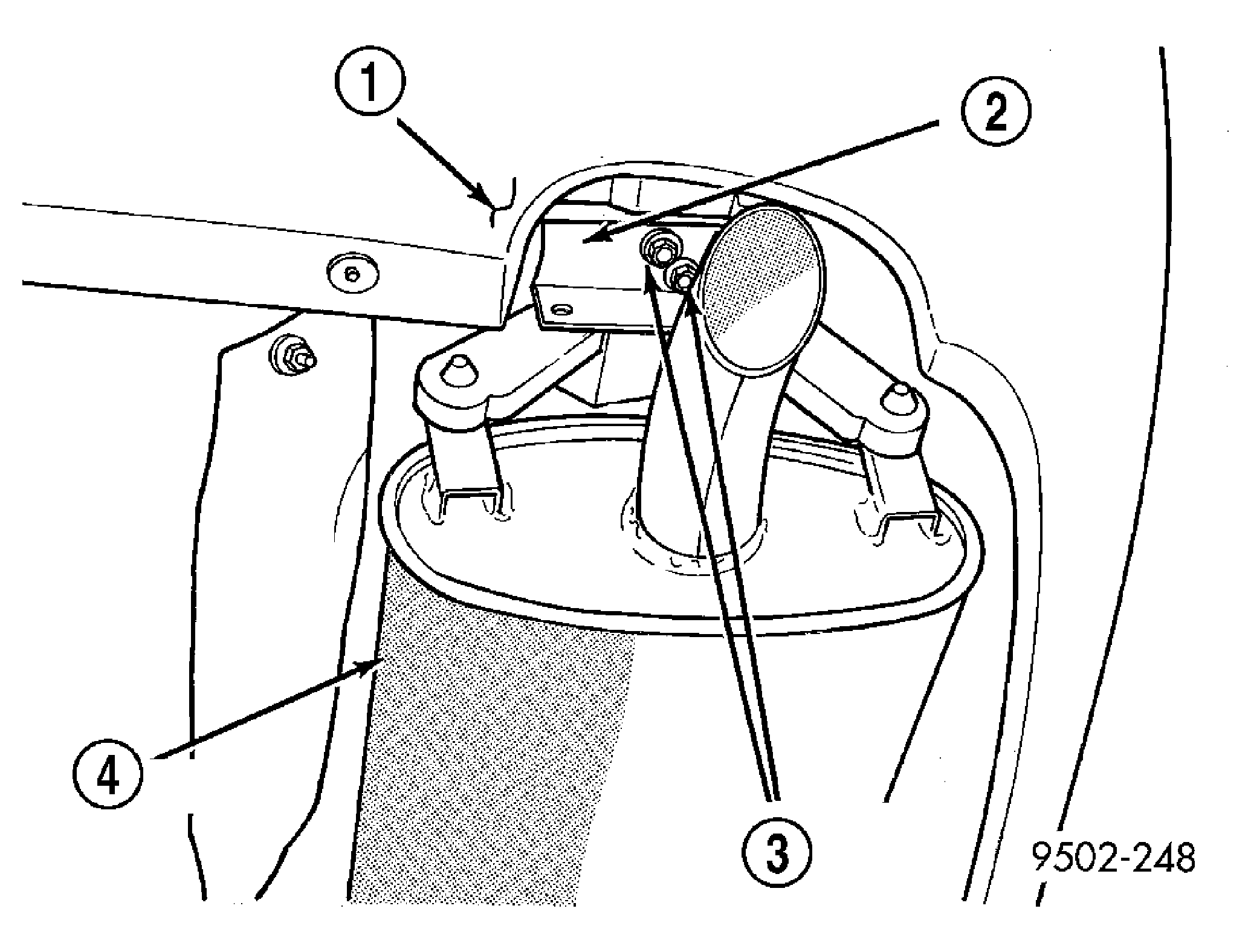

1 - REAR FASCIA 2 - MUFFLER SUPPORT BRACKET 3 - ATTACHING BOLTS 4 - MUFFLER - Remove the rear exhaust pipe hanger bracket from the rear suspension crossmember. See Fig 3. Let exhaust system drop down as far as possible.

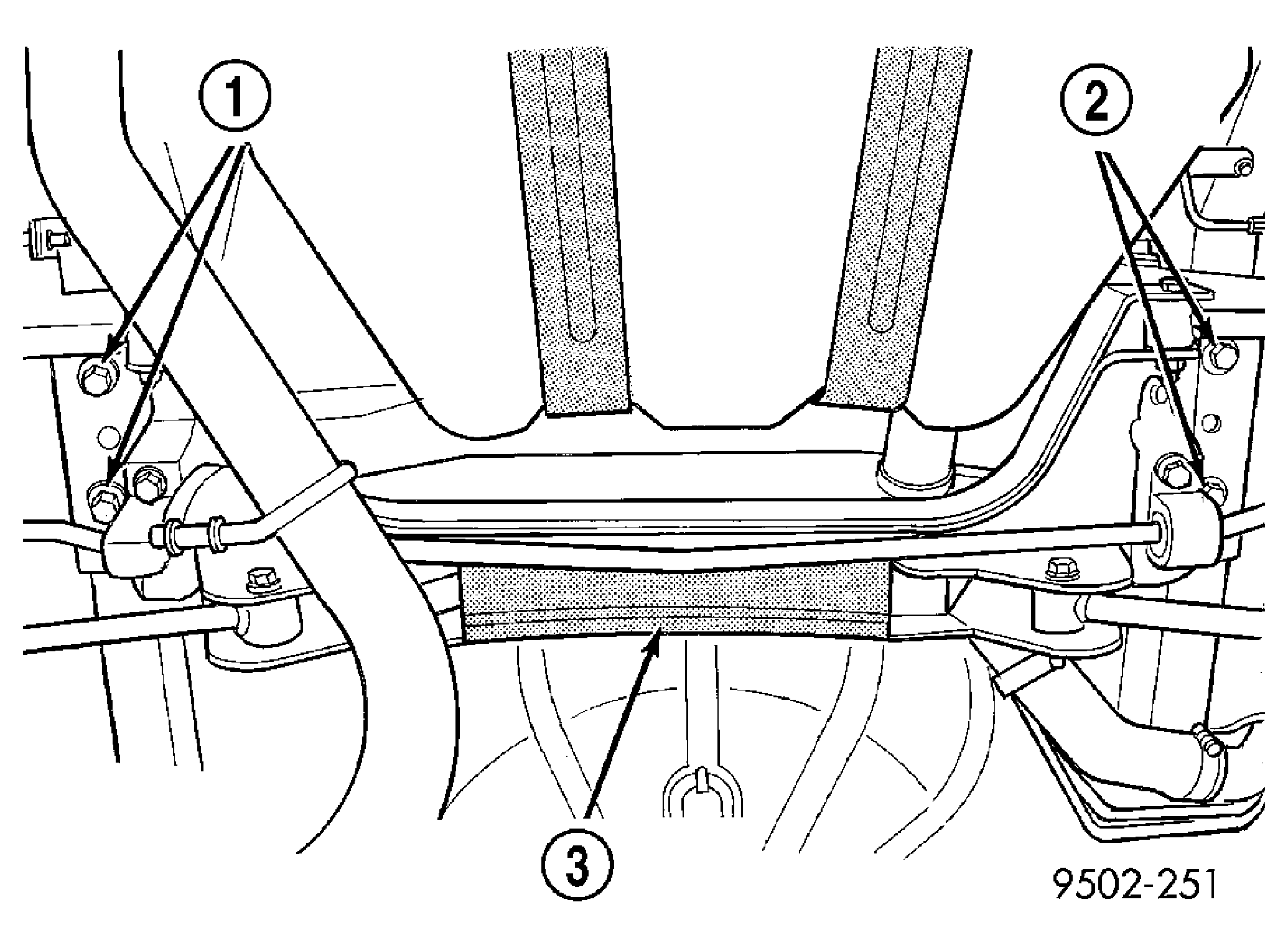

1 - BOLT 2 - REAR SUSPENSION CROSSMEMBER 3 - HANGER BRACKET 4 - EXHAUST PIPE - If vehicle is equipped with antilock brakes, remove routing clips for wheel speed sensor cable from brackets on both upper control arms. See Fig 4.
1 - UPPER CONTROL ARM 2 - SHOCK ABSORBER 3 - SPEED SENSOR CABLE ROUTING CLIPS 4 - BOLT 5 - SPEED SENSOR CABLE 6 - BRAKE FLEX HOSE BRACKET 7 - BOLT 8 - BRAKES - If vehicle is equipped with antilock brakes, remove bolts and wheel speed sensor heads from both rear knuckles.
- Remove both rear disc brake calipers from knuckles and hang out of way using wire or cord. (Refer to BRAKES/HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES - REMOVAL) . Do not allow calipers to hang by brake hoses.
- Release brake tubing from clips on top of crossmember.
- On the side of the vehicle requiring control arm removal, separate the control arm ball joint from the rear knuckle using following procedure:
- Back off nut retaining upper control arm ball joint to knuckle until nut is even with end of stud. This action will help avoid damaging the stud threads when the stud is released from the knuckle in the following step.
- Remove ball joint stud from knuckle using Puller, Special Tool, CT- 1106. See Fig 5.
- Remove nut retaining upper control arm ball joint to knuckle.
1 - BALL JOINT 2 - SPECIAL TOOL CT1106 3 - BALL JOINT STUD 4 - KNUCKLE - Position a transmission jack and wooden block under the center of the rear suspension crossmember to support and lower crossmember during removal. See Fig 6.

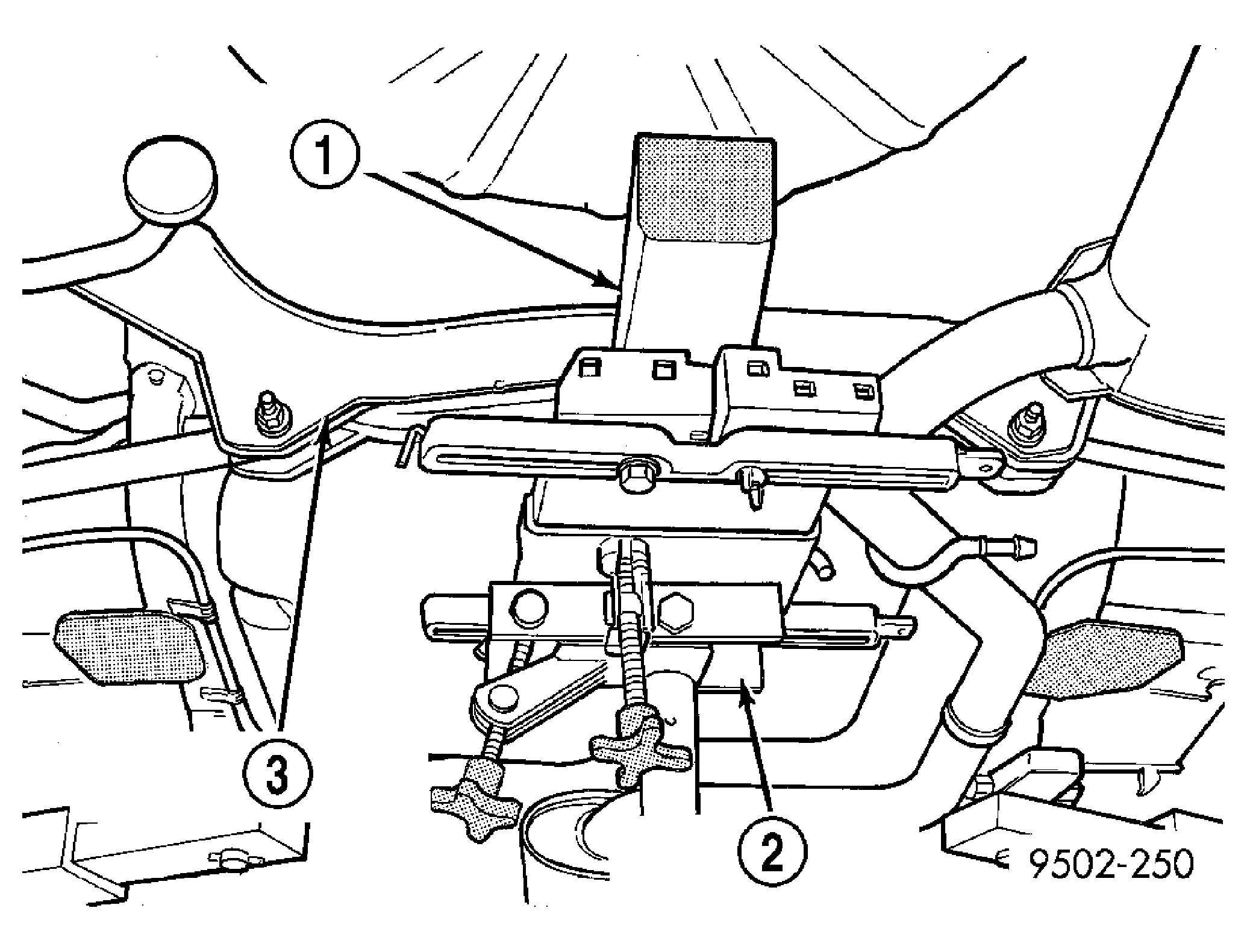

1 - WOODEN BLOCK 2 - TRANSMISSION JACK 3 - REAR SUSPENSION CROSSMEMBER - Remove the 4 bolts attaching rear suspension crossmember to rear frame rails. See Fig 7.
1 - ATTACHING BOLTS 2 - ATTACHING BOLTS 3 - REAR SUSPENSION CROSSMEMBER CAUTION: When lowering rear suspension crossmember do not put a strain on the rear brake flex hoses. - Lower the rear suspension crossmember far enough to access the upper control arm pivot bar to crossmember attaching bolts.
- Remove the 2 bolts attaching the upper control arm to the rear suspension crossmember. See Fig 8.

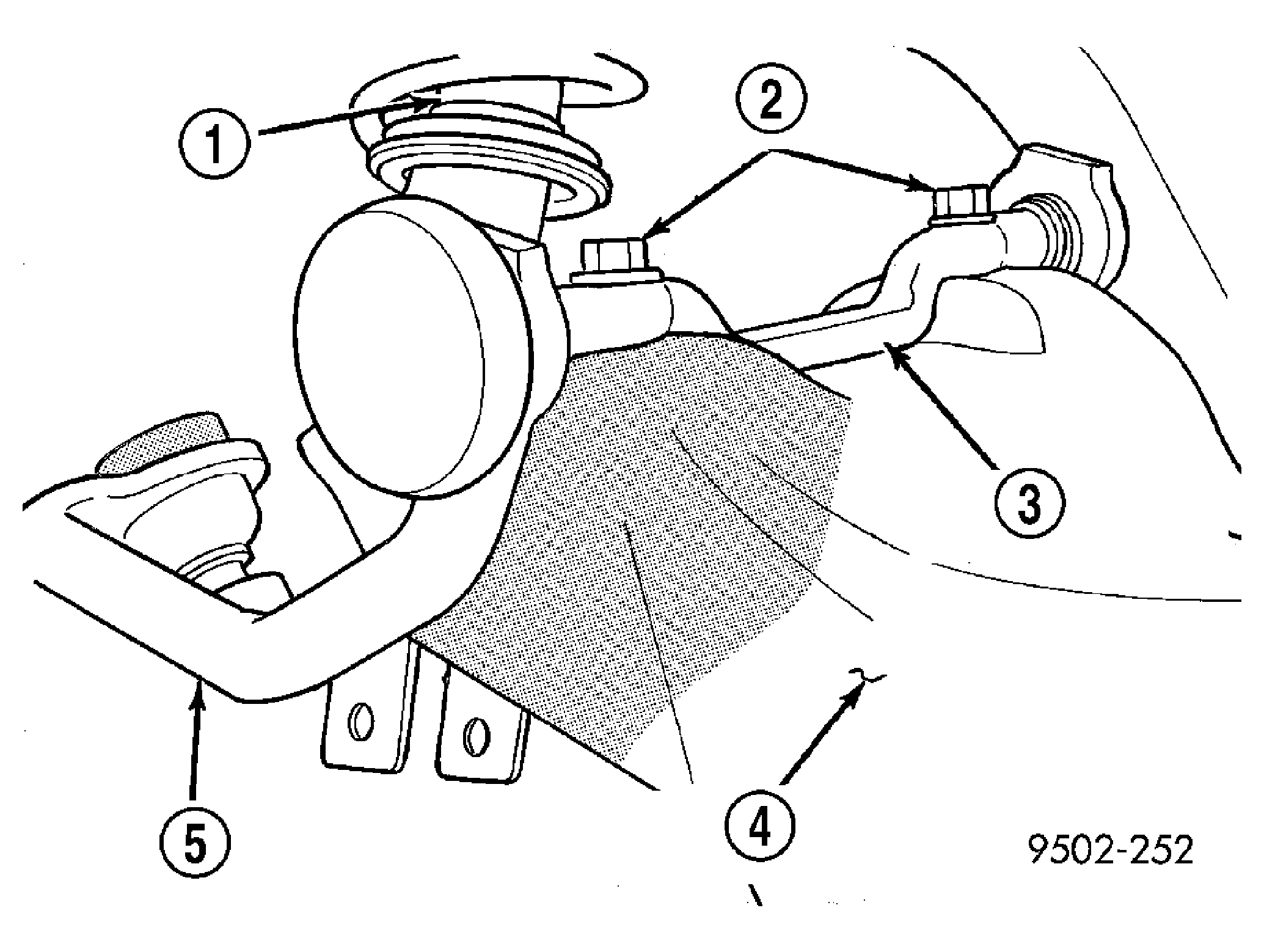

1 - SHOCK ABSORBER 2 - ATTACHING BOLTS 3 - UPPER CONTROL ARM PIVOT BAR 4 - REAR SUSPENSION CROSSMEMBER 5 - UPPER CONTROL ARM - Remove the upper control arm from the rear suspension crossmember.
- Transfer any required components to the replacement control arm.
