Disassembly - Upper Ball Joint

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The rear upper control arm must be removed from the vehicle for replacement of the ball joint. (Refer to SUSPENSION/REAR/UPPER CONTROL ARM - REMOVAL)

Position Receiving Cup, Special Tool 6758, to support control arm when removing ball joint assembly. See Fig 1. Install Remover/Installer, Special Tool 6804 on top of ball joint assembly. See Fig 1.

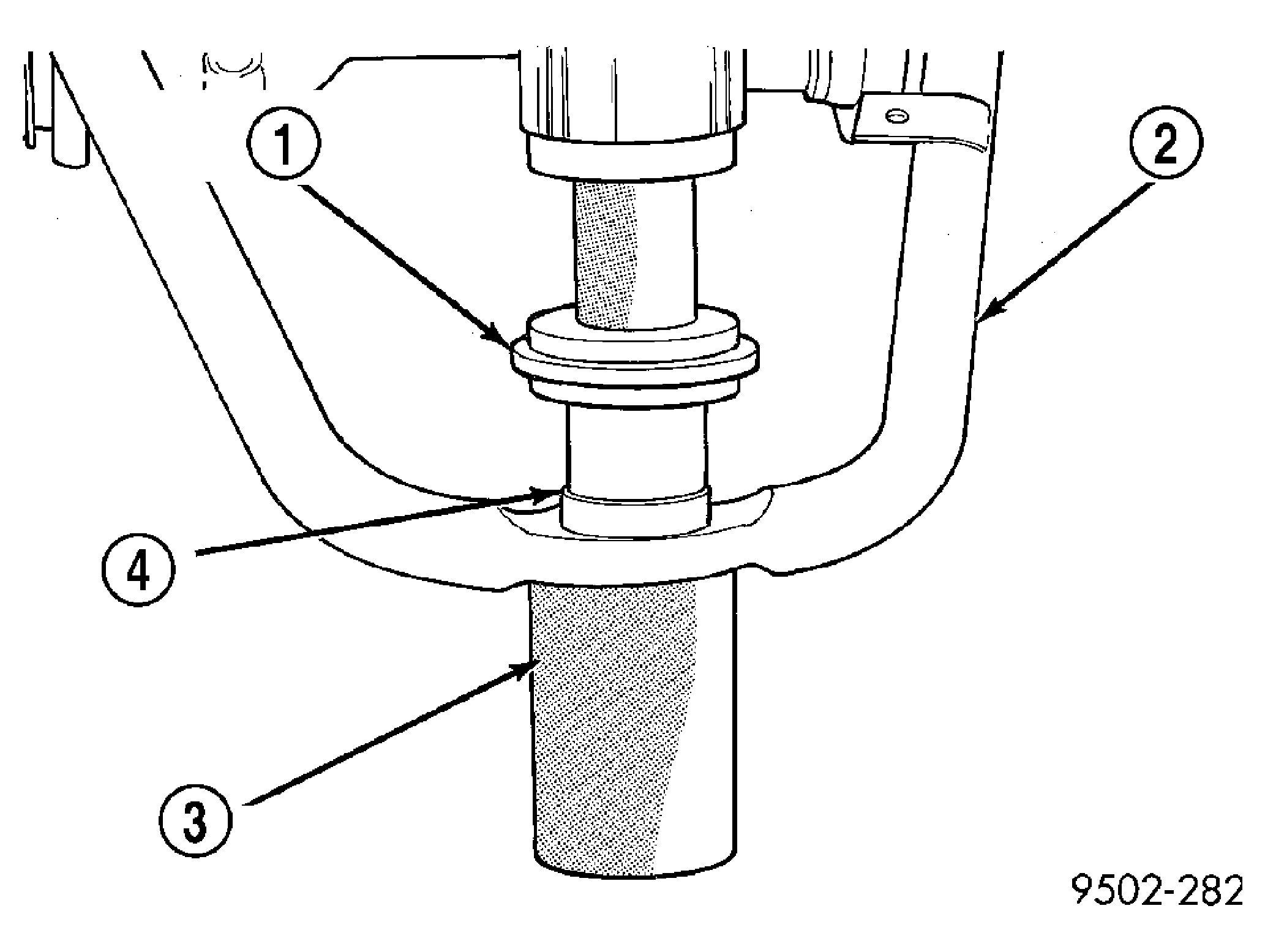

Fig 1: Removing Ball Joint From Upper Control Arm

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL 6804

2 - CONTROL ARM

3 - SPECIAL TOOL 6758

4 - BALL JOINT

Using an arbor press, press the ball joint assembly out of the control arm.
