Removal - Shock Assembly

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Access for the nuts attaching the rear shock assembly upper mount to the vehicle is through the inside of the trunk.

Roll back carpeting on top of the rear shock tower to access shock mounting nuts.
Remove plastic cover from the top of the shock assembly.
Remove 2 nuts attaching the shock assembly upper mount/spring seat to the shock tower.
Raise vehicle on jackstands or centered on a frame contact type hoist. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
Remove the rear wheel and tire assembly from the vehicle.
Remove two fasteners holding the splash shield to the shock assembly upper mount.

Remove bolt attaching shock absorber to rear knuckle. See Fig 1.

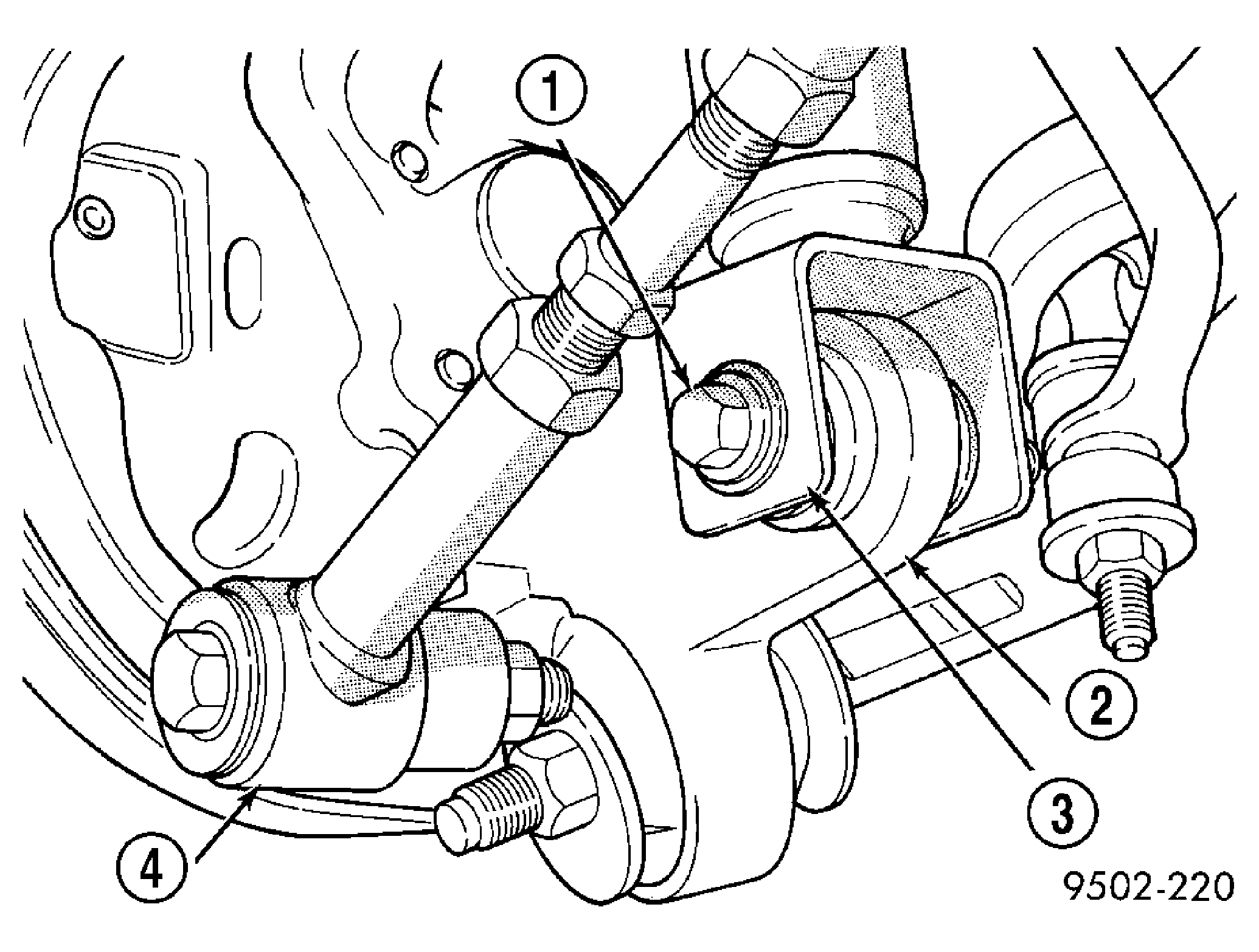

Fig 1: Shock Absorber Attachment To Knuckle

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING BOLT

2 - REAR KNUCKLE

3 - SHOCK ABSORBER CLEVIS BRACKET

4 - LATERAL LINK

Remove the shock absorber from the rear knuckle first when removing the shock absorber from vehicle by pushing down on the rear suspension.
Move shock assembly downward and tilt top of shock outward, then remove shock assembly from vehicle through top of wheel opening.
