Tie Rod - Outer: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
Remove wheel and tire assembly.

Loosen inner tie rod-to-outer tie rod jam nut. See Fig 1.

Fig 1: Tie Rod Jam Nut

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTER TIE ROD

2 - INNER TIE ROD

3 - JAM NUT

Remove nut attaching outer tie rod to steering knuckle. See Fig 2. Nut is removed from tie rod by holding tie rod stud with a socket while loosening and removing nut with wrench.

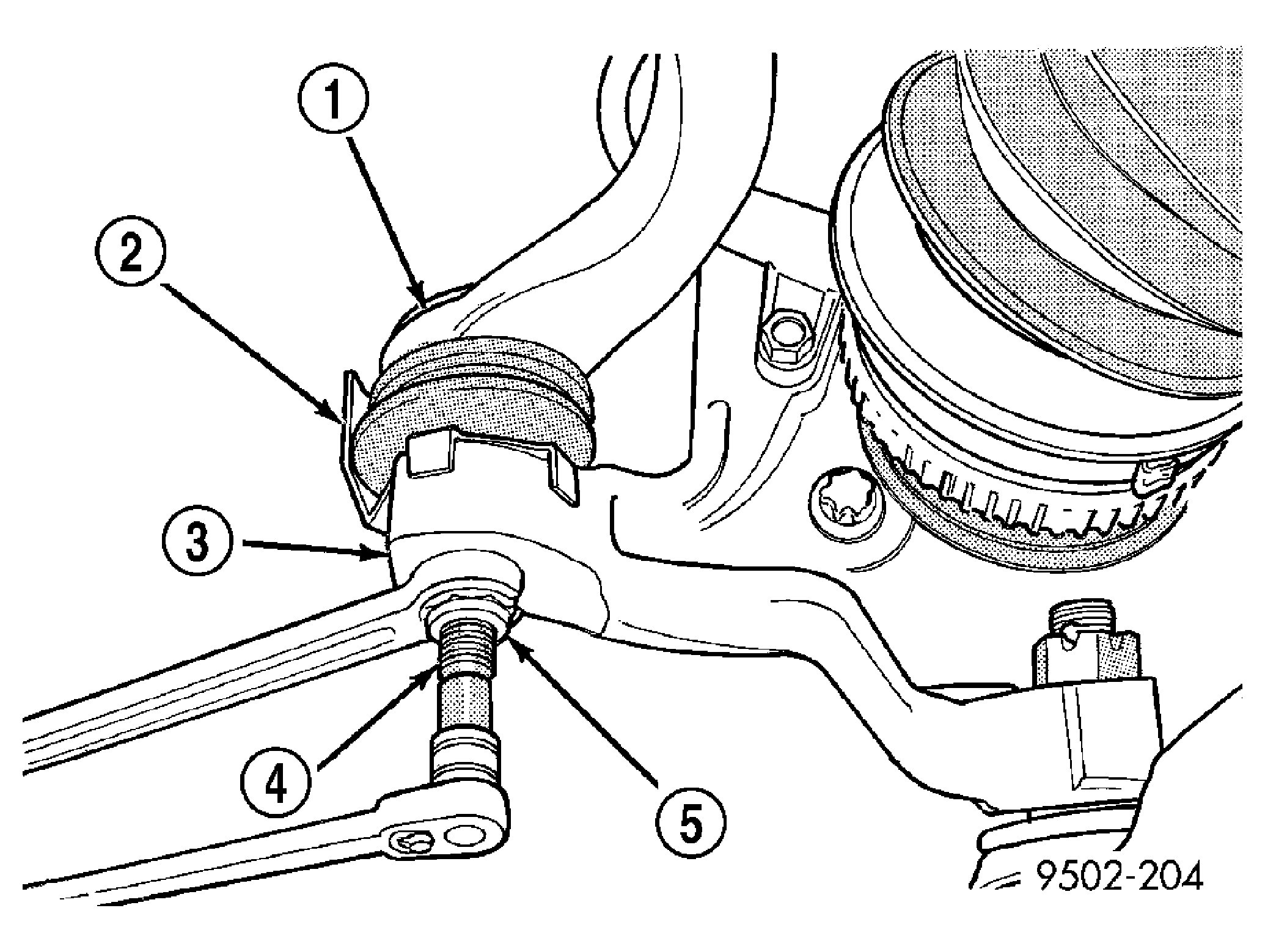

Fig 2: Removing Outer Tie Rod Nut

Courtesy of DAIMLERCHRYSLER CORP.

1 - TIE ROD

2 - HEAT SHIELD

3 - STEERING KNUCKLE

4 - TIE ROD STUD

5 - NUT

Remove tie rod stud from steering knuckle using Remover, Special Tool C-3894-A.
Remove outer tie rod from inner tie rod by un-threading it.
