Right Mount: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

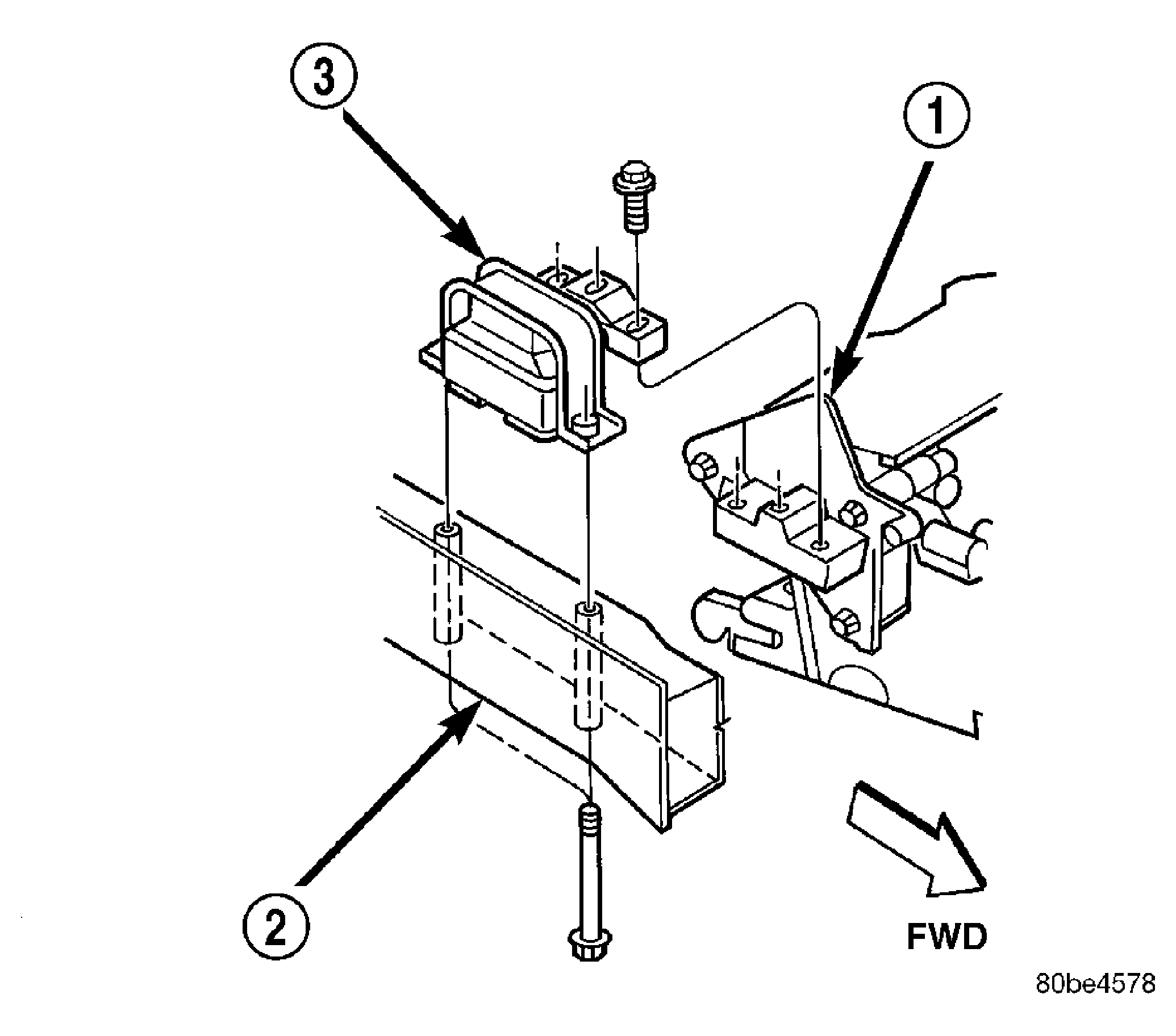

  1. Position right engine mount and install frame rail to mount bolts. Tighten bolts to 61 N.m (45 ft. lbs.). See Figure.
  2. Install the mount to engine support bracket bolts and tighten to 61 N.m (45 ft. lbs.). See Figure.
  3. Raise vehicle on a hoist.
  4. Install heater tube rear attaching screw.
  5. Install inner splash shield and lower vehicle.
  6. Install heater tube front attaching screw.
  7. Install coolant recovery container (Refer to COOLING/ENGINE/COOLANT RECOVERY CONTAINER - INSTALLATION) .
