Crankshaft Oil Seal - Front: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belts. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
  2. Remove the crankshaft vibration damper. (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL)
  3. Remove the timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL)
  4. Remove the crankshaft sprocket using Special Tool 6793 and insert C-4685-C2. See Fig 1.
  5. Remove the crankshaft sprocket key from crankshaft. See Fig 2.
    CAUTION: Do not nick shaft seal surface or seal bore.
    Fig 1: Crankshaft Sprocket - Removal
    GC0021079Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6793
    2 - SPECIAL TOOL C-4685-C2
    3 - CRANKSHAFT SPROCKET
    Fig 2: Crankshaft Key
    GC0021080Courtesy of DAIMLERCHRYSLER CORP.
    1 - CRANKSHAFT KEY
  6. Using Special Tool 6771, remove front crankshaft oil seal. See Fig 3. Do not damage the seal contact area on the crankshaft.

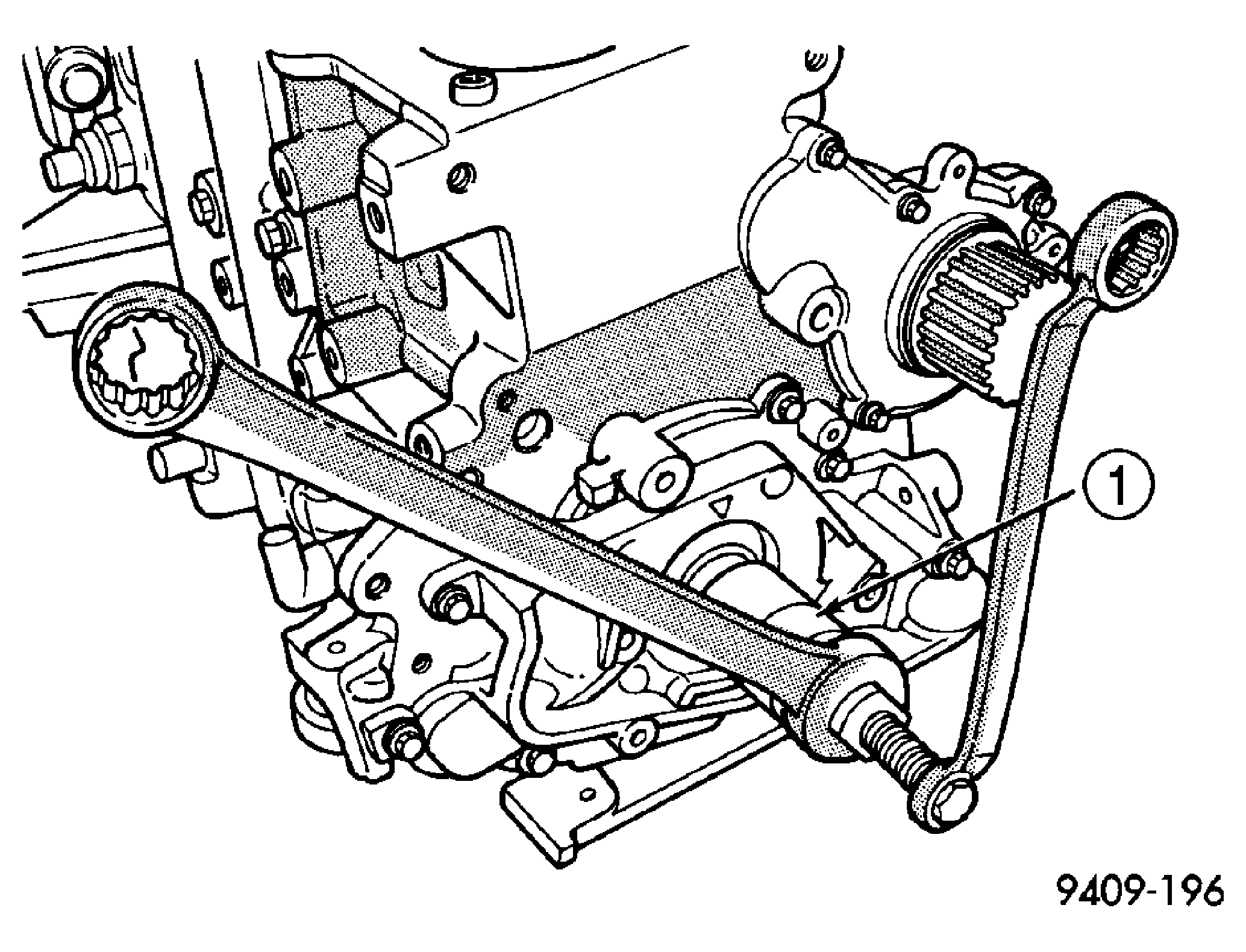

Fig 3: Front Crankshaft Oil Seal-Removal
GC0021081Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL 6771
