Crankshaft Oil Seal - Front: Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Position seal into opening with seal spring towards the inside of engine. Using Special Tool 6780-1, install seal until flush with cover. See Fig 1.

Fig 1: Crankshaft Front Oil Seal Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROTECTOR

2 - SEAL

3 - SPECIAL TOOL 6780-1

4 - INSTALLER

Install the crankshaft sprocket key. See Figure.
Install the crankshaft sprocket using Special Tool 6792. See Fig 2.
NOTE: Make sure the word "front" on the sprocket is facing outward.

CAUTION: Use of Special Tool 6792 is required to install the crankshaft sprocket to the proper depth. Failure to use this tool will cause improper timing belt tracking.

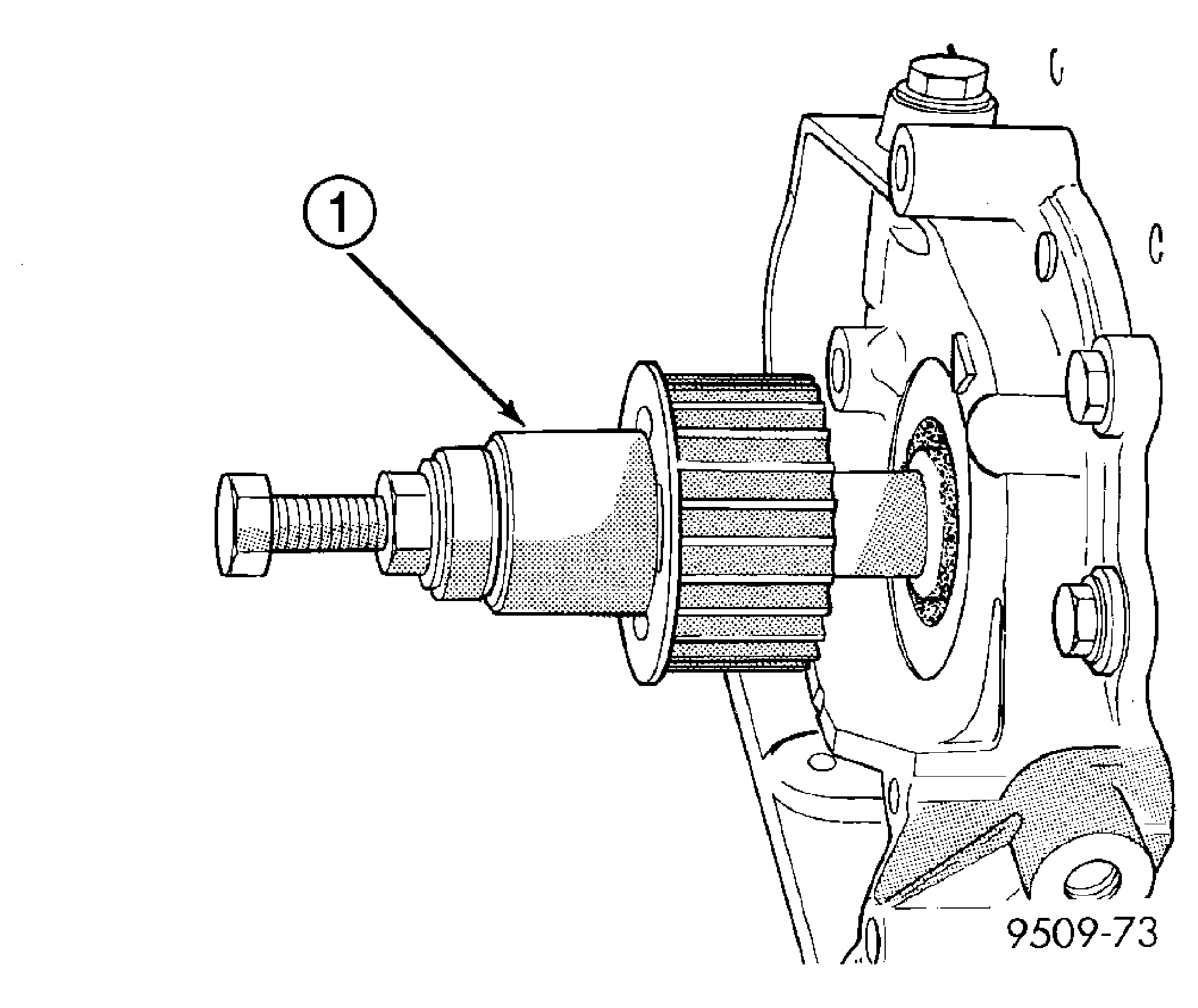

Fig 2: Crankshaft Sprocket - Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL 6792
Install the timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION)
Install crankshaft vibration damper. (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION)
Install accessory drive belts. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION)
