<< A >> Rocker Arms And Shaft Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the lash adjuster is re-used, clean the lash adjuster. (Refer to >> D << CAMSHAFT OIL SEAL INSTALLATION  .)

Set special tool MD998443 to prevent the lash adjuster coming free and falling to the floor.

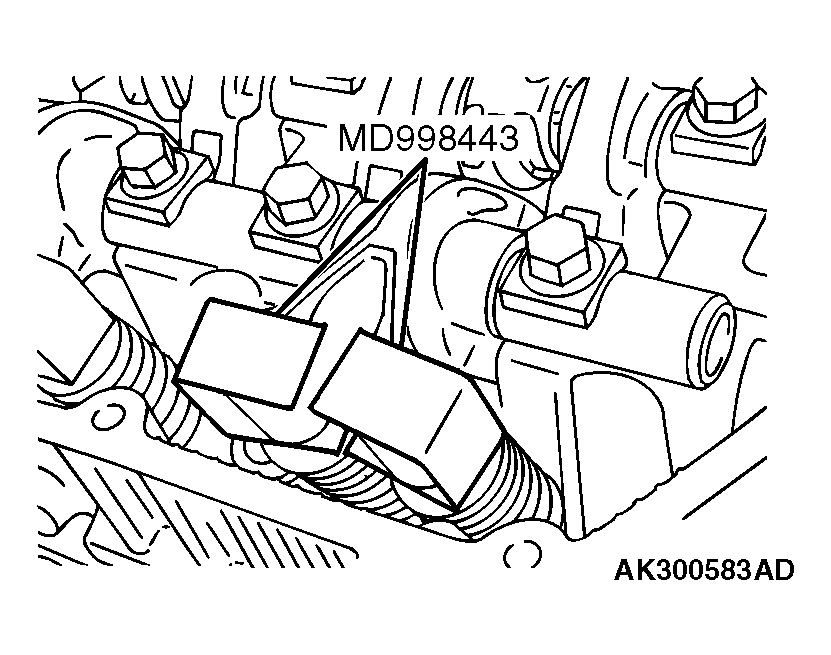

Fig 1: Removing Rocker Arms And Shaft
G04538415Courtesy of DAIMLERCHRYSLER CORPORATION
