>> D << Camshaft Oil Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Apply engine oil to the lip area of the oil seal and the front end outside diameter of the camshaft.
Using special tools MD998713 and MB991559 (for the left bank only), install the camshaft oil seals.

Fig 1: Installing Camshaft Oil Seals Using Special Tools MD998713 And MB991559 (Right Bank Side)
Courtesy of DAIMLERCHRYSLER CORPORATION

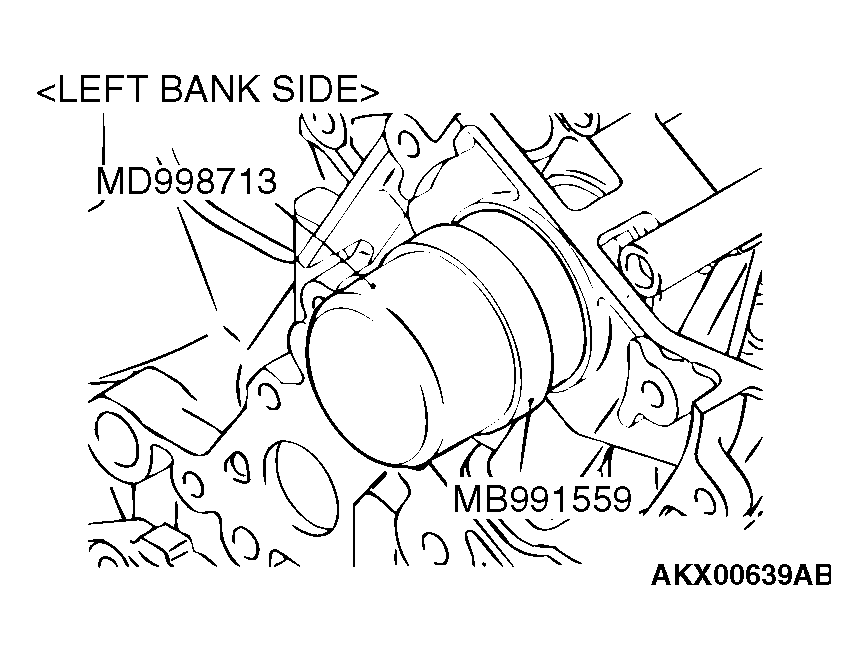

Fig 2: Installing Camshaft Oil Seals Using Special Tools MD998713 And MB991559 (Left Bank Side)
Courtesy of DAIMLERCHRYSLER CORPORATION
