INSPECTION PROCEDURE O-7: The driver's seat belt switch is not sent to the ETACS-ECU.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the driver's seat belt switch.
    TESTER CONNECTION SPECIFIED CONDITION CHART

    ITEM TESTER CONNECTION SPECIFIED CONDITION
    Fastened seat belt 1 - 2 Open circuit
    Unfastened seat belt 1 - 2 Less than 2 ohms

    Q: Is the driver's seat belt switch in good condition?

    YES  : Go to Step 2.

    NO:  Replace the driver's inner seat belt. The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 1: Identifying Connector D-15
    G04541327Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 2: Identifying Seat Belts Switch
    G04541328Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the ground circuit to the driver's seat belt switch. Test at driver's seat belt switch connector D-15.
    1. Disconnect driver's seat belt switch connector D-15 and measure the resistance available at the wiring harness side of the connector.
      Fig 3: Identifying Connector D-15
      G04541329Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the resistance between terminal 2 and ground.
      • The resistance should equal 2 ohms or less.

    Q: Is the measured resistance 2 ohms or less?

    YES  : Go to  Step 5.

    NO:  Go to Step 3.

    Fig 4: Measuring Resistance Between Terminal 2 And Ground
    G04541330Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the driver's seat belt switch connector D-15 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is driver's seat belt switch connector D-15 in good condition?

    YES  : Go to Step 4.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 5: Identifying Connector D-15
    G04541331Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the wiring harness between driver's seat belt switch connector D-15 (terminal 2) and ground.

    Q: Is the wiring harness between driver's seat belt switch connector D-15 (terminal 2) and ground in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 6: Identifying Connector D-15
    G04541332Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the driver's seat belt switch connector D-15 and ETACS-ECU connector C-317 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are driver's seat belt switch connector D-15 and ETACS-ECU connector C-317 in good condition?

    YES  : Go to Step 6.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 7: Identifying Connector D-15 - Harness Side
    G04541333Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 8: Identifying Connector C-317 - Harness Side
    G04541334Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check the wiring harness between driver's seat belt switch connector D-15 (terminal 1) and ETACS-ECU connector C-317 (terminal 21).
    Fig 9: Identifying Connector D-15
    G04541335Courtesy of DAIMLERCHRYSLER CORPORATION

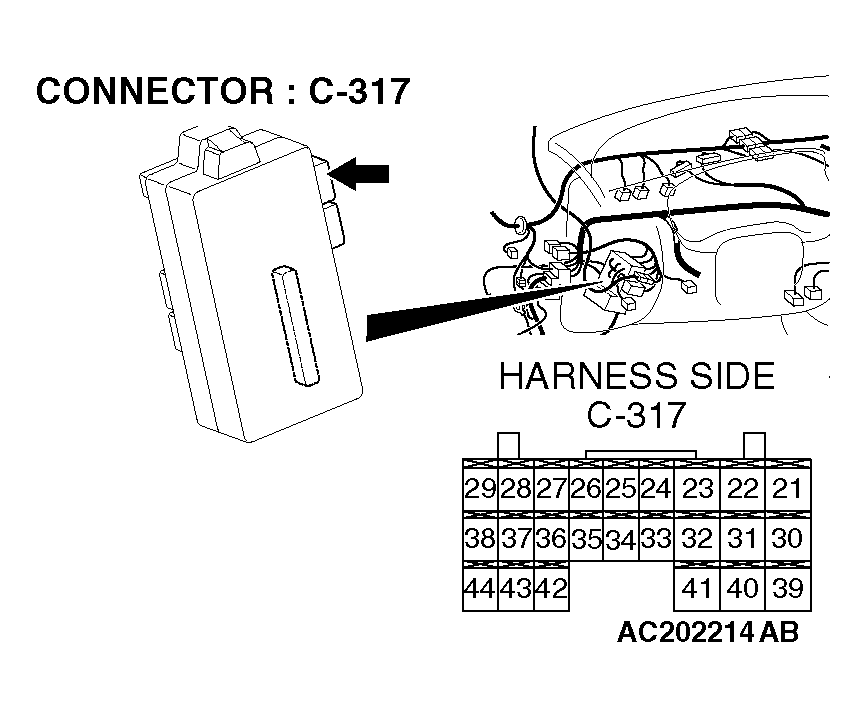

    Fig 10: Identifying Connector C-317 - Harness Side
    G04541336Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-210 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-210 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between driver's seat belt switch connector D-15 (terminal 1) and ETACS-ECU connector C-317 (terminal 21) in good condition?

    YES  : Replace the ETACS-ECU. The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The driver's seat belt switch input signal should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 11: Identifying Connector C-210
    G04541337Courtesy of DAIMLERCHRYSLER CORPORATION
