INSPECTION PROCEDURE 4: No Sound from One Speaker. < Vehicles with Amplifier >: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

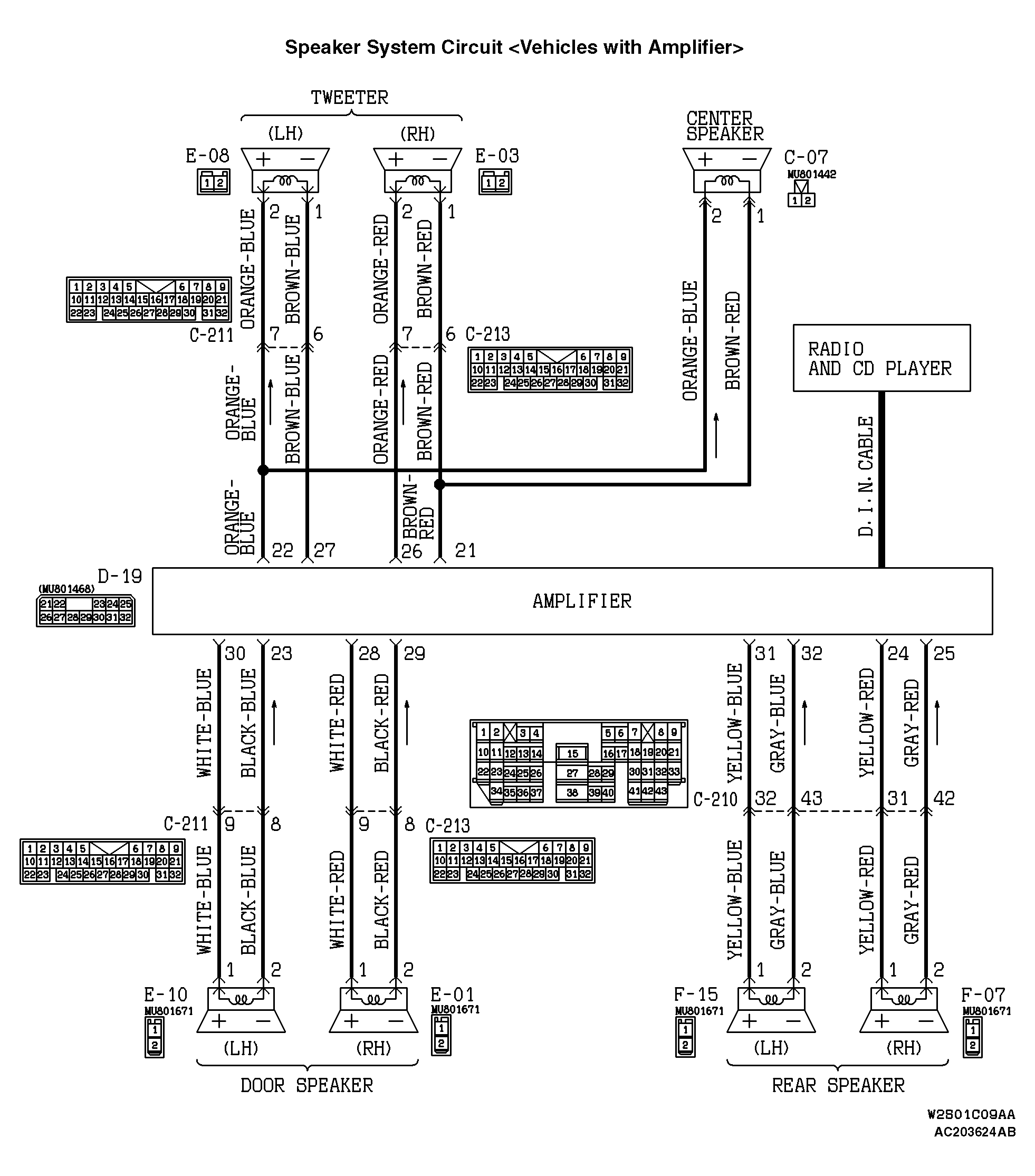

Fig 1: Speaker System Circuit Diagram - Vehicles With Amplifier
G04537625Courtesy of DAIMLERCHRYSLER CORPORATION

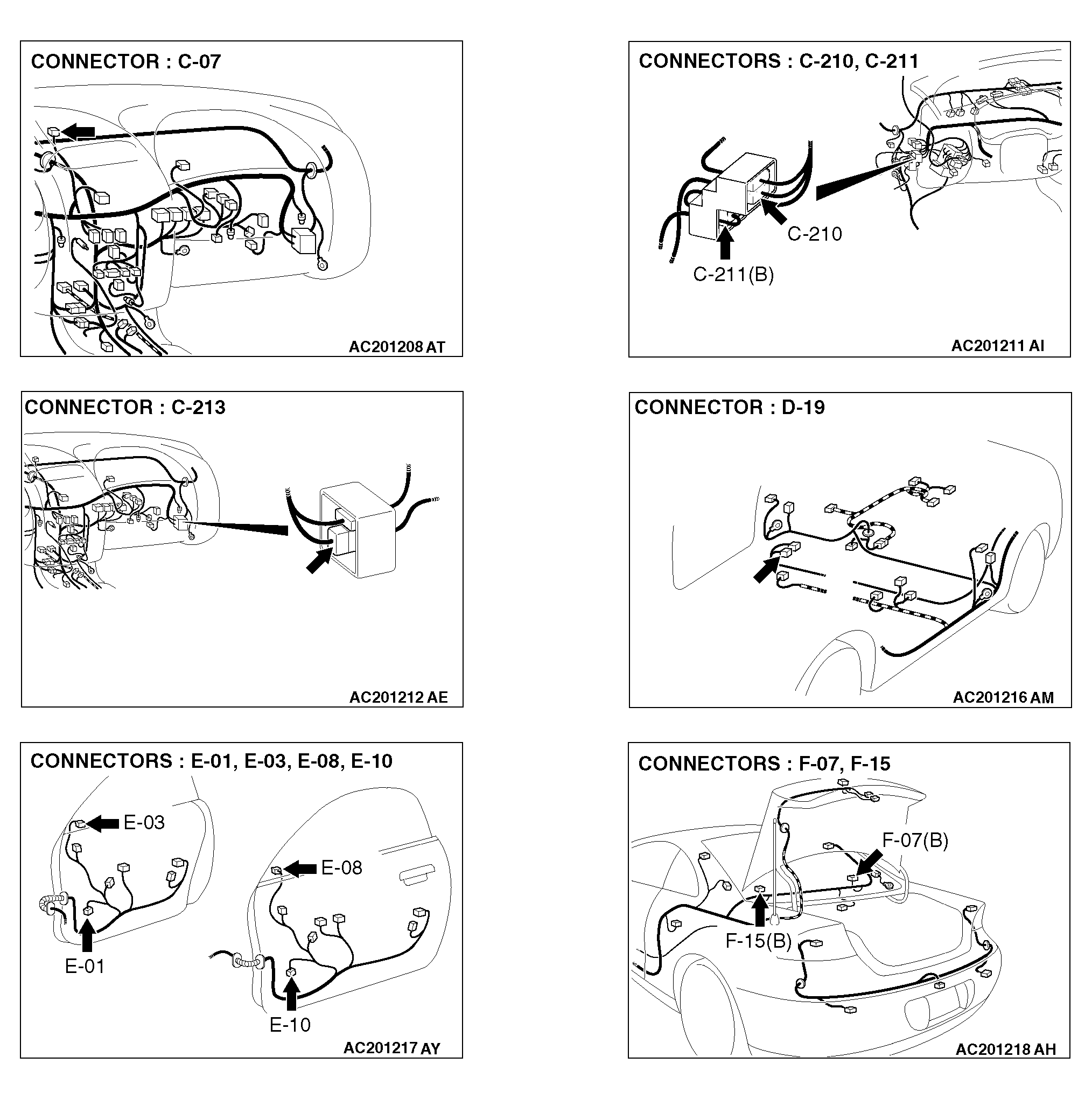

Fig 2: Identifying Connector Terminals
G04537626Courtesy of DAIMLERCHRYSLER CORPORATION
