INSPECTION PROCEDURE 4: No Sound from One Speaker. < Vehicles with Amplifier >: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. STEP 1. Check to see which speaker dose not sound.

    Determine which speaker does not sound.

    Q: Which speaker is not sounding?

    Door speaker (LH)  : Go to Step 2.

    Door speaker (RH)  : Go to  Step 6.

    Rear speaker (LH)  : Go to  Step 10.

    Rear speaker (RH)  : Go to  Step 14.

    Tweeter (LH)  : Go to  Step 18.

    Tweeter (RH)  : Go to  Step 22.

    Center speaker  : Go to  Step 26.

  2. STEP 2. Check the door speaker (LH).
    1. Remove the door speaker (LH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the door speaker (LH) generates noise when a five-volt voltage is applied on the door speaker (LH) terminal.

    Q: Is the door speaker (LH) generating noise?

    YES  : Go to Step 3.

    NO:  Replace the door speaker (LH). The door speaker (LH) should sound.

    Fig 1: Identifying Door Speaker
    G04537627Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check door speaker (LH) connector E-10 and radio and audio amplifier connector D-19 for damage.

    Q: Are door speaker (LH) connector E-10 and radio and audio amplifier connector D-19 in good condition?

    YES  : Go to Step 4.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The door speaker (LH) should sound.

    Fig 2: Identifying Radio and CD Player Connector D-19
    G04537628Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 3: Identifying Radio and CD Player Connector E-10
    G04537629Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the wiring harnesses between door speaker (LH) connector E-10 (terminals 1 and 2) and amplifier connector D-19 (terminals 30 and 23).
    Fig 4: Identifying Radio and CD Player Connector D-19
    G04537630Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 5: Identifying Radio and CD Player Connector E-10
    G04537631Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-211. If intermediate connector C-211 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between door speaker (LH) connector E-10 (terminals 1 and 2) and amplifier connector D-19 (terminal 30s and 23) in good condition?

    YES  : Go to Step 5.

    NO:  Repair the wiring harness(es). The door speaker (LH) should sound.

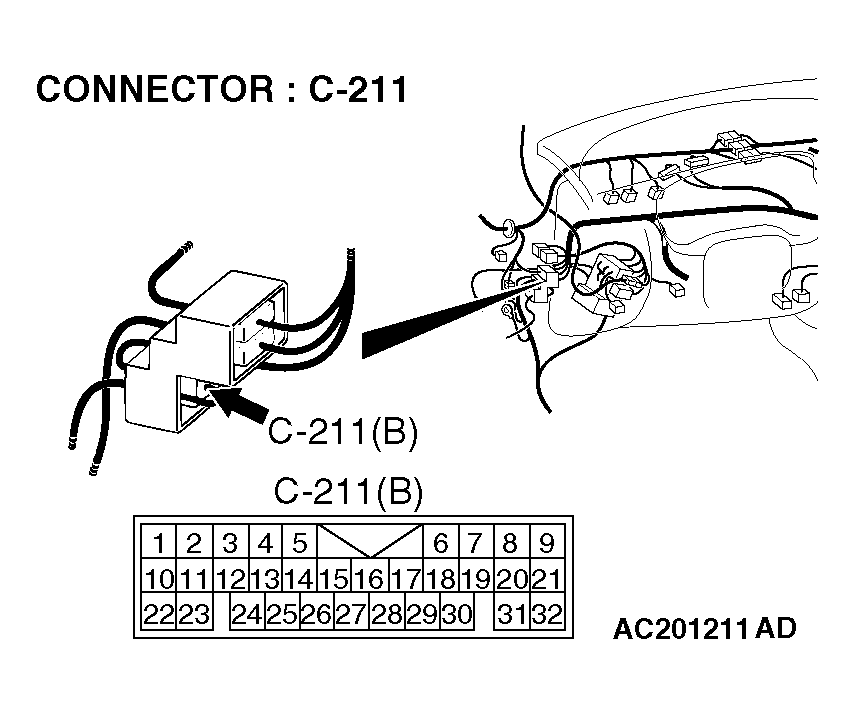

    Fig 6: Identifying Radio and CD Player Connector C-211
    G04537632Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The front speaker (LH) should sound.

  6. STEP 6. Check the door speaker (RH).
    1. Remove the door speaker (RH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the door speaker (RH) generates noise when a five-volt voltage is applied on the door speaker (RH) terminal.

    Q: Is the door speaker (RH) generating noise?

    YES  : Go to Step 7.

    NO:  Replace the door speaker (RH). The door speaker (RH) should sound.

    Fig 7: Identifying Door Speaker
    G04537633Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check door speaker (RH) connector E-01 and amplifier connector D-19 for damage.

    Q: Are door speaker (RH) connector E-01 and amplifier connector D-19 in good condition?

    YES  : Go to Step 8.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The door speaker (RH) should sound.

    Fig 8: Identifying Radio and CD Player Connector D-19
    G04537634Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 9: Identifying Radio and CD Player Connector E-01
    G04537635Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Check the wiring harnesses between door speaker (RH) connector E-01 (terminals 1 and 2) and amplifier connector D-19 (terminals 28 and 29).
    Fig 10: Identifying Radio and CD Player Connector D-19
    G04537636Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 11: Identifying Radio and CD Player Connector E-01
    G04537637Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-213. If intermediate connector C-213 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between door speaker (RH) connector E-01 (terminals 1 and 2) and amplifier connector D-19 (terminals 28 and 29) in good condition?

    YES  : Go to Step 9.

    NO:  Repair the wiring harness(es). The door speaker (RH) should sound.

    Fig 12: Identifying Radio and CD Player Connector C-213
    G04537638Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The front speaker (RH) should sound.

  10. STEP 10. Check the rear speaker (LH).
    1. Remove the rear speaker (LH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the rear speaker (LH) generates noise when a five-volt voltage is applied on the rear speaker (LH) terminal.

    Q: Is the rear speaker (LH) generating noise?

    YES  : Go to Step 11.

    NO:  Replace the rear speaker (LH). The rear speaker (LH) should sound.

    Fig 13: Identifying Speaker
    G04537639Courtesy of DAIMLERCHRYSLER CORPORATION
  11. STEP 11. Check rear speaker (LH) connector F-15 and amplifier connector D-19 for damage.

    Q: Are rear speaker (LH) connector F-15 and amplifier connector D-19 in good condition?

    YES  : Go to Step 12.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The rear speaker (LH) should sound.

    Fig 14: Identifying Radio and CD Player Connector D-19
    G04537640Courtesy of DAIMLERCHRYSLER CORPORATION

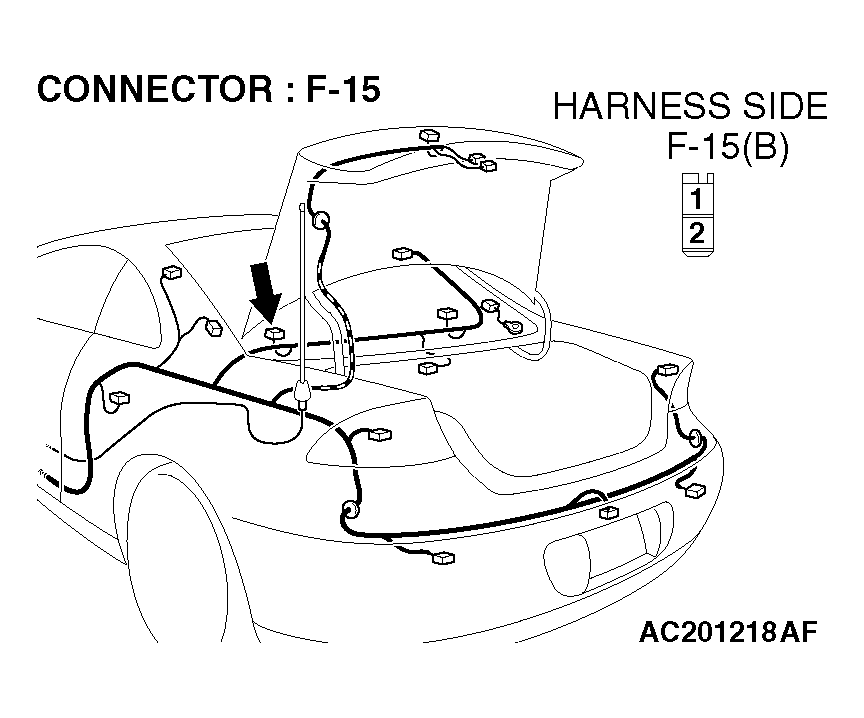

    Fig 15: Identifying Radio and CD Player Connector F-15
    G04537641Courtesy of DAIMLERCHRYSLER CORPORATION
  12. STEP 12. Check the wiring harness between rear speaker (LH) connector F-15 (terminals 1 and 2) and amplifier connector D-19 (terminals 31 and 32).
    Fig 16: Identifying Radio and CD Player Connector D-19
    G04537642Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 17: Identifying Radio and CD Player Connector F-15
    G04537643Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-210. If intermediate connector C-210 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between rear speaker (LH) connector F-15 (terminals 1 and 2) and amplifier connector D-19 (terminals 31 and 32) in good condition?

    YES  : Go to Step 13.

    NO:  Repair the wiring harness(es). The rear speaker (LH) should sound.

    Fig 18: Identifying Radio and CD Player Connector C-210
    G04537644Courtesy of DAIMLERCHRYSLER CORPORATION
  13. STEP 13. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The rear speaker (LH) should sound.

  14. STEP 14. Check the rear speaker (RH).
    1. Remove the rear speaker (RH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the rear speaker (RH) generates noise when a five-volt voltage is applied on the rear speaker (RH) terminal.

    Q: Is the rear speaker (RH) generating noise?

    YES  : Go to Step 15.

    NO:  Replace the rear speaker (RH). The rear speaker (RH) should sound.

    Fig 19: Identifying Speaker
    G04537645Courtesy of DAIMLERCHRYSLER CORPORATION
  15. STEP 15. Check rear speaker (RH) connector F-07 and amplifier connector D-19 for damage.

    Q: Are rear speaker (RH) connector F-07 and amplifier connector D-19 in good condition?

    YES  : Go to Step 16.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The rear speaker (RH) should sound.

    Fig 20: Identifying Radio and CD Player Connector D-19
    G04537646Courtesy of DAIMLERCHRYSLER CORPORATION

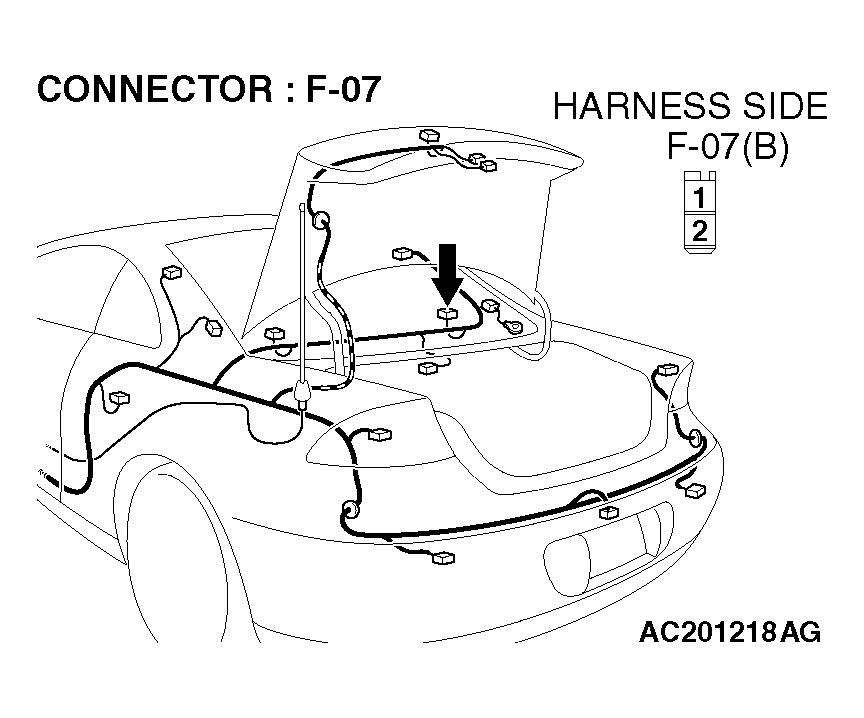

    Fig 21: Identifying Radio and CD Player Connector F-07
    G04537647Courtesy of DAIMLERCHRYSLER CORPORATION
  16. STEP 16. Check the wiring harnesses between door speaker (RH) connector F-07 (terminals 1 and 2) and audio amplifier connector D-19 (terminals 24 and 25).
    Fig 22: Identifying Radio and CD Player Connector D-19
    G04537648Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 23: Identifying Radio and CD Player Connector F-07
    G04537649Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-210. If intermediate connector C-210 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between door speaker (RH) connector F-07 (terminals 1 and 2) and audio amplifier connector D-19 (terminals 24 and 25) in good condition?

    YES  : Go to Step 17.

    NO:  Repair the wiring harness(es). The rear speaker (RH) should sound.

    Fig 24: Identifying Intermediate Connector C-210
    G04537650Courtesy of DAIMLERCHRYSLER CORPORATION
  17. STEP 17. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The rear speaker (RH) should sound.

  18. STEP 18. Check the tweeter (LH).
    1. Remove the tweeter (LH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the tweeter (LH) generates noise when a five-volt voltage is applied on the tweeter (LH) terminal.

    Q: Is the tweeter (LH) generating noise?

    YES  : Go to Step 19.

    NO:  Replace the tweeter (LH). The tweeter (LH) should sound.

    Fig 25: Identifying Tweeter
    G04537651Courtesy of DAIMLERCHRYSLER CORPORATION
  19. STEP 19. Check tweeter (LH) connector E-08 and amplifier connector D-19 for damage.

    Q: Are tweeter (LH) connector E-08 and amplifier connector D-19 in good condition?

    YES  : Go to Step 20.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The tweeter (LH) should sound.

    Fig 26: Identifying Amplifier Connector D-19
    G04537652Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 27: Identifying Harness Connector E-08
    G04537653Courtesy of DAIMLERCHRYSLER CORPORATION
  20. STEP 20. Check the wiring harnesses between tweeter (LH) connector E-08 (terminals 1 and 2) and amplifier connector D-19 (terminals 27 and 22).
    Fig 28: Identifying Amplifier Connector D-19
    G04537654Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 29: Identifying Amplifier Connector E-08
    G04537655Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-211. If intermediate connector C-211 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between tweeter (LH) connector E-08 (terminals 1 and 2) and amplifier connector D-19 (terminals 27 and 22) in good condition?

    YES  : Go to Step 21.

    NO:  Repair the wiring harness(es). The tweeter (LH) should sound.

    Fig 30: Identifying Intermediate Connector C-211
    G04537656Courtesy of DAIMLERCHRYSLER CORPORATION
  21. STEP 21. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The tweeter (LH) should sound.

  22. STEP 22. Check the tweeter (RH).
    1. Remove the tweeter (RH). Refer to REMOVAL AND INSTALLATION  .
    2. Check that the tweeter (RH) generates noise when a five-volt voltage is applied on the tweeter (RH) terminal.

    Q: Is the tweeter (RH) generating noise?

    YES  : Go to Step 23.

    NO:  Replace the tweeter (RH). The tweeter (RH) should sound.

    Fig 31: Identifying Amplifier Connector D-19
    G04537657Courtesy of DAIMLERCHRYSLER CORPORATION
  23. STEP 23. Check tweeter (RH) connector E-03 and amplifier connector D-19 for damage.

    Q: Are tweeter (RH) connector E-03 and amplifier connector D-19 in good condition?

    YES  : Go to Step 24.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The tweeter (RH) should sound.

    Fig 32: Identifying Harness Connector E-03
    G04537658Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 33: Identifying Intermediate Connector C-213
    G04537659Courtesy of DAIMLERCHRYSLER CORPORATION
  24. STEP 24. Check the wiring harnesses between tweeter (RH) connector E-03 (terminals 1 and 2) and amplifier connector D-19 (terminals 21 and 26).
    Fig 34: Identifying Harness Connector D-19
    G04537660Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 35: Identifying Harness Connector E-03
    G04537661Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-213. If intermediate connector C-213 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harnesses between tweeter (RH) connector E-03 (terminals 1 and 2) and amplifier connector D-19 (terminals 21 and 26) in good condition?

    YES  : Go to Step 25.

    NO:  Repair the wiring harness(es). The tweeter (RH) should sound.

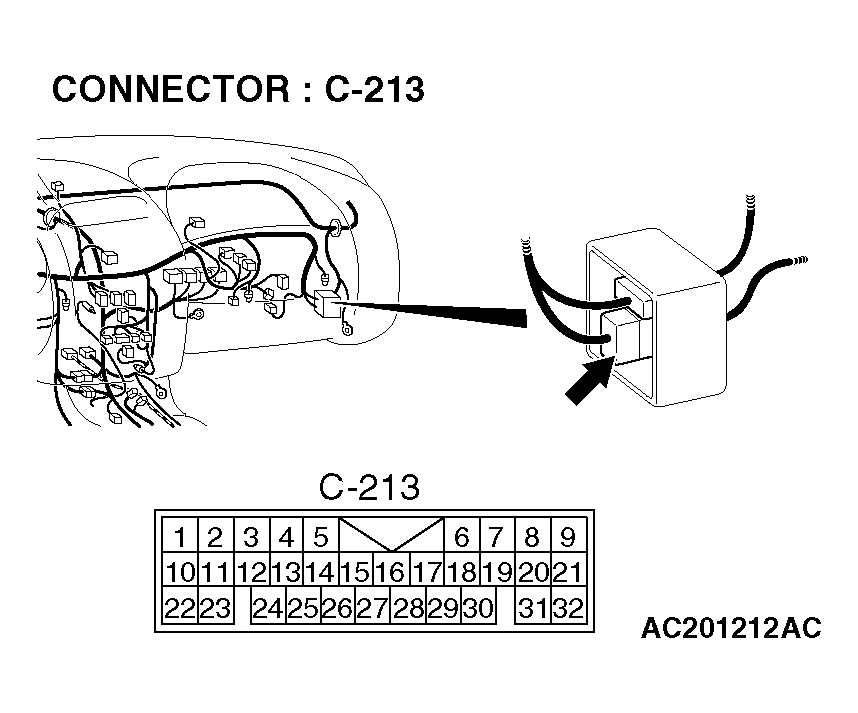

    Fig 36: Identifying Intermediate Connector C-213
    G04537662Courtesy of DAIMLERCHRYSLER CORPORATION
  25. STEP 25. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The tweeter (RH) should sound.

  26. STEP 26. Check the center speaker.
    1. Remove the center speaker. Refer to REMOVAL AND INSTALLATION  .
    2. Check that the center speaker generates noise when a five-volt voltage is applied on the center speaker terminal.

    Q: Is the center speaker generating noise?

    YES  : Go to Step 27.

    NO:  Replace the center speaker. The center speaker should sound.

    Fig 37: Identifying Center Speaker
    G04537663Courtesy of DAIMLERCHRYSLER CORPORATION
  27. STEP 27. Check center speaker connector C-07 and amplifier connector D-19 for damage.

    Q: Are center speaker connector C-07 and amplifier connector D-19 in good condition?

    YES  : Go to Step 28.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION .

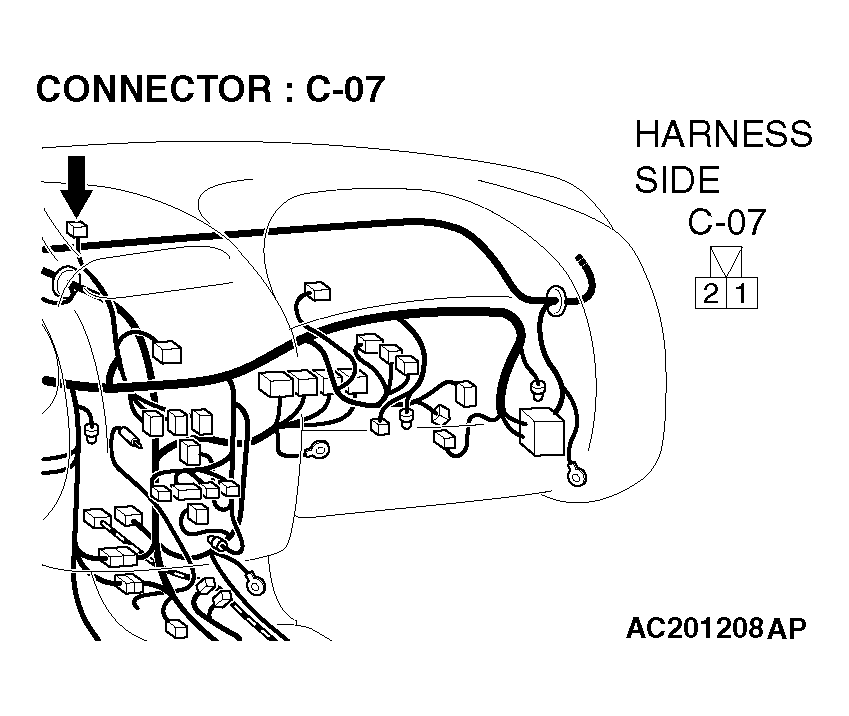

    Fig 38: Identifying Amplifier Connector C-07
    G04537664Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 39: Identifying Harness Connector D-19
    G04537665Courtesy of DAIMLERCHRYSLER CORPORATION
  28. STEP 28. Check the wiring harness between center speaker connector C-07 (terminals 1 and 2) and amplifier connector D-19 (terminals 21 and 26).

    Q: Is the wiring harness between center speaker connector C-07 (terminals 1 and 2) and amplifier connector D-19 (terminals 21 and 26) in good condition?

    YES  : Go to Step 29.

    NO:  Repair the wiring harness. The center speaker should sound.

    Fig 40: Identifying Wiring Harness Connector C-07
    G04537666Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 41: Identifying Wiring Harness Connector D-19
    G04537667Courtesy of DAIMLERCHRYSLER CORPORATION
  29. STEP 29. Replace the radio and CD player.

    Q: Do the speakers sound?

    YES  : There is no action to be taken.

    NO:  Repair or replace the amplifier. The tweeter (RH) should sound.

scientia non olet · About LEMON Manuals
