INSPECTION PROCEDURE 3: No Sound from One Speaker. < Vehicle without Amplifier >: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

STEP 1. Check to see which speaker dose not sound.
Determine which speaker does not sound.

Q: Which speaker is dose not sound?

Door speaker (LH) : Go to Step 2.

Door speaker (RH) : Go to Step 5.

Rear speaker (LH) : Go to Step 8.

Rear speaker (RH) : Go to Step 10.

Tweeter (LH) : Go to Step 14.

Tweeter (RH) : Go to Step 17.
STEP 2. Check the door speaker (LH).
1. Remove the door speaker (LH). Refer to REMOVAL AND INSTALLATION .
2. Check that the door speaker (LH) generates noise when a five-volt voltage is applied on the door speaker (LH) terminal.
Q: Is the door speaker (LH) generating noise?

YES : Go to Step 3.

NO: Replace the door speaker (LH). The door speaker (LH) should sound.

Fig 1: Checking Door Speaker
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 3. Check door speaker (LH) connector E-10, radio and CD player connector C-10 and C-11 for damage.
Q: Are door speaker (LH) connector E-10, radio and CD player connector C-10 and C-11 in good condition?

YES : Go to Step 4.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The door speaker (LH) should sound.

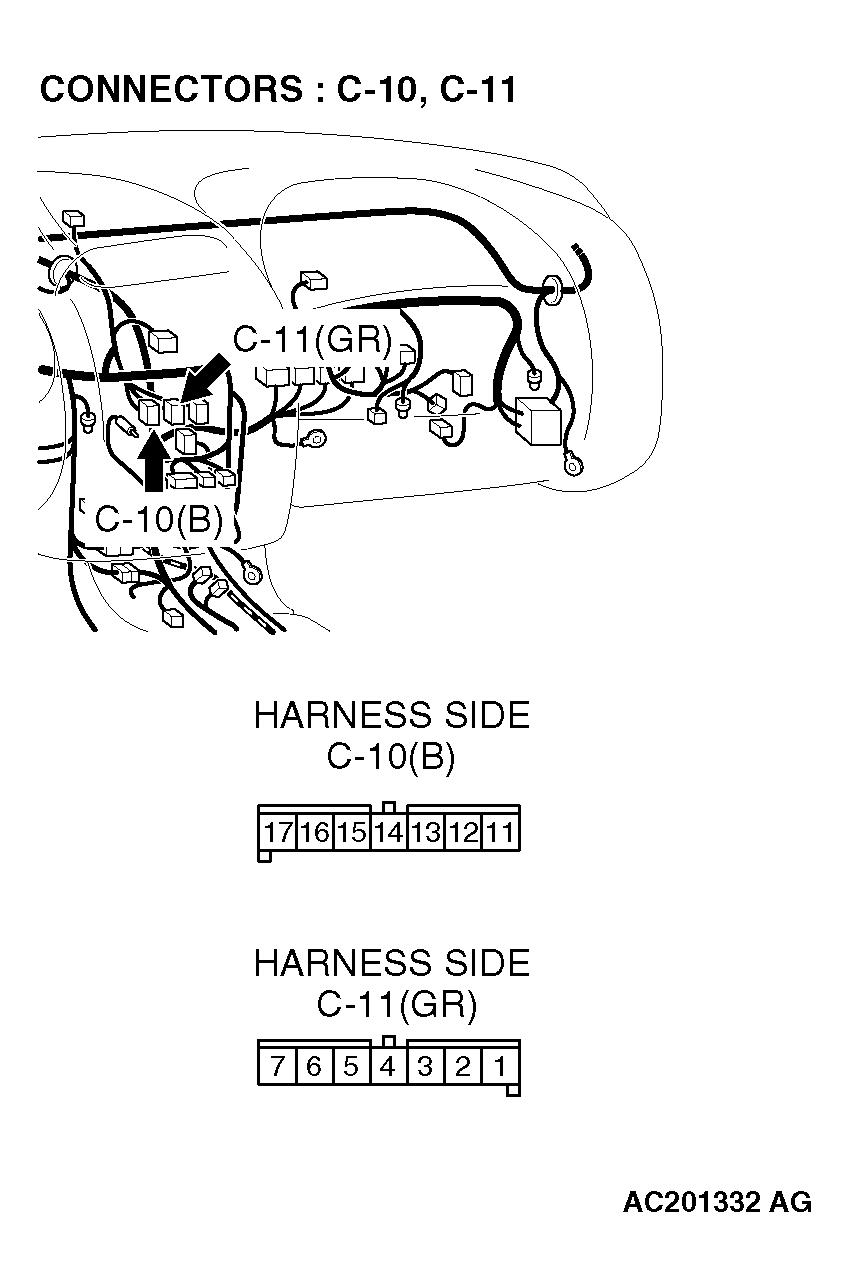

Fig 2: Identifying Radio and CD Player Connector C-10 And C-11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Identifying Radio and CD Player Connector E-10
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 4. Check the wiring harnesses between door speaker (LH) connector E-10 (terminal 1) and radio and CD player connector C-10 (terminal 14), and the wiring harness between door speaker (LH) connector E-10 (terminal 2) and radio and CD player connector C-11 (terminal 2).

Fig 4: Identifying Radio and CD Player Connector C-10 And C-11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Identifying Radio and CD Player Connector E-10
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-211. If intermediate connector C-211 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between door speaker (LH) connector E-10 (terminal 1) and radio and CD player connector C-10 (terminal 14), and the wiring harness between door speaker (LH) connector E-10 (terminal 2) and radio and CD player connector C-11 (terminal 2) in good condition?

YES : Repair or replace the radio and CD player. The door speaker (LH) should sound.

NO: Repair the wiring harness(es). The door speaker (LH) should sound.

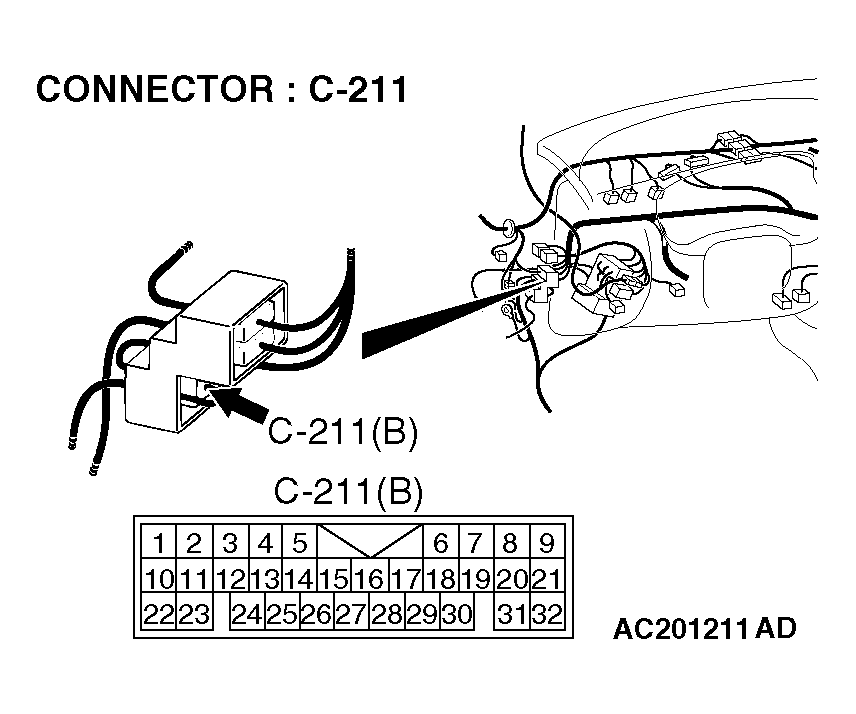

Fig 6: Identifying Radio and CD Player Connector C-211
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 5. Check the door speaker (RH).
1. Remove the door speaker (RH). Refer to REMOVAL AND INSTALLATION .
2. Check that the door speaker (RH) generates noise when a five-volt voltage is applied on the door speaker (RH) terminal.
Q: Is the door speaker (RH) generating noise?

YES : Go to Step 6.

NO: Replace the door speaker (RH). The door speaker (RH) should sound.

Fig 7: Checking Door Speaker
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 6. Check door speaker (RH) connector E-01, radio and CD player connector C-10 and C-11 for damage.
Q: Are door speaker (RH) connector E-01, radio and CD player connector C-10 and C-11 in good condition?

YES : Go to Step 7.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The door speaker (RH) should sound.

Fig 8: Identifying Radio and CD Player Connector C-10 And C-11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Identifying Radio and CD Player Connector E-01
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 7. Check the wiring harnesses between door speaker (RH) connector E-01 (terminal 1) and radio and CD player connector C-10 (terminal 15), and the wiring harness between door speaker (RH) connector E-01 (terminal 2) and radio and CD player connector C-11 (terminal 3).

Fig 10: Identifying Radio and CD Player Connector C-10 And C-11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 11: Identifying Radio and CD Player Connector E-01
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-213. If intermediate connector C-213 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between door speaker (RH) connector E-01 (terminal 1) and radio and CD player connector C-10 (terminal 15), and the wiring harness between door speaker (RH) connector E-01 (terminal 2) and radio and CD player connector C-11 (terminal 3) in good condition?

YES : Repair or replace the radio and CD player. The door speaker (RH) should sound.

NO: Repair the wiring harness(es). The door speaker (RH) should sound.

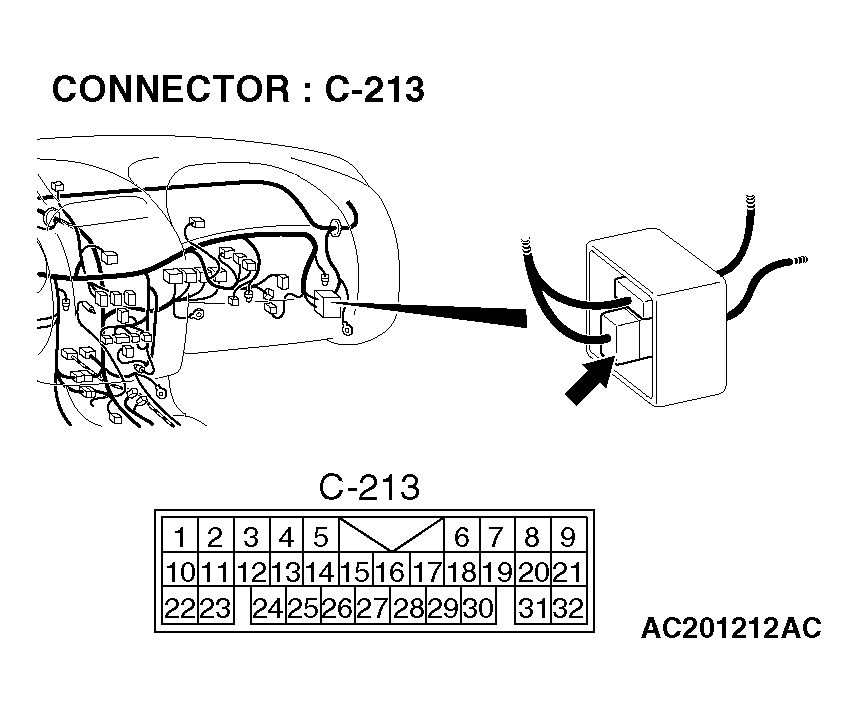

Fig 12: Identifying Radio and CD Player Connector C-213
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 8. Check the rear speaker (LH).
1. Remove the rear speaker (LH). Refer to REMOVAL AND INSTALLATION .
2. heck that the rear speaker (LH) generates noise when a five-volt voltage is applied on the rear speaker (LH) terminal.
Q: Is the rear speaker (LH) generating noise?

YES : Go to Step 9.

NO: Replace the rear speaker (LH). The rear speaker (LH) should sound.

Fig 13: Checking Rear Speaker
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 9. Check rear speaker (LH) connector F-15 and radio and CD player connector C-10 for damage.
Q: Are rear speaker (LH) connector F-15 and radio and CD player connector C-10 in good condition?

YES : Go to Step 10.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The rear speaker (LH) should sound.

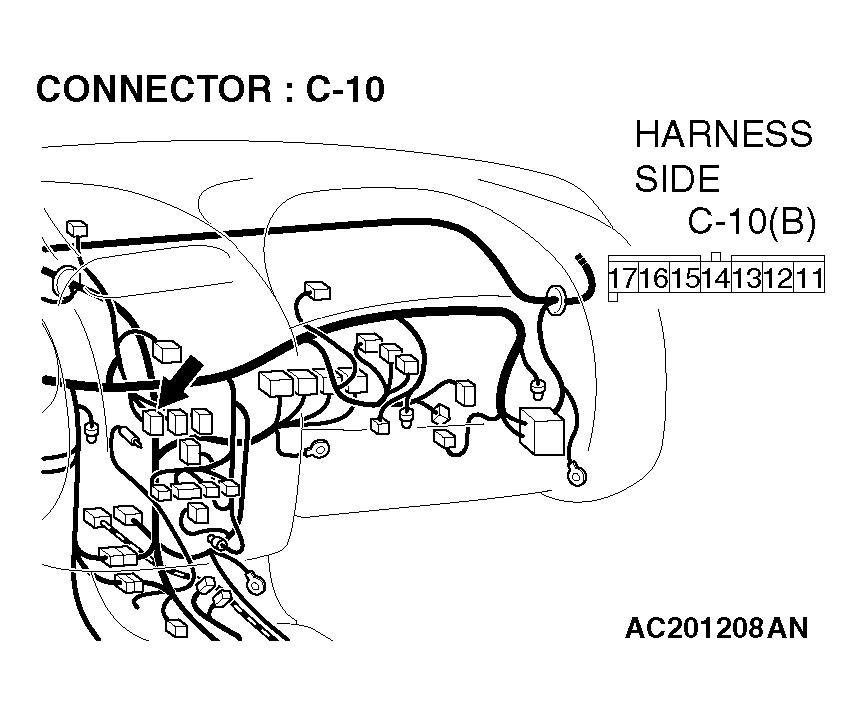

Fig 14: Identifying Radio and CD Player Connector C-10
Courtesy of DAIMLERCHRYSLER CORPORATION

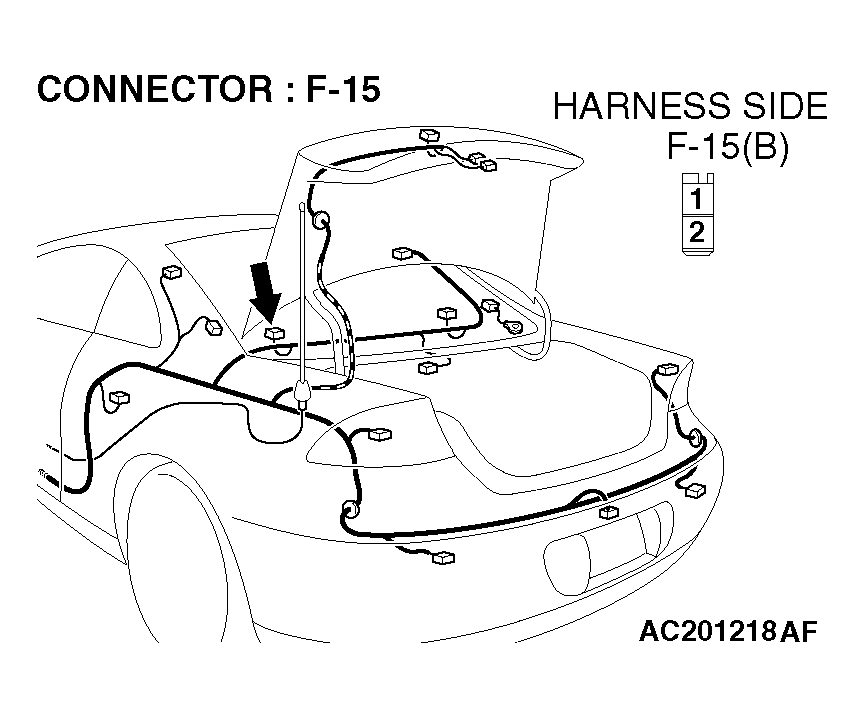

Fig 15: Identifying Radio and CD Player Connector F-15
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 10. Check the wiring harnesses between rear speaker (LH) connector F-15 (terminals 1 and 2) and radio and CD player connector C-10 (terminals 12 and 16).

Fig 16: Identifying Radio and CD Player Connector C-10
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 17: Identifying Radio and CD Player Connector F-15
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-210. If intermediate connector C-210 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between the rear speaker (LH) connector F-15 (terminals 1 and 12) and radio and CD player connector C-10 (terminals 12 and 16) in good condition?

YES : Repair or replace the radio and CD player. The rear speaker (LH) should sound.

NO: Repair the wiring harness(es). The rear speaker (LH) should sound.

Fig 18: Identifying Radio and CD Player Connector C-210
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 11. Check the rear speaker (RH).
1. Remove the rear speaker (RH). Refer to REMOVAL AND INSTALLATION .
2. Check that the rear speaker (RH) generates noise when a five-volt voltage is applied on the rear speaker (RH) terminal.
Q: Is the rear speaker (RH) generating noise?

YES : Go to Step 12.

NO: Replace the rear speaker (RH). The rear speaker (RH) should sound.

Fig 19: Identifying Rear Speaker
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 12. Check rear speaker (RH) connector F-07 and radio and CD player connector C-10 for damage
Q: Are rear speaker connector F-07 and C-10 in good condition?

YES : Go to Step 13.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The rear speaker (RH) should sound.

Fig 20: Identifying Radio and CD Player Connector C-10
Courtesy of DAIMLERCHRYSLER CORPORATION

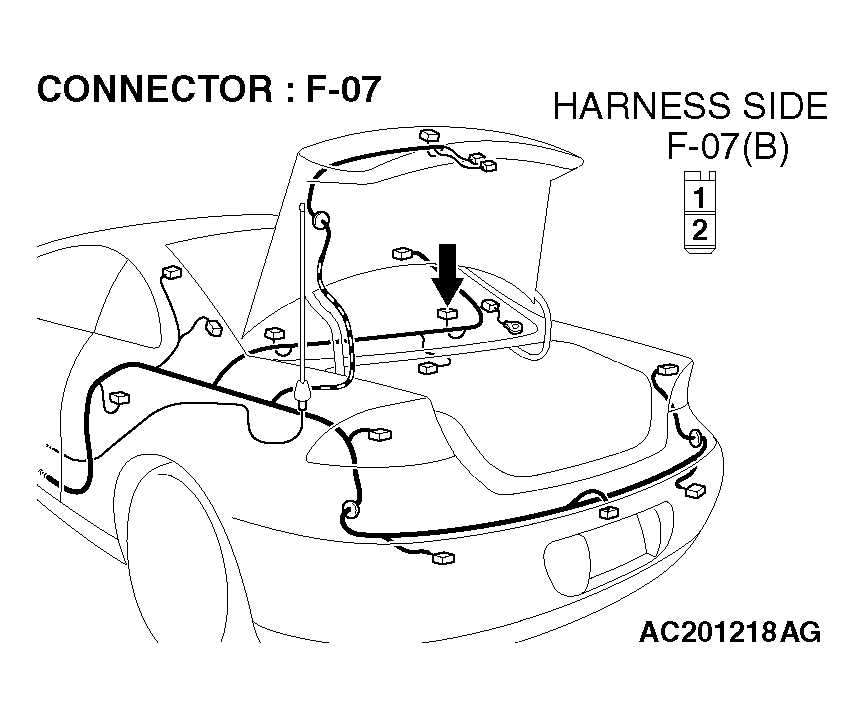

Fig 21: Identifying Radio and CD Player Connector F-07
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 13. Check the wiring harnesses between rear speaker (RH) connector F-07 (terminals 1 and 2) and radio and CD player connector C-10 (terminals 13 and 17).

Fig 22: Identifying Radio and CD Player Connector C-10
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Identifying Radio and CD Player Connector F-07
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-210. If intermediate connector C-210 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between rear speaker (RH) connector F-07 (terminals 1 and 2) and radio and CD player connector C-10 (terminals 13 and 17) in good condition?

YES : Repair or replace the radio and CD player. The rear speaker (RH) should sound.

NO: Repair the wiring harness(es). The rear speaker (RH) should sound.

Fig 24: Identifying Radio and CD Player Connector C-210
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 14. Check the tweeter (LH).
1. Remove the tweeter (LH). Refer to REMOVAL AND INSTALLATION .
2. Check that the tweeter (LH) generates noise when a five-volt voltage is applied on the tweeter (LH) terminal.
Q: Is the tweeter (LH) generating noise?

YES : Go to Step 15.

NO: Replace the tweeter (LH). The tweeter (LH) should sound.

Fig 25: Identifying Speaker
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 15. Check tweeter (LH) connector E-08, radio and CD player connector C-10 and C-11 for damage.
Q: Are tweeter (LH) connector E-08, radio and CD player connector C-10 and C-11 in good condition?

YES : Go to Step 16.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The tweeter (LH) should sound.

Fig 26: Identifying Radio and CD Player Connector C-10 And C-11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 27: Identifying Radio and CD Player Connector E-08
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 16. Check the wiring harnesses between tweeter (LH) connector E-08 (terminal 1) and radio and CD player connector C-11 (terminal 2), and the wiring harness between tweeter (LH) connector E-08 (terminal 2) and radio and CD player connector C-10 (terminal 14).

Fig 28: Identifying Radio and CD Player Connector C-10 And C11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 29: Identifying Radio and CD Player Connector E-08
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-211. If intermediate connector C-211 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between tweeter (LH) connector E-08 (terminal 1) and radio and CD player connector C-11 (terminal 2), and the wiring harness between tweeter (LH) connector E-08 (terminal 2) and radio and CD player connector C-10 (terminal 14) in good condition?

YES : Repair or replace the radio and CD player. The tweeter (LH) should sound.

NO: Repair the wiring harness(es). The tweeter (LH) should sound.

Fig 30: Identifying Radio and CD Player Connector C-211
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 17. Check the tweeter (RH).
1. Remove the tweeter (RH). Refer to REMOVAL AND INSTALLATION .
2. Check that the tweeter (RH) generates noise when a five-volt voltage is applied on the speaker terminal.
Q: Is the tweeter (RH) generating noise

YES : Go to Step 18.

NO: Replace the tweeter (RH). The tweeter (RH) should sound.

Fig 31: Identifying Tweeter
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 18. Check tweeter (RH) connector E-03, radio and CD player connector C-10 and C-11 for damage.
Q: Are tweeter connector E-03, radio and CD player connector C-10 and C-11 in good condition?

YES : Go to Step 19.

NO: Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . The tweeter (RH) should sound.

Fig 32: Identifying Radio and CD Player Connector C-10 And C11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 33: Identifying Radio and CD Player Connector E-03
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 19. Check the wiring harnesses between tweeter (RH) connector E-03 (terminal 1) and radio and CD player connector C-10 (terminal 3), and the wiring harness wires between tweeter (RH) connector E-03 (terminal 2) and radio and CD player connector C-11 (terminal 3).

Fig 34: Identifying Radio and CD Player Connector C-10 And C11
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 35: Identifying Radio and CD Player Connector E-03
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check intermediate connector C-213. If intermediate connector C-213 is damaged, repair or replace the connector as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harnesses between tweeter (RH) connector E-03 (terminal 1) and radio and CD player connector C-10 (terminal 3), and the wiring harness wires between tweeter (RH) connector E-03 (terminal 2) and radio and CD player connector C-11 (terminal 3) in good condition?

YES : Repair or replace the radio and CD player. The tweeter (RH) should sound.

NO: Repair the wiring harness(es). The tweeter (RH) should sound.

Fig 36: Identifying Radio and CD Player Connector C-213
Courtesy of DAIMLERCHRYSLER CORPORATION
