INSPECTION PROCEDURE 1: Power of radio and CD player does not turn ON when the ignition switch is in the "ACC" position or "ON" position.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

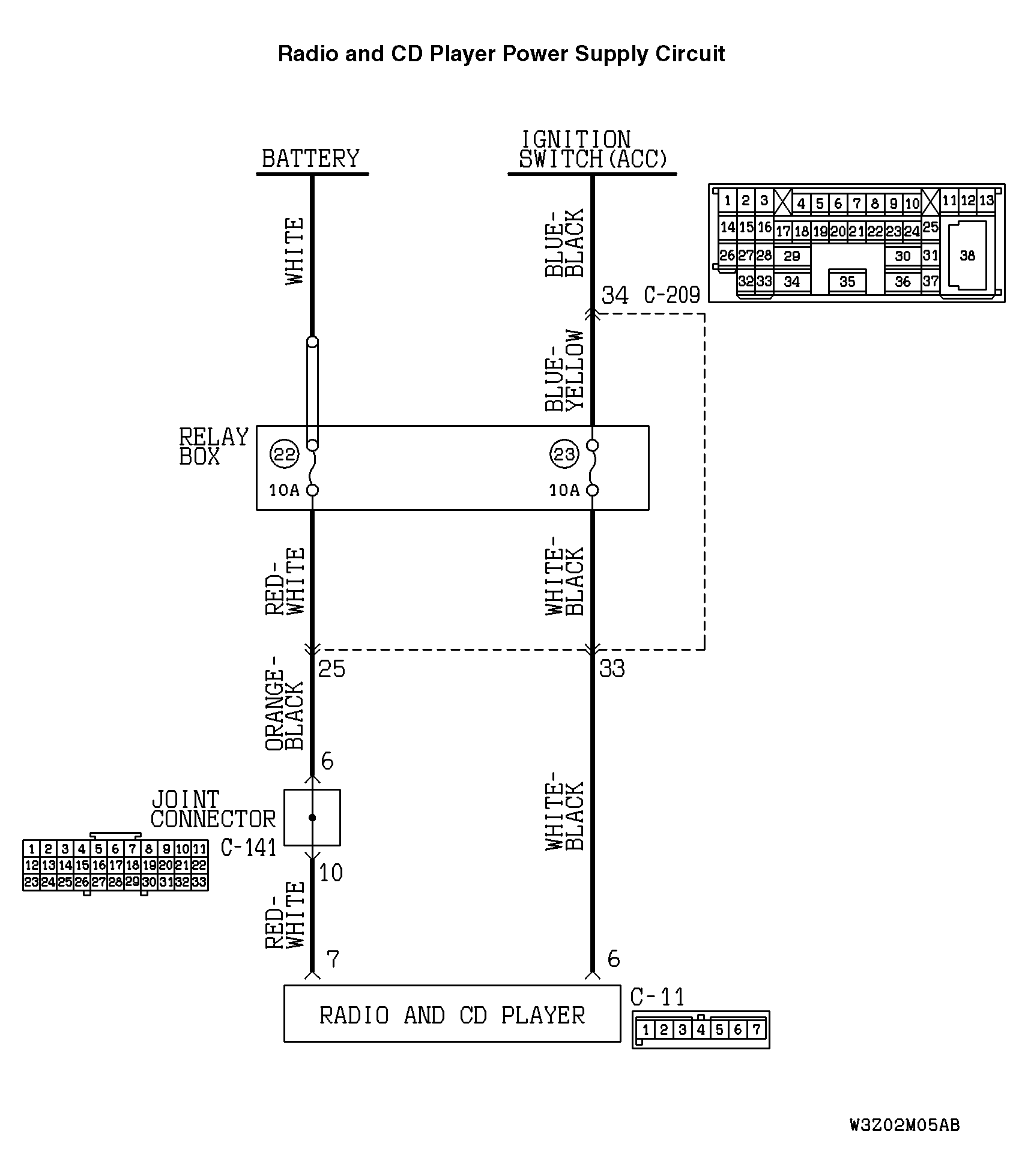

Fig 1: Radio And CD Player Power Supply Circuit Diagram(1 Of 2)
G04537565Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Radio And CD Player Power Supply Circuit Diagram(2 Of 2)
G04537566Courtesy of DAIMLERCHRYSLER CORPORATION
