Removal And Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before removing a seat equipped with the side air bag module, refer to SRS SERVICE PRECAUTIONS .

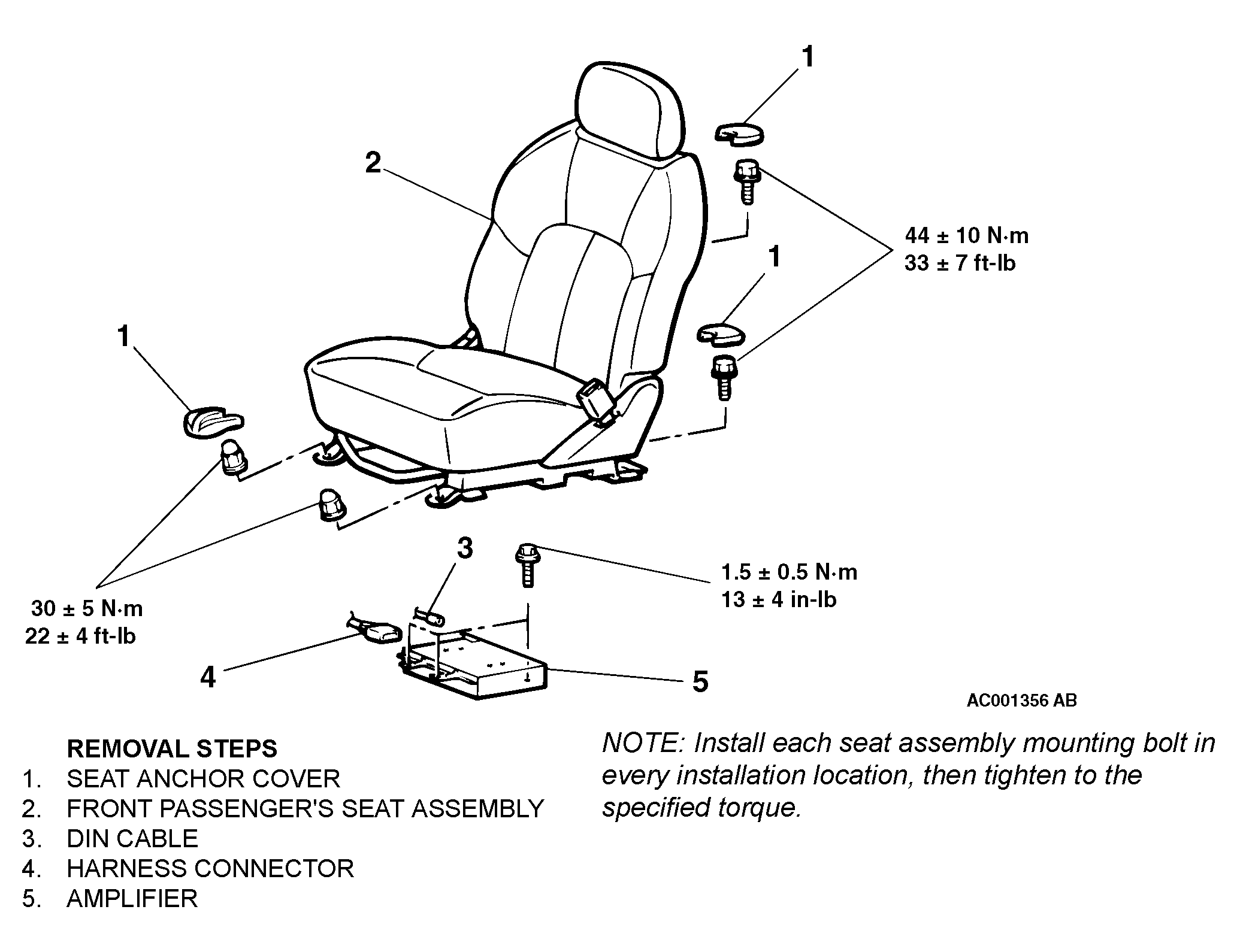

Fig 1: Removing/Installing Seat
G04537685Courtesy of DAIMLERCHRYSLER CORPORATION
