INSPECTION PROCEDURE 3: Radiator Fan and Condenser Fan do not Operate: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

MB991223: Harness Set

  1. STEP 1. Check the fusible link number 2.

    Q: Is the fusible link number 2 good condition?

    YES  : Go to Step 2.

    NO:  Replace it. Go to  Step 13.

  2. STEP 2. Measure the power supply voltage signal at fan control module connector A-30.
    1. Disconnect fan control module connector A-30.
      Fig 1: Disconnecting Fan Control Module Connector A-30
      G04537335Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the voltage between fan control module connector A-30 terminal number 3 and ground.
      • The measured voltage should measure battery positive voltage. (When the ignition switch is turned to "ON" position).
    3. Connect fan control module connector A-30.

    Q: Is the measured voltage battery positive voltage?

    YES  : Go to  Step 8.

    NO:  Go to Step 3.

    Fig 2: Measuring Voltage Between Fan Control Module Connector A-30 Terminal Number 3 And Ground
    G04537336Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the fan control relay.

    Refer to FAN CONTROLLER CHECK  .

    Q: Is the fan control relay in good condition?

    YES  : Go to Step 4.

    NO:  Replace it. Go to  Step 13.

  4. STEP 4. Check fan control relay connector A-09X and fan control module connector A-30 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    YES  : Go to Step 5.

    NO:  Repair or replace the faulty components. (Refer to HARNESS CONNECTOR INSPECTION ). Go to  Step 13.

    Fig 3: Checking Fan Control Relay Connector A-09X
    G04537337Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 4: Checking Fan Control Module Connector A-30
    G04537338Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the harness wires between fusible link (2) and fan control module connector A-30 terminal 3 for damage.

    Q: Are the harness wires between in good condition?

    YES  : It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ). Go to Step 6.

    NO:  Repair the damaged harness wires. Go to  Step 13.

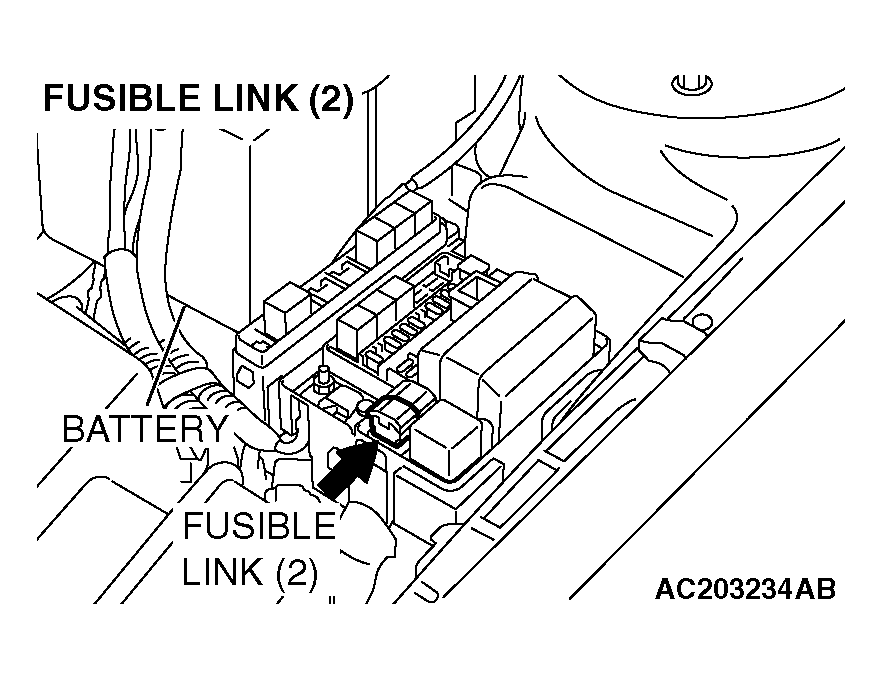

    Fig 5: Checking Fusible Link (2)
    G04537339Courtesy of DAIMLERCHRYSLER CORPORATION

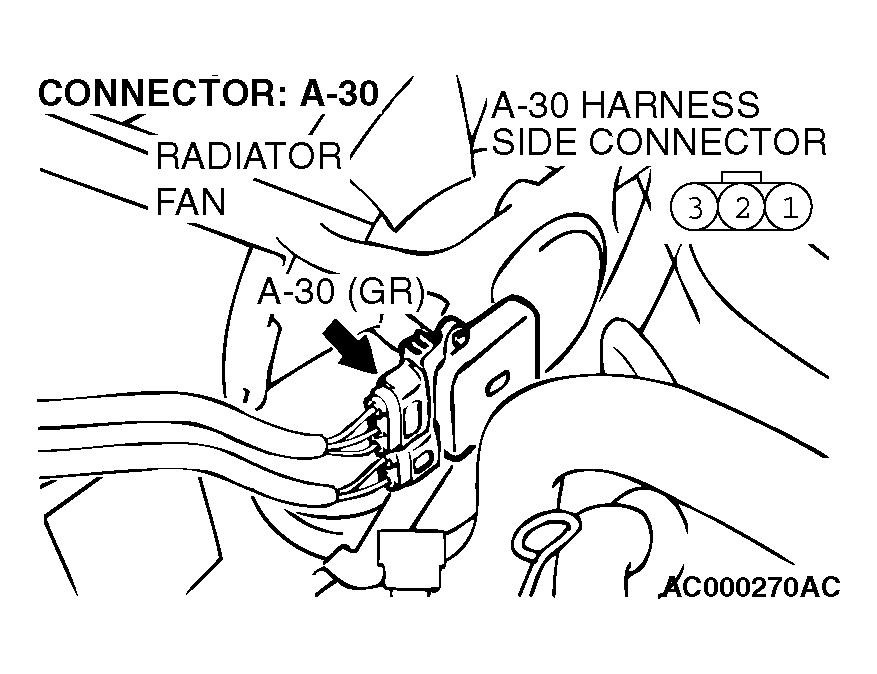

    Fig 6: Checking Fan Control Module Connector A-30
    G04537340Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check fan control relay connector A-09X and intermediate connector C-06 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    YES  : Go to Step 7.

    NO:  Repair or replace the faulty components. (Refer to HARNESS CONNECTOR INSPECTION ). Go to  Step 13.

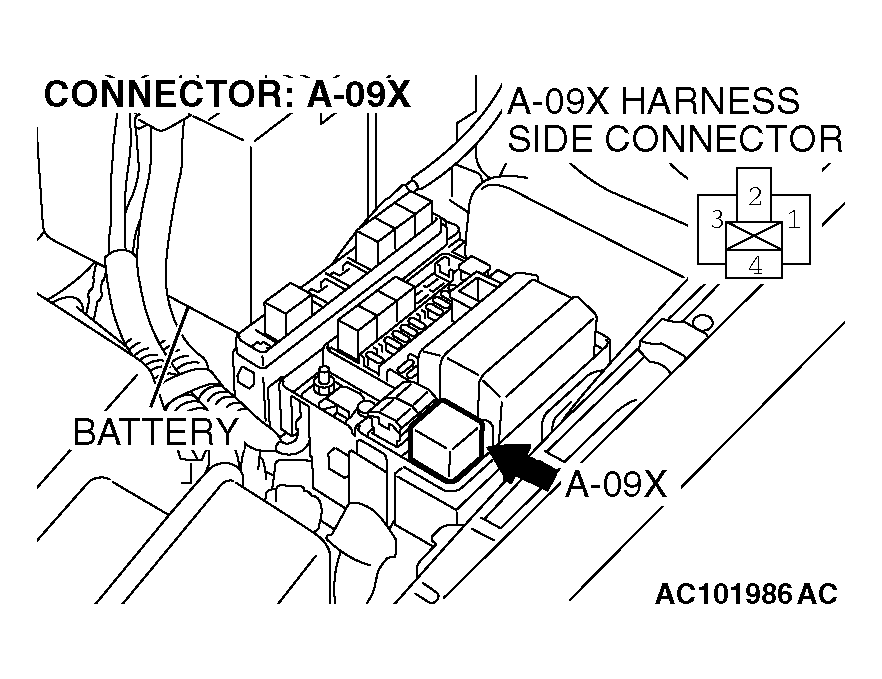

    Fig 7: Checking Fan Control Relay Connector A-09X
    G04537341Courtesy of DAIMLERCHRYSLER CORPORATION

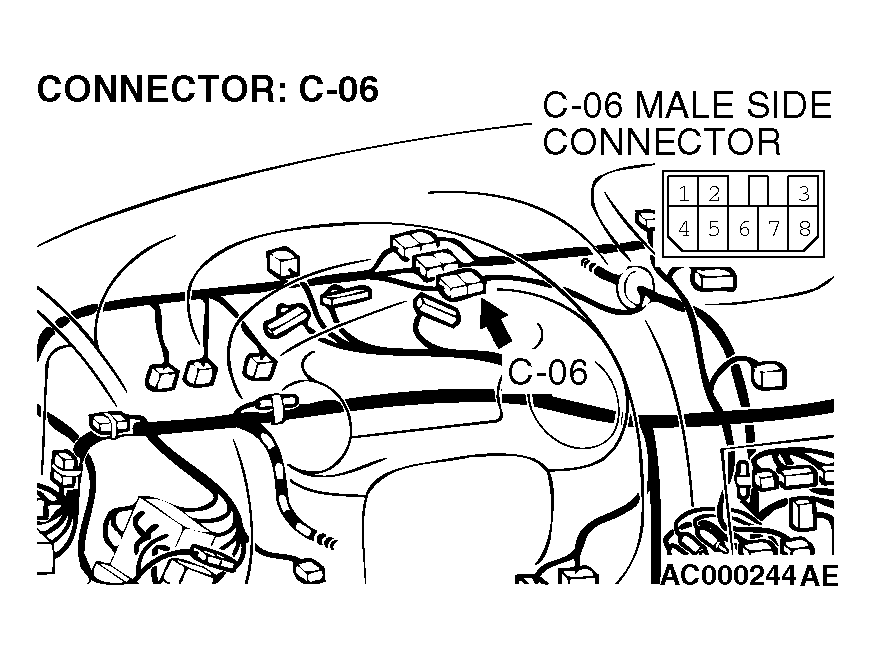

    Fig 8: Checking Intermediate Connector C-06
    G04537342Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the harness wires between MFI relay connector A-18X terminal 4 and grounding point (2) for damage.

    Q: Are the harness wires between in good condition?

    YES  : It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION . Go to  Step 13.

    NO:  Repair the damaged harness wires. Go to  Step 13.

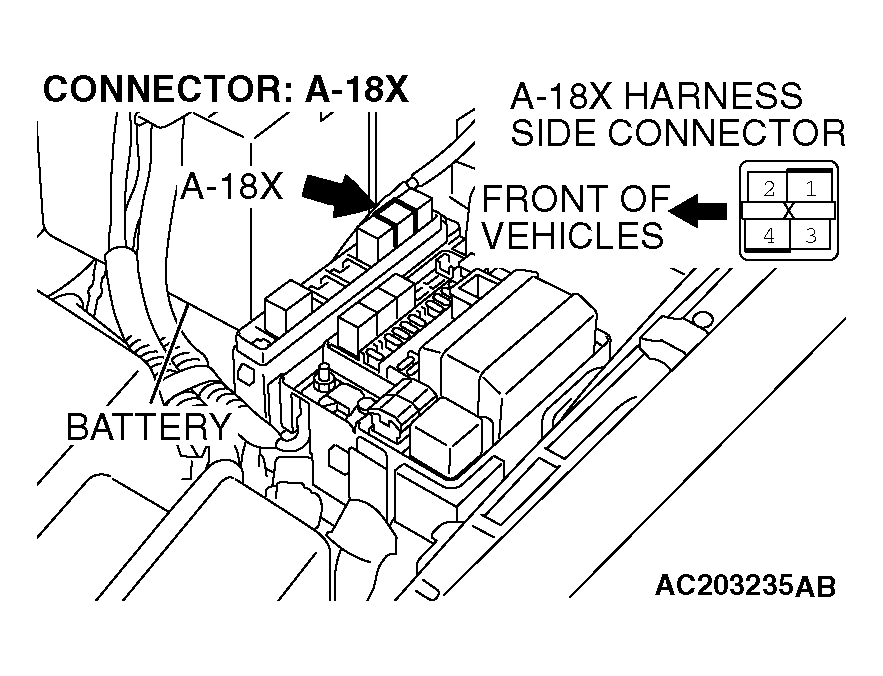

    Fig 9: Checking MFI Relay Connector A-18X
    G04537343Courtesy of DAIMLERCHRYSLER CORPORATION

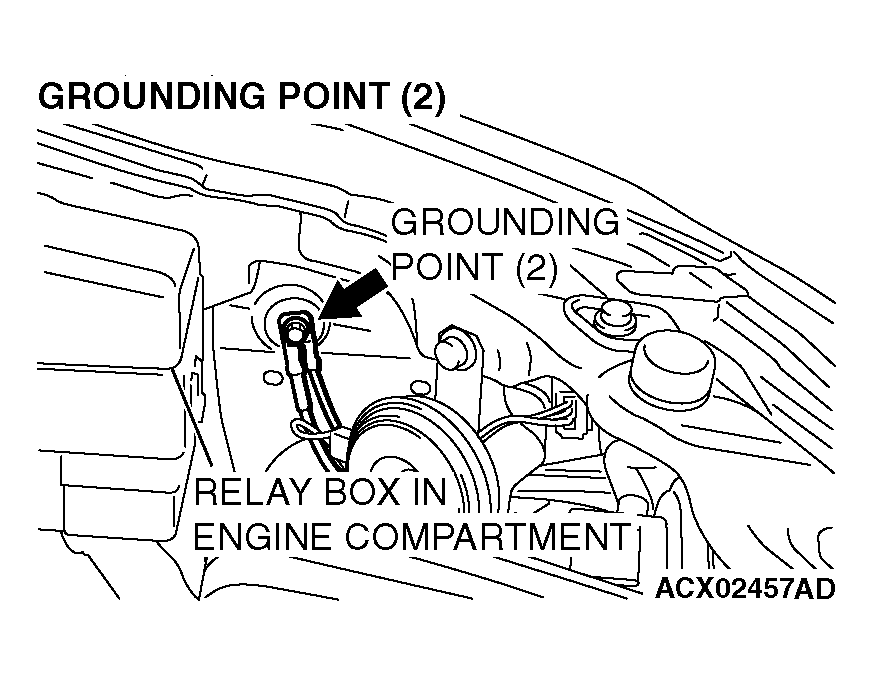

    Fig 10: Checking Grounding Point (2)
    G04537344Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Measure the continuity between fan control module connector A-30 and ground.
    1. Disconnect fan control module connector A-30.
      Fig 11: Disconnecting Fan Control Module Connector A-30
      G04537345Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the resistance between fan control module connector A-30 terminal number 1 and ground.
      • The measured resistance should be less than 2 ohms.
    3. Connect fan control module connector A-30.

    Q: Is the measured resistance less than 2 ohms?

    YES  : Go to  Step 11.

    NO:  Go to Step 9.

    Fig 12: Measuring Resistance Between Fan Control Module Connector A-30 Terminal Number 1 And Ground
    G04537346Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Check fan control module connector A-30 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is the connector and terminals in good condition?

    YES  : Go to Step 10.

    NO:  Repair or replace the faulty components. (Refer to HARNESS CONNECTOR INSPECTION ). Go to  Step 13.

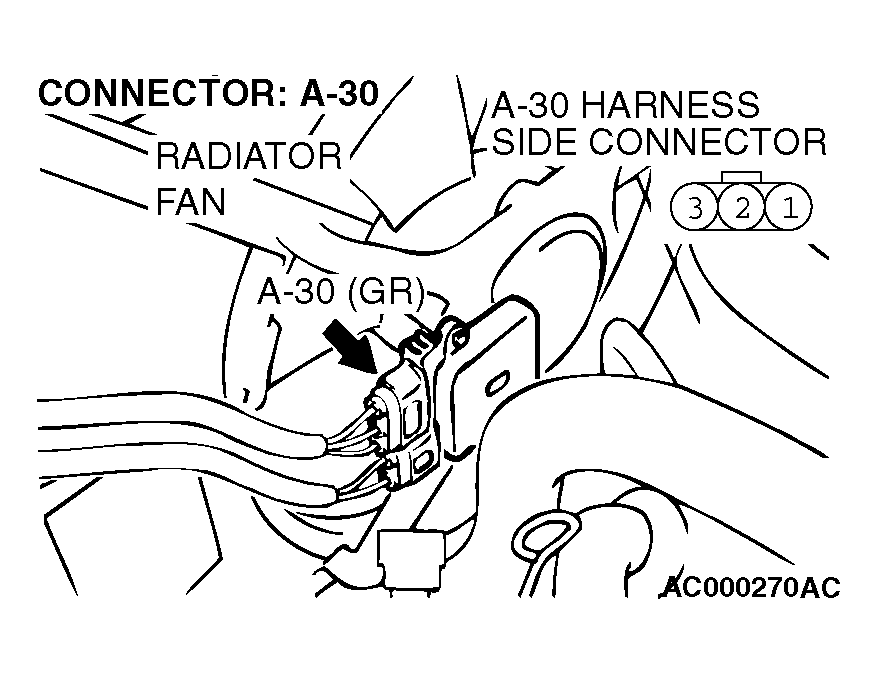

    Fig 13: Checking Fan Control Module Connector A-30
    G04537347Courtesy of DAIMLERCHRYSLER CORPORATION
  10. STEP 10. Check the harness wires between fan control module connector A-30 terminal 1 and grounding point (2) for damage.

    Q: Are the harness wires between in good condition?

    YES  : It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ). Go to  Step 13.

    NO:  Repair the damaged harness wires. Go to  Step 13.

    Fig 14: Checking Fan Control Module Connector A-30
    G04537348Courtesy of DAIMLERCHRYSLER CORPORATION

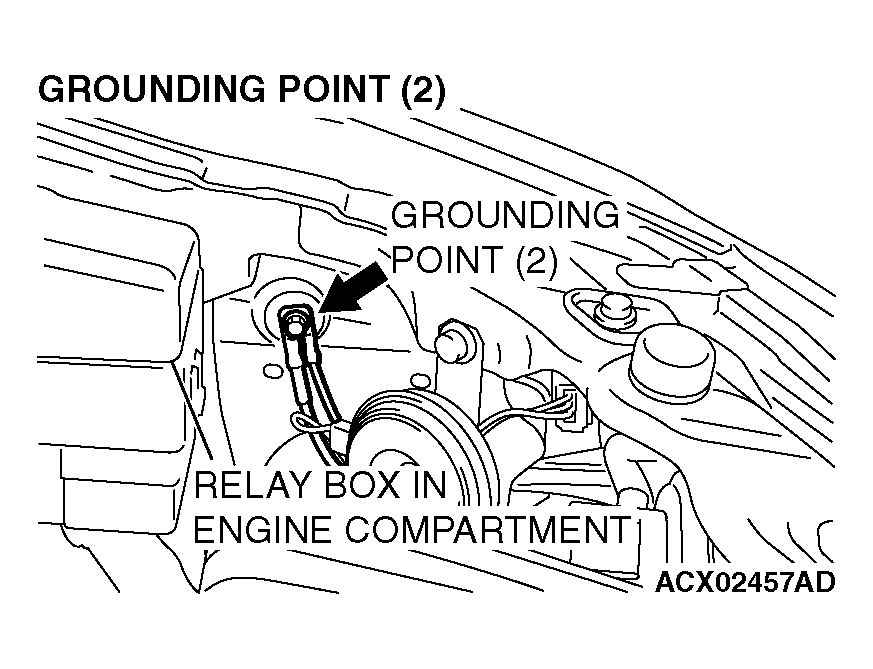

    Fig 15: Checking Grounding Point (2)
    G04537349Courtesy of DAIMLERCHRYSLER CORPORATION
  11. STEP 11. Check fan control module connector A-30, intermediate connector C-06 and ECM connector C-109 < 2.4L-M/T > or C-111 < 3.0L-M/T >, or PCM connector C-110 < 2.4L-A/T > or C-112 < 3.0L-A/T > for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    YES  : Go to Step 12.

    NO:  Repair or replace the faulty components. (Refer to HARNESS CONNECTOR INSPECTION ). Go to  Step 13.

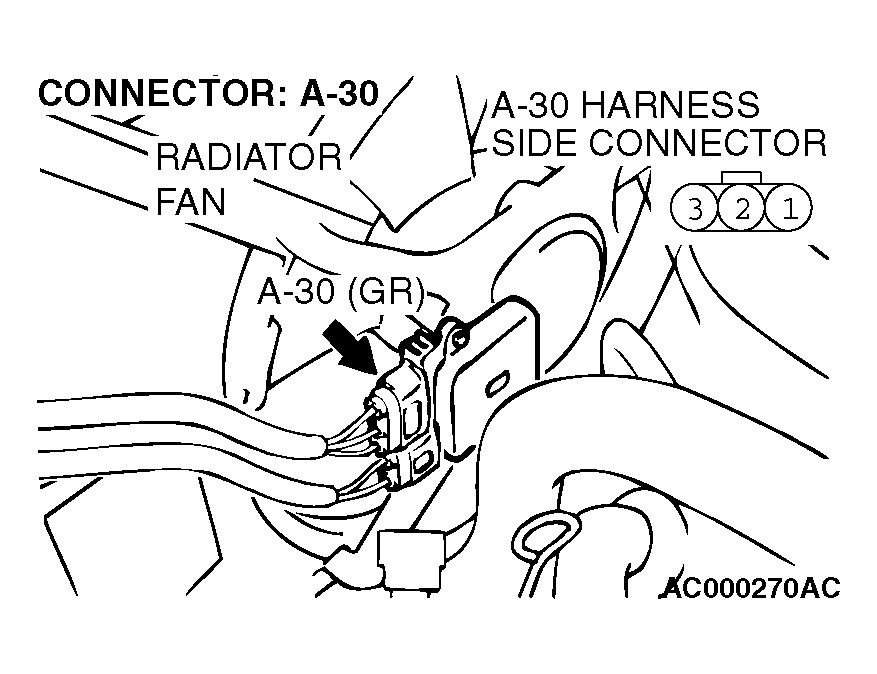

    Fig 16: Checking Fan Control Module Connector A-30
    G04537350Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 17: Checking Intermediate Connector C-06
    G04537351Courtesy of DAIMLERCHRYSLER CORPORATION

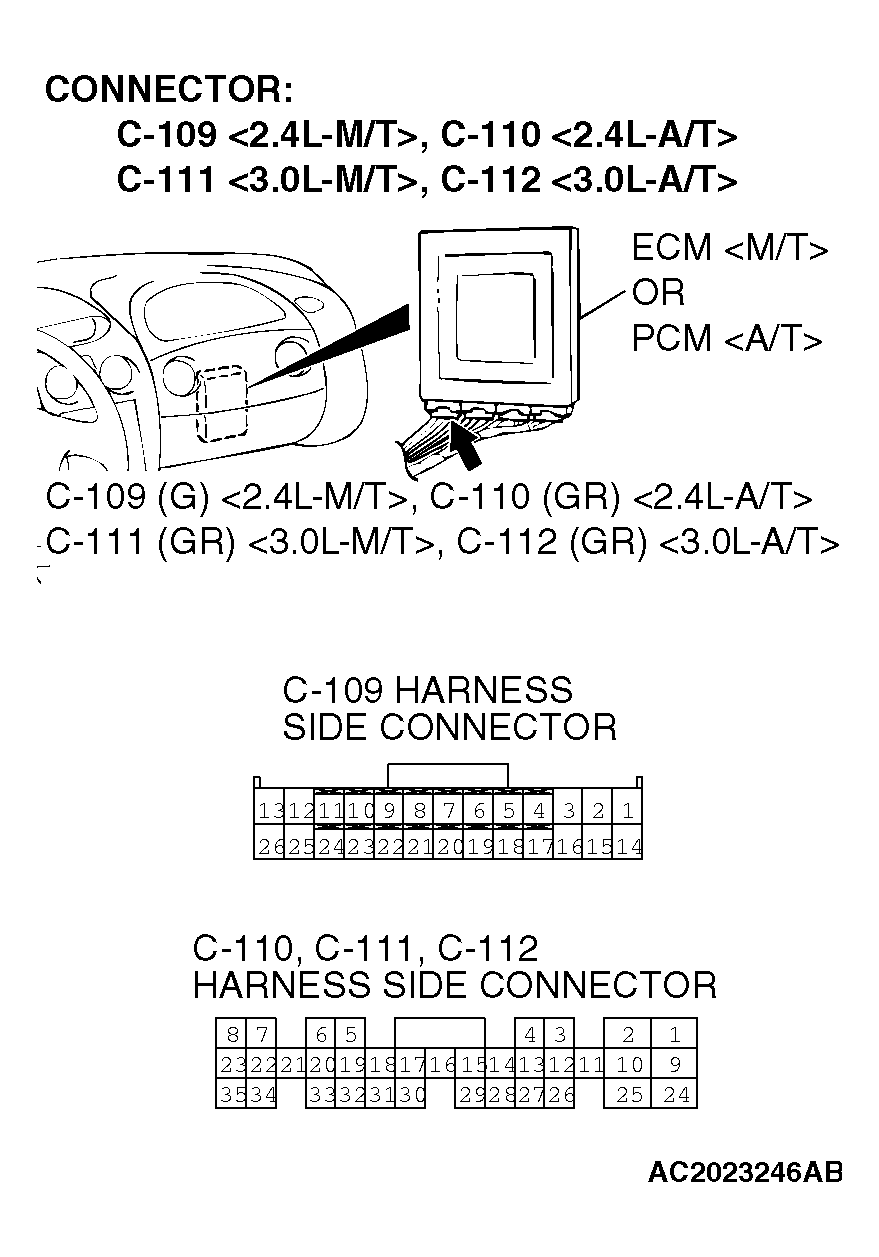

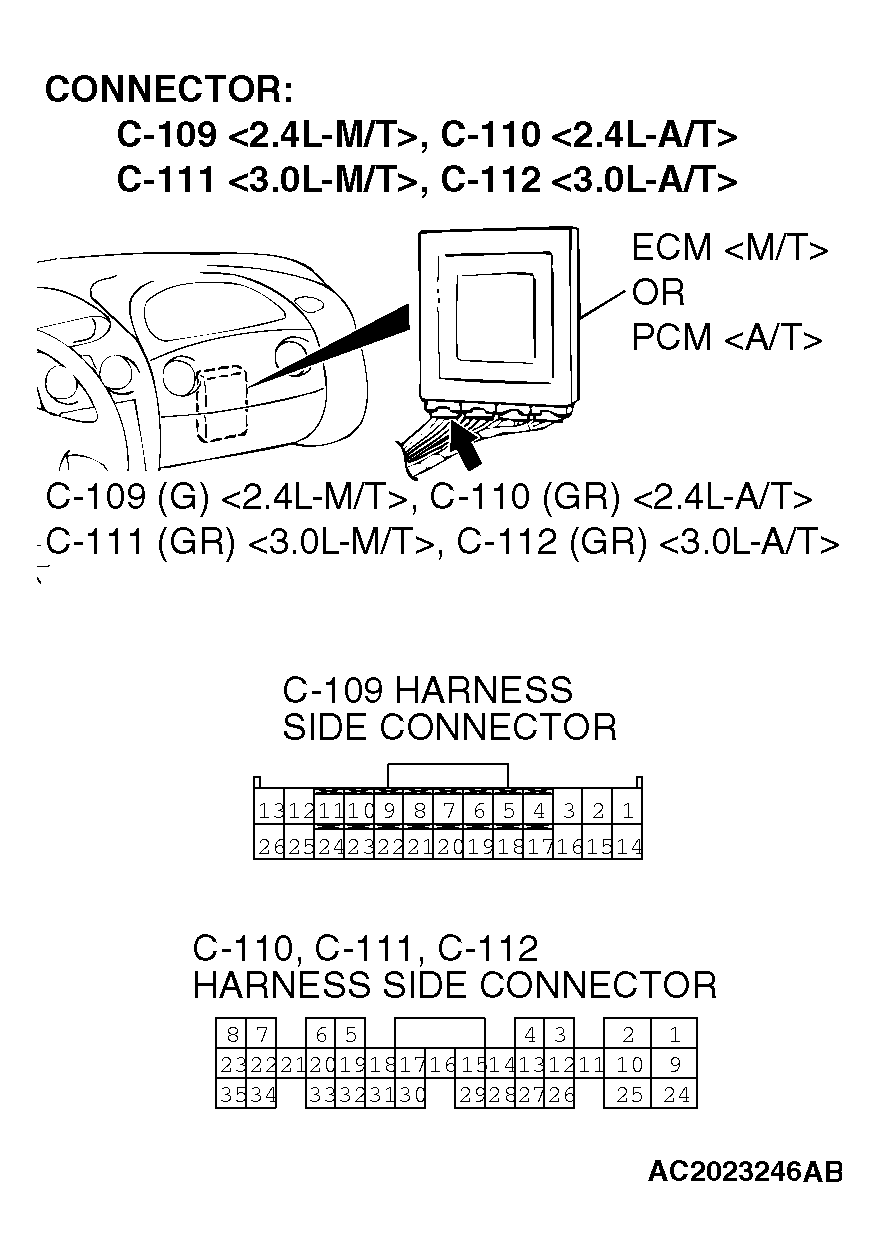

    Fig 18: Checking ECM Connector C-109
    G04537352Courtesy of DAIMLERCHRYSLER CORPORATION
  12. STEP 12. Check the harness wires between fan control module connector A-30 terminal 2 and ECM connector C-109 terminal 21 < 2.4L-M/T > or C-111 terminal 18 < 2.4L-M/T >, or PCM connector C-110 terminal 18 < 2.4L-A/T > or C-112 terminal 18 < 3.0L-A/T > for damage. Q: Are the harness wires between in good condition?

    YES  : Check that the malfunction is eliminated. If the malfunction is eliminated, it can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION ). If the malfunction is not eliminated, replace the fun control module (Refer to RADIATOR  ), then go to Step 13.

    NO:  Repair the damaged harness wires. Go to Step 13.

    Fig 19: Checking Fan Control Module Connector A-30
    G04537353Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 20: Checking ECM Connector C-109
    G04537354Courtesy of DAIMLERCHRYSLER CORPORATION
  13. STEP 13. Retest the system.

    Q: Do the radiator fan and condenser fan operate correctly?

    YES  : The procedure is complete.

    NO:  Replace the ECM < M/T > or PCM < A/T >.
