>> A << Piston Cup/Piston Reassembly

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use alcohol or MOPAR(R) Brake Fluid/Conforming to DOT 3 or DOT 4 to clean the wheel cylinder and the piston.
  2. Apply the MOPAR(R) Brake Fluid/Conforming to DOT 3 or DOT 4 to the piston cups and special tool MB990619.
    CAUTION: In order to keep the piston cup from becoming twisted or slanted, slide the piston cup down special tool MB990619 slowly and carefully, without stopping.
  3. Set the piston cup on special tool MB990619 with the lip of the cup facing up. Fit the cup onto special tool MB990619, and then slide it down the outside of special tool MB990619 into the piston groove.

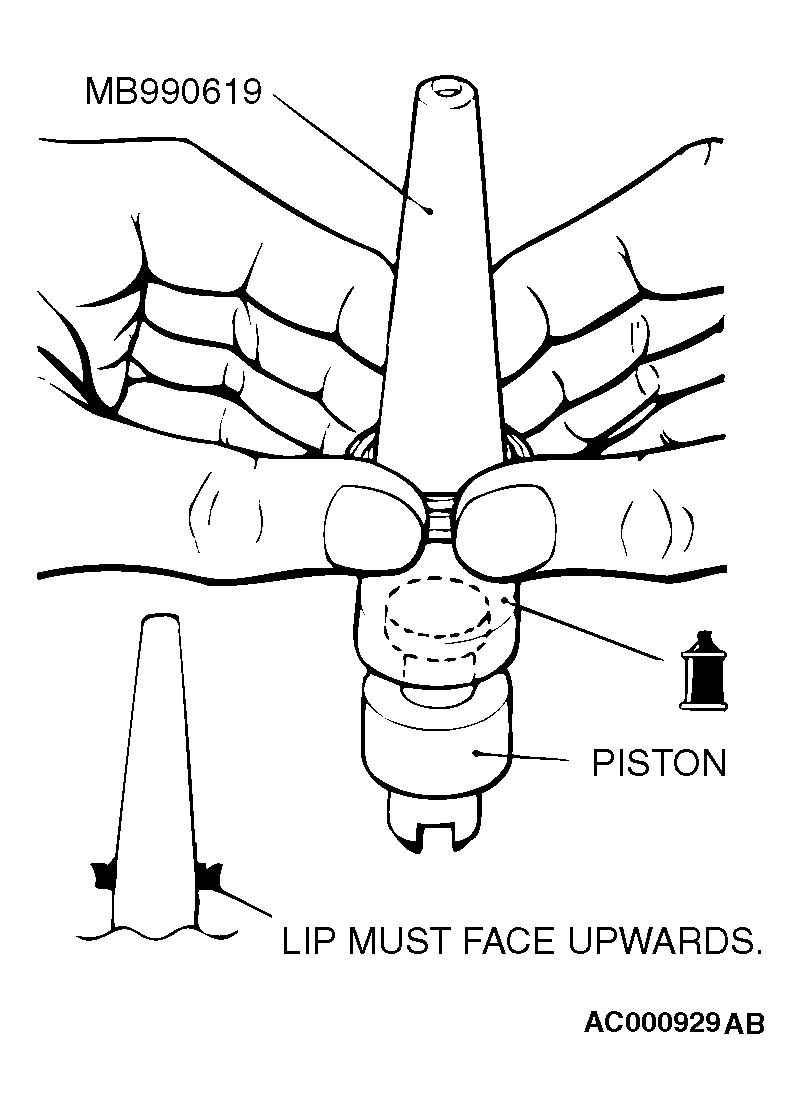

    Fig 1: Setting Piston Cup On Special Tool
    G04537140Courtesy of DAIMLERCHRYSLER CORPORATION
