Stoplight Switch Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect an ohmmeter between the stoplight switch connector terminals.
  2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
    STOPLIGHT SWITCH SPECIFICATION

    TESTER CONNECTION PLUNGER SPECIFIED CONDITION
    1 - 2 IN Open circuit
    OUT Less than 2ohm

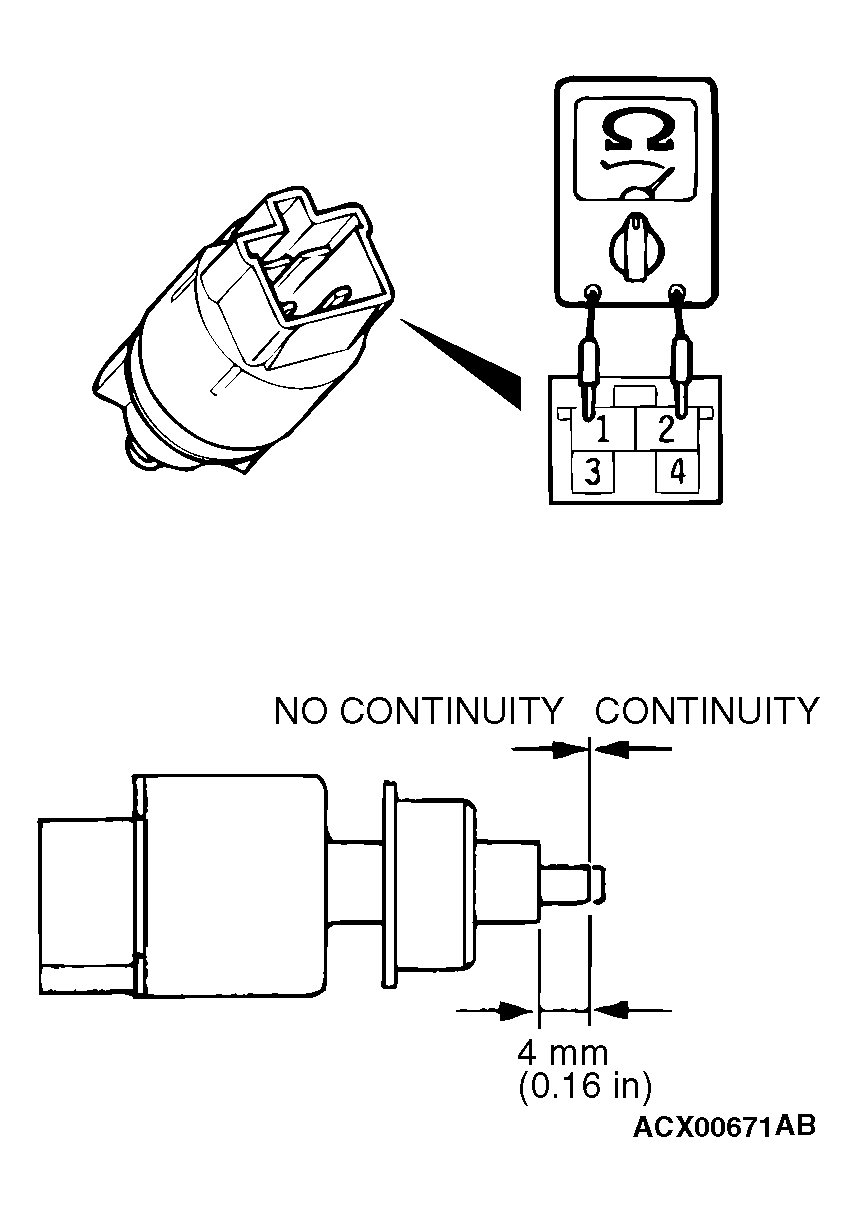

    Fig 1: Connecting Ohmmeter Between Stoplight Switch Connector Terminals
    G04537070Courtesy of DAIMLERCHRYSLER CORPORATION
