Front Disc Brake Run-Out Check And Correction

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the caliper support; then raise the caliper assembly upward and secure it with a wire.
  2. Inspect the disc surface for grooves, cracks and rust. Clean the disc thoroughly and remove all rust.

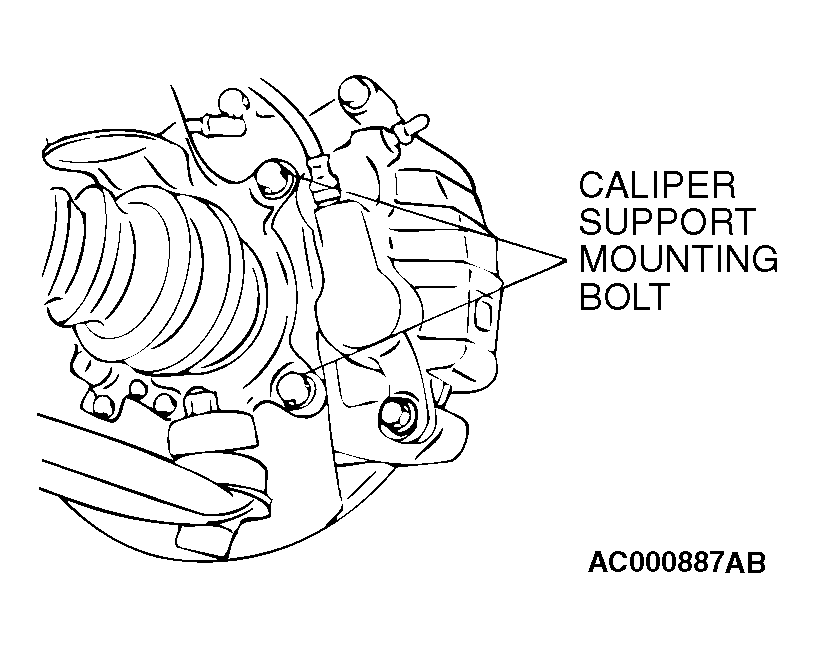

    Fig 1: Removing Caliper Support Mounting Bolts
    G04537087Courtesy of DAIMLERCHRYSLER CORPORATION
  3. Place a dial gauge approximately 5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the run-out of the disc.

    Limit: 0.06 mm (0.002 inch)

  4. If the run-out of the brake disc is limit value or more, turn rotor with an on-car type brake lathe ("Accuturn-8750" or equivalent). If it still exceeds the limit, inspect hub end play.

    Limit: 0.05 mm (0.002 inch)

  5. If the play exceeds the limit, check the hub. If the play does not exceed the limit, replace the brake disc.
    Fig 2: Measuring Run-Out Of Disc
    G04537088Courtesy of DAIMLERCHRYSLER CORPORATION
