Brake Lining And Brake Drum Contact Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake drum.
  2. Remove the shoe and lining assembly. (Refer to REAR DRUM BRAKE  .)
  3. Chalk the inner surface of the brake drum and rub with the shoe and lining assembly.
  4. Replace the shoe and lining assembly or brake drums if there are any irregular contact areas.
    NOTE: Clean off chalk after check.

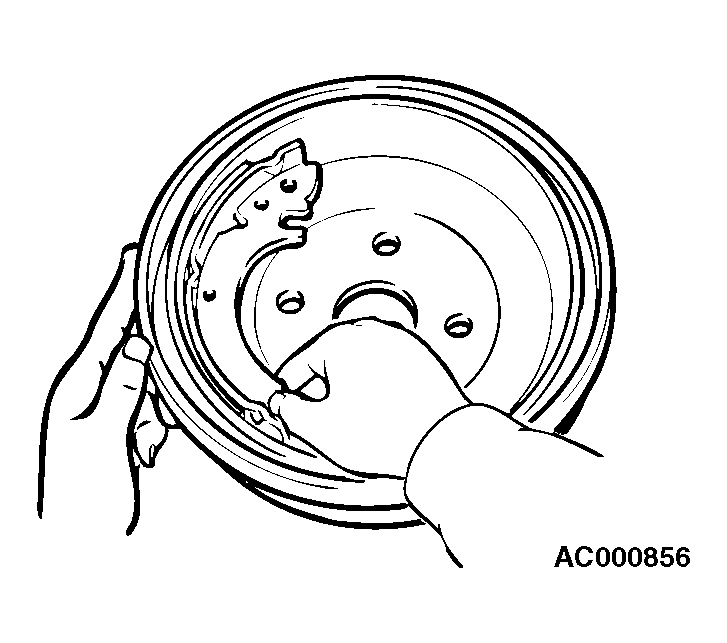

    Fig 1: Removing Shoe And Lining Assembly
    G04537098Courtesy of DAIMLERCHRYSLER CORPORATION
