Auto Adjuster Function Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake drum.
  2. Operate the parking brake lever. Observe adjuster lever movement for ratcheting action of the auto adjuster. Repair or replace the lever(s) as required.
  3. Remove the shoe-to-lever spring.
  4. Remove the adjuster.

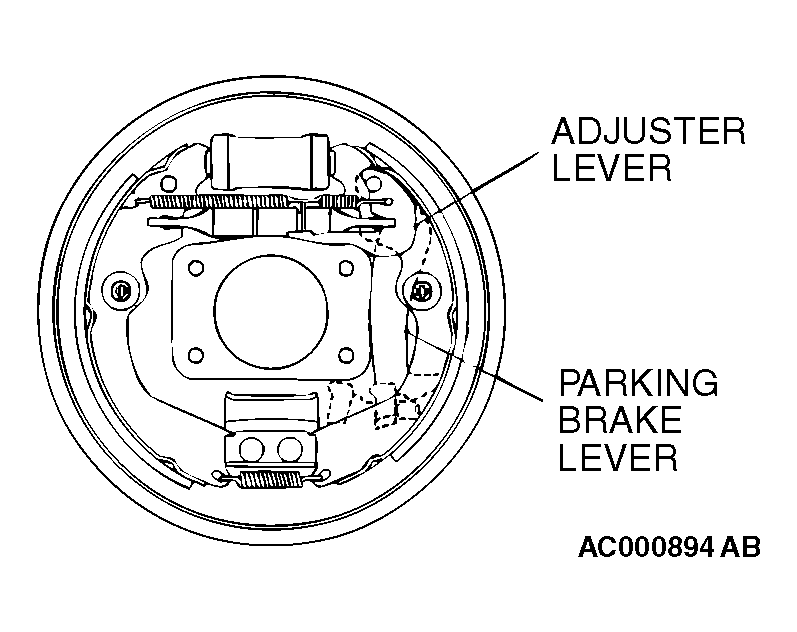

    Fig 1: Removing Adjuster
    G04537100Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: It may be necessary to rotate the adjuster wheel bottom to top to release tension.
  5. Inspect the adjuster wheel for wear, i.e., flat spots, worn teeth, etc. Replace if faulty.
  6. Check both ends of the adjuster for smooth rotation. Replace if faulty.

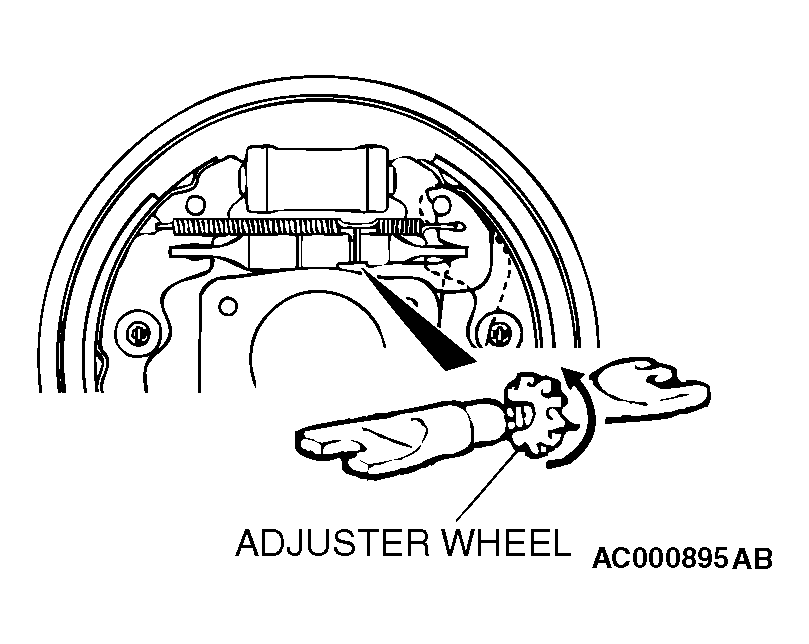

    Fig 2: Checking Adjuster Wheel For Wear
    G04537101Courtesy of DAIMLERCHRYSLER CORPORATION
  7. Apply brake grease MOPAR(R) Multi-mileage Lubrication Part No.2525035 or equivalent as shown.
  8. To install adjuster, assemble the adjuster so it is at its minimum length and insert between shoe and lining assemblies.
  9. Install adjuster lever and shoe-to-lever spring.
  10. Rotate the adjuster wheel top to bottom until the drum has a slight drag when the drum is installed.
    Fig 3: Applying Brake Grease To Adjuster Wheel
    G04537102Courtesy of DAIMLERCHRYSLER CORPORATION
